MBBU-1012-D |
MBBU-1012-D |
MBBU-1012-D |

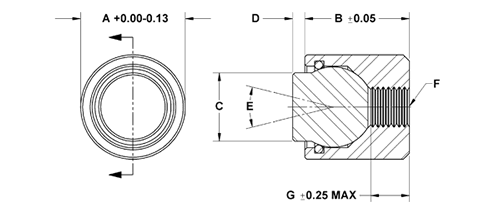

Base Design Swivot - 10 mm Dia X 10.5 mm - Delrin |
1 |
101787 |
CAD |
|
10 | 10.5 | 6 | 1.5 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-D |
MBBU-1012-D-T |
MBBU-1012-D |
MBBU-1012-D-T |
Base Design Swivot - 10 mm Dia X 10.5 mm - Delrin - Tall |
1 |
101796 |
CAD |
|
10 | 10.5 | 6 | 3 | 28 | M4x0.7 | 3.5 | 7 | MBUB-070-D-T |
MBBU-1025-D |
MBBU-1012-D |
MBBU-1025-D |
Base Design Swivot - 10 mm Dia X 23.5 mm - Delrin |
1 |
101856 |
CAD |
|
10 | 23.5 | 6 | 1.5 | 28 | M4x0.7 | 9 | 7 | MBUB-070-D |
MBBU-1025-D-T |
MBBU-1012-D |
MBBU-1025-D-T |
Base Design Swivot - 10 mm Dia X 23.5 mm - Delrin - Tall |
1 |
101858 |
CAD |
|
10 | 23.5 | 6 | 3 | 28 | M4x0.7 | 9 | 7 | MBUB-070-D-T |
MBBU-1316-D |
MBBU-1012-D |
MBBU-1316-D |
Base Design Swivot - 13 mm Dia X 14.5 mm - Delrin |
1 |
101920 |
CAD |
|
13 | 14.5 | 8.5 | 1.5 | 24 | M5x0.8 | 6.5 | 10 | MBUB-100-D |
MBBU-1316-D-T |
MBBU-1012-D |
MBBU-1316-D-T |
Base Design Swivot - 13 mm Dia X 14.5 mm - Delrin - Tall |
1 |
101922 |
CAD |
|
13 | 14.5 | 8.5 | 3 | 24 | M5x0.8 | 6.5 | 10 | MBUB-100-D-T |
MBBU-1325-D |
MBBU-1012-D |
MBBU-1325-D |
Base Design Swivot - 13 mm Dia X 23.5 mm - Delrin |
1 |
101978 |
CAD |
|
13 | 23.5 | 8.5 | 1.5 | 24 | M5x0.8 | 9 | 10 | MBUB-100-D |
MBBU-1325-D-T |
MBBU-1012-D |
MBBU-1325-D-T |
Base Design Swivot - 13 mm Dia X 23.5 mm - Delrin - Tall |
1 |
101984 |
CAD |
|
13 | 23.5 | 8.5 | 3 | 24 | M5x0.8 | 9 | 10 | MBUB-100-D-T |
MBBU-1722-D |
MBBU-1012-D |
MBBU-1722-D |
Base Design Swivot - 17 mm Dia X 18 mm - Delrin |
1 |
102051 |
CAD |
|
17 | 18 | 10 | 4 | 42 | M6x1.0 | 7.5 | 13 | MBUB-130-D |
MBBU-1722-D-T |
MBBU-1012-D |
MBBU-1722-D-T |
Base Design Swivot - 17 mm Dia X 18 mm - Delrin - Tall |
1 |
102053 |
CAD |
|
17 | 18 | 10 | 6 | 42 | M6x1.0 | 7.5 | 13 | MBUB-130-D-T |
MBBU-1924-D |
MBBU-1012-D |
MBBU-1924-D |
Base Design Swivot - 19 mm Dia X 20 mm - Delrin |
1 |
102129 |
CAD |
|
19 | 20 | 12 | 4 | 45 | M8x1.25 | 8.5 | 15 | MBUB-150-D |
MBBU-1924-D-T |
MBBU-1012-D |
MBBU-1924-D-T |
Base Design Swivot - 19 mm Dia X 20 mm - Delrin - Tall |
1 |
102132 |
CAD |
|
19 | 20 | 12 | 6 | 45 | M8x1.25 | 8.5 | 15 | MBUB-150-D-T |
MBBU-2428-D |
MBBU-1012-D |
MBBU-2428-D |
Base Design Swivot - 24 mm Dia X 20 mm - Delrin |
1 |
101837 |
CAD |
|
24 | 24 | 16 | 4 | 40 | M10x1.5 | 9 | 20 | MBUB-200-D |
MBBU-2428-D-T |
MBBU-1012-D |
MBBU-2428-D-T |
Base Design Swivot - 24 mm Dia X 20 mm - Delrin - Tall |
1 |
101839 |
CAD |
|
24 | 24 | 16 | 6 | 40 | M10x1.5 | 9 | 20 | MBUB-200-D-T |
