Base Design Swivots® Gripper Assembly - Flat Delrin Ball - Inch (BBU-D)

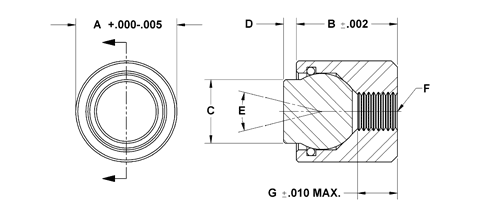

Drawing
Description
Media

Description

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces and is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

BBU-100-D

Base Design Swivot - 3/8 in Dia X 5/16 in - Delrin

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
BBU-100-D	BBU-100-D	BBU-100-D	Base Design Swivot - 3/8 in Dia X 5/16 in - Delrin	1	109171	CAD	3/8	5/16	5/32	1/16	28	#4-40	1/4	3/16	BUB-187-D
BBU-105-D	BBU-100-D	BBU-105-D	Base Design Swivot - 3/8 in Dia X 7/16 in - Delrin	1	101199	CAD	3/8	7/16	5/32	1/16	28	#4-40	5/16	3/16	BUB-187-D
BBU-107-D	BBU-100-D	BBU-107-D	Base Design Swivot - 3/8 in Dia X 11/16 in - Delrin	1	101260	CAD	3/8	11/16	5/32	1/16	28	#4-40	5/16	3/16	BUB-187-D
BBU-200-D	BBU-100-D	BBU-200-D	Base Design Swivot - 7/16 in Dia X 3/8 in - Delrin	1	101340	CAD	7/16	3/8	1/4	1/16	28	#8-32	5/32	9/32	BUB-200-D
BBU-200-D-T	BBU-100-D	BBU-200-D-T	Base Design Swivot - 7/16 in Dia X 3/8 in - Delrin - Tall	1	101343	CAD	7/16	3/8	1/4	1/8	28	#8-32	5/32	9/32	BUB-200-D-T
BBU-201-D	BBU-100-D	BBU-201-D	Base Design Swivot - 7/16 in Dia X 15/16 in - Delrin	1	101415	CAD	7/16	15/16	1/4	1/16	28	#8-32	1/2	9/32	BUB-200-D
BBU-201-D-T	BBU-100-D	BBU-201-D-T	Base Design Swivot - 7/16 in Dia X 15/16 in - Delrin - Tall	1	101419	CAD	7/16	15/16	1/4	1/8	28	#8-32	1/2	9/32	BUB-200-D-T
BBU-300-D	BBU-100-D	BBU-300-D	Base Design Swivot - 1/2 in Dia X 1/2 in - Delrin	1	101458	CAD	1/2	1/2	5/16	1/16	28	#10-32	5/32	3/8	BUB-300-D
BBU-300-D-T	BBU-100-D	BBU-300-D-T	Base Design Swivot - 1/2 in Dia X 1/2 in - Delrin - Tall	1	101468	CAD	1/2	1/2	5/16	1/8	28	#10-32	5/32	3/8	BUB-300-D-T
BBU-301-D	BBU-100-D	BBU-301-D	Base Design Swivot - 1/2 in Dia X 1 in - Delrin	1	101510	CAD	1/2	1	5/16	1/16	28	#10-32	5/8	3/8	BUB-300-D
BBU-301-D-T	BBU-100-D	BBU-301-D-T	Base Design Swivot - 1/2 in Dia X 1 in - Delrin - Tall	1	101522	CAD	1/2	1	5/16	1/8	28	#10-32	5/8	3/8	BUB-300-D-T
BBU-500-D	BBU-100-D	BBU-500-D	Base Design Swivot - 5/8 in Dia X 3/4 in - Delrin	1	101590	CAD	5/8	3/4	3/8	1/8	40	1/4-28	1/4	1/2	BUB-500-D
BBU-500-D-T	BBU-100-D	BBU-500-D-T	Base Design Swivot - 5/8 in Dia X 3/4 in - Delrin - Tall	1	101594	CAD	5/8	3/4	3/8	1/4	40	1/4-28	1/4	1/2	BUB-500-D-T
BBU-600-D	BBU-100-D	BBU-600-D	Base Design Swivot - 13/16 in Dia X 7/8 in - Delrin	1	101651	CAD	13/16	7/8	1/2	1/8	40	5/16-24	11/32	5/8	BUB-600-D
BBU-600-D-T	BBU-100-D	BBU-600-D-T	Base Design Swivot - 13/16 in Dia X 7/8 in - Delrin - Tall	1	101660	CAD	13/16	7/8	1/2	1/4	40	5/16-24	11/32	5/8	BUB-600-D-T
BBU-700-D	BBU-100-D	BBU-700-D	Base Design Swivot - 15/16 in Dia X 7/8 in - Delrin	1	101718	CAD	15/16	7/8	5/8	1/8	34	3/8-24	9/32	3/4	BUB-700-D
BBU-700-D-T	BBU-100-D	BBU-700-D-T	Base Design Swivot - 15/16 in Dia X 7/8 in - Delrin - Tall	1	101719	CAD	15/16	7/8	5/8	1/4	34	3/8-24	9/32	3/4	BUB-700-D-T
