Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Inch (TBU-D)

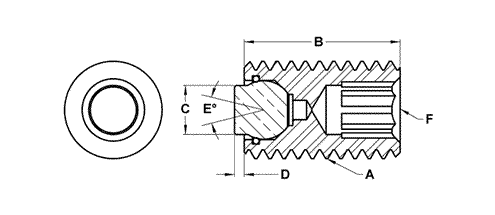

Drawing
Description
Media

Description

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

TBU-0370-D

Threaded Design Swivot - 3/8-16 X 1/2 - Delrin

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7
TBU-0370-D	TBU-0230-D	TBU-0370-D	Threaded Design Swivot - 3/8-16 X 1/2 - Delrin	1	103383	CAD	3/8-16	1/2	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0375-D	TBU-0230-D	TBU-0375-D	Threaded Design Swivot - 3/8-16 X 1 - Delrin	1	101890	CAD	3/8-16	1	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0375X2-D	TBU-0230-D	TBU-0375X2-D	Threaded Design Swivot - 3/8-16 X 2 - Delrin	1	101974	CAD	3/8-16	2	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0375X3-D	TBU-0230-D	TBU-0375X3-D	Threaded Design Swivot - 3/8-16 X 3 - Delrin	1	102067	CAD	3/8-16	3	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0230-D	TBU-0230-D	TBU-0230-D	Threaded Design Swivot - 3/8-24 X 1/2 - Delrin	1	103171	CAD	3/8-24	1/2	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0231-D	TBU-0230-D	TBU-0231-D	Threaded Design Swivot - 3/8-24 X 1 - Delrin	1	103217	CAD	3/8-24	1	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0231X2-D	TBU-0230-D	TBU-0231X2-D	Threaded Design Swivot - 3/8-24 X 2 - Delrin	1	103279	CAD	3/8-24	2	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0231X3-D	TBU-0230-D	TBU-0231X3-D	Threaded Design Swivot - 3/8-24 X 3 - Delrin	1	103331	CAD	3/8-24	3	5/32	1/16	28	3/16	3/16	BUB-187-D
TBU-0513-D	TBU-0230-D	TBU-0513-D	Threaded Design Swivot - 1/2-13 X 3/4 - Delrin	1	102817	CAD	1/2-13	3/4	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0513-D-T	TBU-0230-D	TBU-0513-D-T	Threaded Design Swivot - 1/2-13 X 3/4 - Delrin - Tall	1	102832	CAD	1/2-13	3/4	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0510-D	TBU-0230-D	TBU-0510-D	Threaded Design Swivot - 1/2-13 X 1 - Delrin	1	102541	CAD	1/2-13	1	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0510-D-T	TBU-0230-D	TBU-0510-D-T	Threaded Design Swivot - 1/2-13 X 1 - Delrin - Tall	1	102548	CAD	1/2-13	1	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0510X2-D	TBU-0230-D	TBU-0510X2-D	Threaded Design Swivot - 1/2-13 X 2 - Delrin	1	102644	CAD	1/2-13	2	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0510X2-D-T	TBU-0230-D	TBU-0510X2-D-T	Threaded Design Swivot - 1/2-13 X 2 - Delrin - Tall	1	102649	CAD	1/2-13	2	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0510X3-D	TBU-0230-D	TBU-0510X3-D	Threaded Design Swivot - 1/2-13 X 3 - Delrin	1	102734	CAD	1/2-13	3	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0510X3-D-T	TBU-0230-D	TBU-0510X3-D-T	Threaded Design Swivot - 1/2-13 X 3 - Delrin - Tall	1	102736	CAD	1/2-13	3	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0503-D	TBU-0230-D	TBU-0503-D	Threaded Design Swivot - 1/2-20 X 3/4 - Delrin	1	102447	CAD	1/2-20	3/4	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0503-D-T	TBU-0230-D	TBU-0503-D-T	Threaded Design Swivot - 1/2-20 X 3/4 - Delrin - Tall	1	102449	CAD	1/2-20	3/4	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0500-D	TBU-0230-D	TBU-0500-D	Threaded Design Swivot - 1/2-20 X 1 - Delrin	1	102143	CAD	1/2-20	1	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0500-D-T	TBU-0230-D	TBU-0500-D-T	Threaded Design Swivot - 1/2-20 X 1 - Delrin - Tall	1	102164	CAD	1/2-20	1	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0500X2-D	TBU-0230-D	TBU-0500X2-D	Threaded Design Swivot - 1/2-20 X 2 - Delrin	1	102240	CAD	1/2-20	2	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0500X2-D-T	TBU-0230-D	TBU-0500X2-D-T	Threaded Design Swivot - 1/2-20 X 2 - Delrin - Tall	1	102242	CAD	1/2-20	2	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0500X3-D	TBU-0230-D	TBU-0500X3-D	Threaded Design Swivot - 1/2-20 X 3 - Delrin	1	102343	CAD	1/2-20	3	1/4	1/16	28	1/4	9/32	BUB-200-D
TBU-0500X3-D-T	TBU-0230-D	TBU-0500X3-D-T	Threaded Design Swivot - 1/2-20 X 3 - Delrin - Tall	1	102347	CAD	1/2-20	3	1/4	1/8	28	1/4	9/32	BUB-200-D-T
TBU-0625-D	TBU-0230-D	TBU-0625-D	Threaded Design Swivot - 5/8-11 X 1 - Delrin	1	103202	CAD	5/8-11	1	5/16	1/16	28	5/16	3/8	BUB-300-D
TBU-0625-D-T	TBU-0230-D	TBU-0625-D-T	Threaded Design Swivot - 5/8-11 X 1 - Delrin - Tall	1	103208	CAD	5/8-11	1	5/16	1/8	28	5/16	3/8	BUB-300-D-T
TBU-0625X2-D	TBU-0230-D	TBU-0625X2-D	Threaded Design Swivot - 5/8-11 X 2 - Delrin	1	103327	CAD	5/8-11	2	5/16	1/16	28	5/16	3/8	BUB-300-D
TBU-0625X2-D-T	TBU-0230-D	TBU-0625X2-D-T	Threaded Design Swivot - 5/8-11 X 2 - Delrin - Tall	1	103330	CAD	5/8-11	2	5/16	1/8	28	5/16	3/8	BUB-300-D-T
TBU-0625X3-D	TBU-0230-D	TBU-0625X3-D	Threaded Design Swivot - 5/8-11 X 3 - Delrin	1	103417	CAD	5/8-11	3	5/16	1/16	28	5/16	3/8	BUB-300-D
TBU-0625X3-D-T	TBU-0230-D	TBU-0625X3-D-T	Threaded Design Swivot - 5/8-11 X 3 - Delrin - Tall	1	103428	CAD	5/8-11	3	5/16	1/8	28	5/16	3/8	BUB-300-D-T
TBU-0620-D	TBU-0230-D	TBU-0620-D	Threaded Design Swivot - 5/8-18 X 1 - Delrin	1	102915	CAD	5/8-18	1	5/16	1/16	28	5/16	3/8	BUB-300-D
TBU-0620-D-T	TBU-0230-D	TBU-0620-D-T	Threaded Design Swivot - 5/8-18 X 1 - Delrin - Tall	1	102917	CAD	5/8-18	1	5/16	1/8	28	5/16	3/8	BUB-300-D-T
TBU-0620X2-D	TBU-0230-D	TBU-0620X2-D	Threaded Design Swivot - 5/8-18 X 2 - Delrin	1	102980	CAD	5/8-18	2	5/16	1/16	28	5/16	3/8	BUB-300-D
TBU-0620X2-D-T	TBU-0230-D	TBU-0620X2-D-T	Threaded Design Swivot - 5/8-18 X 2 - Delrin - Tall	1	102984	CAD	5/8-18	2	5/16	1/8	28	5/16	3/8	BUB-300-D-T
TBU-0620X3-D	TBU-0230-D	TBU-0620X3-D	Threaded Design Swivot - 5/8-18 X 3 - Delrin	1	103106	CAD	5/8-18	3	5/16	1/16	28	5/16	3/8	BUB-300-D
TBU-0620X3-D-T	TBU-0230-D	TBU-0620X3-D-T	Threaded Design Swivot - 5/8-18 X 3 - Delrin - Tall	1	103116	CAD	5/8-18	3	5/16	1/8	28	5/16	3/8	BUB-300-D-T
TBU-0755-D	TBU-0230-D	TBU-0755-D	Threaded Design Swivot - 3/4-10 X 1 - Delrin	1	102346	CAD	3/4-10	1	3/8	1/8	40	3/8	1/2	BUB-500-D
TBU-0755-D-T	TBU-0230-D	TBU-0755-D-T	Threaded Design Swivot - 3/4-10 X 1 - Delrin	1	102358	CAD	3/4-10	1	3/8	1/4	40	3/8	1/2	BUB-500-D-T
TBU-0755X2-D	TBU-0230-D	TBU-0755X2-D	Threaded Design Swivot - 3/4-10 X 2 - Delrin	1	102475	CAD	3/4-10	2	3/8	1/8	40	3/8	1/2	BUB-500-D
TBU-0755X2-D-T	TBU-0230-D	TBU-0755X2-D-T	Threaded Design Swivot - 3/4-10 X 2 - Delrin - Tall	1	102480	CAD	3/4-10	2	3/8	1/4	40	3/8	1/2	BUB-500-D-T
TBU-0755X3-D	TBU-0230-D	TBU-0755X3-D	Threaded Design Swivot - 3/4-10 X 3 - Delrin	1	102599	CAD	3/4-10	3	3/8	1/8	40	3/8	1/2	BUB-500-D
TBU-0755X3-D-T	TBU-0230-D	TBU-0755X3-D-T	Threaded Design Swivot - 3/4-10 X 3 - Delrin - Tall	1	102601	CAD	3/4-10	3	3/8	1/4	40	3/8	1/2	BUB-500-D-T
TBU-0750-D	TBU-0230-D	TBU-0750-D	Threaded Design Swivot - 3/4-16 X 1 - Delrin	1	102001	CAD	3/4-16	1	3/8	1/8	40	3/8	1/2	BUB-500-D
TBU-0750-D-T	TBU-0230-D	TBU-0750-D-T	Threaded Design Swivot - 3/4-16 X 1 - Delrin - Tall	1	102005	CAD	3/4-16	1	3/8	1/4	40	3/8	1/2	BUB-500-D-T
TBU-0750X2-D	TBU-0230-D	TBU-0750X2-D	Threaded Design Swivot - 3/4-16 X 2 - Delrin	1	102124	CAD	3/4-16	2	3/8	1/8	40	3/8	1/2	BUB-500-D
TBU-0750X2-D-T	TBU-0230-D	TBU-0750X2-D-T	Threaded Design Swivot - 3/4-16 X 2 - Delrin - Tall	1	102126	CAD	3/4-16	2	3/8	1/4	40	3/8	1/2	BUB-500-D-T
TBU-0750X3-D	TBU-0230-D	TBU-0750X3-D	Threaded Design Swivot - 3/4-16 X 3 - Delrin	1	102212	CAD	3/4-16	3	3/8	1/8	40	3/8	1/2	BUB-500-D
TBU-0750X3-D-T	TBU-0230-D	TBU-0750X3-D-T	Threaded Design Swivot - 3/4-16 X 3 - Delrin - Tall	1	102216	CAD	3/4-16	3	3/8	1/4	40	3/8	1/2	BUB-500-D-T
TBU-1108-D	TBU-0230-D	TBU-1108-D	Threaded Design Swivot - 1-8 X 1 - Delrin	1	102708	CAD	1-8	1	1/2	1/8	40	3/8	5/8	BUB-600-D
TBU-1108-D-T	TBU-0230-D	TBU-1108-D-T	Threaded Design Swivot - 1-8 X 1 - Delrin - Tall	1	102712	CAD	1-8	1	1/2	1/4	40	3/8	5/8	BUB-600-D-T
TBU-1108X2-D	TBU-0230-D	TBU-1108X2-D	Threaded Design Swivot - 1-8 X 2 - Delrin	1	102831	CAD	1-8	2	1/2	1/8	40	3/8	5/8	BUB-600-D
TBU-1108X2-D-T	TBU-0230-D	TBU-1108X2-D-T	Threaded Design Swivot - 1-8 X 2 - Delrin - Tall	1	102855	CAD	1-8	2	1/2	1/4	40	3/8	5/8	BUB-600-D-T
TBU-1108X3-D	TBU-0230-D	TBU-1108X3-D	Threaded Design Swivot - 1-8 X 3 - Delrin	1	102970	CAD	1-8	3	1/2	1/8	40	3/8	5/8	BUB-600-D
TBU-1108X3-D-T	TBU-0230-D	TBU-1108X3-D-T	Threaded Design Swivot - 1-8 X 3 - Delrin - Tall	1	102971	CAD	1-8	3	1/2	1/4	40	3/8	5/8	BUB-600-D-T
TBU-1114-D	TBU-0230-D	TBU-1114-D	Threaded Design Swivot - 1-14 X 1 - Delrin	1	103144	CAD	1-14	1	5/8	1/8	34	3/8	3/4	BUB-700-D
TBU-1114-D-T	TBU-0230-D	TBU-1114-D-T	Threaded Design Swivot - 1-14 X 1 - Delrin - Tall	1	103155	CAD	1-14	1	5/8	1/4	34	3/8	3/4	BUB-700-D-T
TBU-1114X2-D	TBU-0230-D	TBU-1114X2-D	Threaded Design Swivot - 1-14 X 2 - Delrin	1	103225	CAD	1-14	2	5/8	1/8	34	3/8	3/4	BUB-700-D
TBU-1114X2-D-T	TBU-0230-D	TBU-1114X2-D-T	Threaded Design Swivot - 1-14 X 2 - Delrin - Tall	1	103232	CAD	1-14	2	5/8	1/4	34	3/8	3/4	BUB-700-D-T
TBU-1114X3-D	TBU-0230-D	TBU-1114X3-D	Threaded Design Swivot - 1-14 X 3 - Delrin	1	103368	CAD	1-14	3	5/8	1/8	34	3/8	3/4	BUB-700-D
TBU-1114X3-D-T	TBU-0230-D	TBU-1114X3-D-T	Threaded Design Swivot - 1-14 X 3 - Delrin - Tall	1	103380	CAD	1-14	3	5/8	1/4	34	3/8	3/4	BUB-700-D-T
