MTBU-10025-FC |
MTBU-10025-FC |
MTBU-10025-FC |

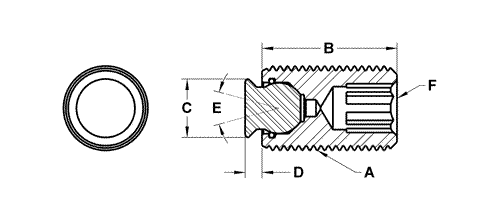

Threaded Design Swivot - M10 X 1.5 X 25 mm - SS Cone |
1 |
101888 |
CAD |
|
M10x1.5 | 25 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC | — |
MTBU-10035-FC |
MTBU-10025-FC |
MTBU-10035-FC |
Threaded Design Swivot - M10 X 1.5 X 35 Dur mm - SS Cone |
1 |
101935 |
CAD |
|
M10x1.5 | 35 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC | — |
MTBU-10050-FC |
MTBU-10025-FC |
MTBU-10050-FC |
Threaded Design Swivot - M10 X 1.5 X 50 mm - SS Cone |
1 |
102019 |
CAD |
|
M10x1.5 | 50 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-FC | — |
MTBU-12025-FC |
MTBU-10025-FC |
MTBU-12025-FC |
Threaded Design Swivot - M12 X 1.75 X 25 mm - SS Cone |
1 |
102106 |
CAD |
|
M12x1.75 | 25 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC | 3,440 |
MTBU-12035-FC |
MTBU-10025-FC |
MTBU-12035-FC |
Threaded Design Swivot - M12 X 1.75 X 35 Dur mm - SS Cone |
1 |
102173 |
CAD |
|
M12x1.75 | 35 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC | 3,440 |
MTBU-12050-FC |
MTBU-10025-FC |
MTBU-12050-FC |
Threaded Design Swivot - M12 X 1.75 X 50 mm - SS Cone |
1 |
102255 |
CAD |
|
M12x1.75 | 50 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-FC | 3,440 |
MTBU-16025-FC |
MTBU-10025-FC |
MTBU-16025-FC |
Threaded Design Swivot - M16 X 2.0 X 25 mm - SS Cone |
1 |
102335 |
CAD |
|
M16x2.0 | 25 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC | 5,190 |
MTBU-16035-FC |
MTBU-10025-FC |
MTBU-16035-FC |
Threaded Design Swivot - M16 X 2.0 X 35 Dur mm - SS Cone |
1 |
102459 |
CAD |
|
M16x2.0 | 35 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC | 5,190 |
MTBU-16050-FC |
MTBU-10025-FC |
MTBU-16050-FC |
Threaded Design Swivot - M16 X 2.0 X 50 mm - SS Cone |
1 |
102550 |
CAD |
|
M16x2.0 | 50 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-FC | 5,190 |
MTBU-20030-FC |
MTBU-10025-FC |
MTBU-20030-FC |
Threaded Design Swivot - M20 X 2.5 X 30 mm - SS Cone |
1 |
102635 |
CAD |
|
M20x2.5 | 30 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC | 8,379 |
MTBU-20050-FC |
MTBU-10025-FC |
MTBU-20050-FC |
Threaded Design Swivot - M20 X 2.5 X 50 mm - SS Cone |
1 |
102715 |
CAD |
|
M20x2.5 | 50 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC | 8,379 |
MTBU-20070-FC |
MTBU-10025-FC |
MTBU-20070-FC |
Threaded Design Swivot - M20 X 2.5 X 70 mm - SS Cone |
1 |
102815 |
CAD |
|
M20x2.5 | 70 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-FC | 8,379 |
MTBU-24040-FC |
MTBU-10025-FC |
MTBU-24040-FC |
Threaded Design Swivot - M24 X 3.0 X 40 mm - SS Cone |
1 |
102972 |
CAD |
|
M24x3.0 | 40 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-FC | 12,233 |
MTBU-24080-FC |
MTBU-10025-FC |
MTBU-24080-FC |
Threaded Design Swivot - M24 X 3.0 X 80 Dur mm - SS Cone |
1 |
103127 |
CAD |
|
M24x3.0 | 80 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-FC | 12,233 |
