Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MBUH-FC)

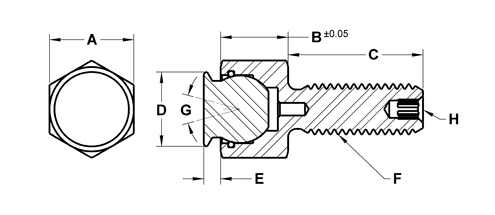

Drawing
Description
Media

Description

The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

MBUH-06012-FC

Hex Design Swivot - M6 X 1.0 X 12 mm - SS Cone

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
MBUH-06012-FC	MBUH-06012-FC	MBUH-06012-FC	Hex Design Swivot - M6 X 1.0 X 12 mm - SS Cone	1	101848	CAD	10	8	12	8	2	M6x1.0	28	—	7	MBUB-070-FC	2,061
MBUH-06025-FC	MBUH-06012-FC	MBUH-06025-FC	Hex Design Swivot - M6 X 1.0 X 25 mm - SS Cone	1	101909	CAD	10	8	25	8	2	M6x1.0	28	—	7	MBUB-070-FC	2,061
MBUH-06040-FC	MBUH-06012-FC	MBUH-06040-FC	Hex Design Swivot - M6 X 1.0 X 40 mm - SS Cone	1	101982	CAD	10	8	40	8	2	M6x1.0	28	—	7	MBUB-070-FC	2,061
MBUH-08012-FC	MBUH-06012-FC	MBUH-08012-FC	Hex Design Swivot - M8 X 1.25 X 12 mm - SS Cone	1	102046	CAD	13	11.5	12	11	3	M8x1.25	28	—	10	MBUB-100-FC	3,450
MBUH-08025-FC	MBUH-06012-FC	MBUH-08025-FC	Hex Design Swivot - M8 X 1.25 X 25 mm - SS Cone	1	102128	CAD	13	11.5	25	11	3	M8x1.25	28	—	10	MBUB-100-FC	3,450
MBUH-08040-FC	MBUH-06012-FC	MBUH-08040-FC	Hex Design Swivot - M8 X 1.25 X 40 mm - SS Cone	1	102239	CAD	13	11.5	40	11	3	M8x1.25	28	—	10	MBUB-100-FC	3,450
MBUH-10015-FC	MBUH-06012-FC	MBUH-10015-FC	Hex Design Swivot - M10 X 1.5 X 15 mm - SS Cone	1	102326	CAD	17	13	15	14	3	M10x1.5	28	3	13	MBUB-130-FC	4,194
MBUH-10030-FC	MBUH-06012-FC	MBUH-10030-FC	Hex Design Swivot - M10 X 1.5 X 30 mm - SS Cone	1	102437	CAD	17	13	30	14	3	M10x1.5	28	3	13	MBUB-130-FC	4,194
MBUH-10050-FC	MBUH-06012-FC	MBUH-10050-FC	Hex Design Swivot - M10 X 1.5 X 50 mm - SS Cone	1	102514	CAD	17	13	50	14	3	M10x1.5	28	3	13	MBUB-130-FC	4,194
MBUH-12020-FC	MBUH-06012-FC	MBUH-12020-FC	Hex Design Swivot - M12 X 1.75 X 20 mm - SS Cone	1	102613	CAD	19	15	20	19	4	M12x1.75	24	5	15	MBUB-150-FC	6,627
MBUH-12040-FC	MBUH-06012-FC	MBUH-12040-FC	Hex Design Swivot - M12 X 1.75 X 40 mm - SS Cone	1	102689	CAD	19	15	40	19	4	M12x1.75	24	5	15	MBUB-150-FC	6,627
MBUH-12060-FC	MBUH-06012-FC	MBUH-12060-FC	Hex Design Swivot - M12 X 1.75 X 60 Dur mm - SS Cone	1	102792	CAD	19	15	60	19	4	M12x1.75	24	5	15	MBUB-150-FC	6,627
MBUH-16025-FC	MBUH-06012-FC	MBUH-16025-FC	Hex Design Swivot - M16 X 2.0 X 25 mm - SS Cone	1	102873	CAD	24	19	25	21	4	M16x2.0	24	6	20	MBUB-200-FC	11,183
MBUH-16050-FC	MBUH-06012-FC	MBUH-16050-FC	Hex Design Swivot - M16 X 2.0 X 50 mm - SS Cone	1	102931	CAD	24	19	50	21	4	M16x2.0	24	6	20	MBUB-200-FC	11,183
MBUH-16080-FC	MBUH-06012-FC	MBUH-16080-FC	Hex Design Swivot - M16 X 2.0 X 80 Dur mm - SS Cone	1	102991	CAD	24	19	80	21	4	M16x2.0	24	6	20	MBUB-200-FC	11,183
