Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Inch (BUH-FC)

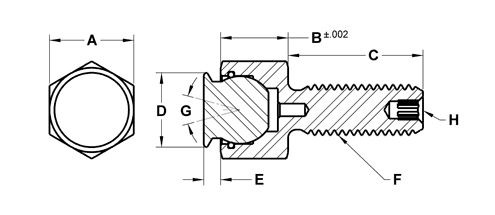

Drawing
Description
Media

Description

The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

BUH-0124-FC

Hex Design Swivot - 10-24 X 1/2 - SS Cone

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
BUH-0124-FC	BUH-0124-FC	BUH-0124-FC	Hex Design Swivot - 10-24 X 1/2 - SS Cone	1	101543	CAD	3/8	1/4	1/2	.236	.063	#10-24	28	—	3/16	BUB-187-FC	1,176
BUH-0124X1-FC	BUH-0124-FC	BUH-0124X1-FC	Hex Design Swivot - 10-24 X 1 - SS Cone	1	101609	CAD	3/8	1/4	1	.236	.063	#10-24	28	—	3/16	BUB-187-FC	1,176
BUH-0132-FC	BUH-0124-FC	BUH-0132-FC	Hex Design Swivot - 10-32 X 1/2 - SS Cone	1	101657	CAD	3/8	1/4	1/2	.236	.063	#10-32	28	—	3/16	BUB-187-FC	1,176
BUH-0132X1-FC	BUH-0124-FC	BUH-0132X1-FC	Hex Design Swivot - 10-32 X 1 - SS Cone	1	101712	CAD	3/8	1/4	1	.236	.063	#10-32	28	—	3/16	BUB-187-FC	1,176
BUH-0250-FC	BUH-0124-FC	BUH-0250-FC	Hex Design Swivot - 1/4-20 X 1/2 - SS Cone	1	102234	CAD	7/16	5/16	1/2	.315	.094	1/4-20	28	—	9/32	BUB-200-FC	2,441
BUH-0251-FC	BUH-0124-FC	BUH-0251-FC	Hex Design Swivot - 1/4-20 X 1 - SS Cone	1	102296	CAD	7/16	5/16	1	.315	.094	1/4-20	28	—	9/32	BUB-200-FC	2,441
BUH-0251X1.5-FC	BUH-0124-FC	BUH-0251X1.5-FC	Hex Design Swivot - 1/4-20 X 1-1/2 - SS Cone	1	102378	CAD	7/16	5/16	1-1/2	.315	.094	1/4-20	28	—	9/32	BUB-200-FC	2,441
BUH-0280-FC	BUH-0124-FC	BUH-0280-FC	Hex Design Swivot - 1/4-28 X 1/2 - SS Cone	1	102445	CAD	7/16	5/16	1/2	.315	.094	1/4-28	28	—	9/32	BUB-200-FC	2,441
BUH-0281-FC	BUH-0124-FC	BUH-0281-FC	Hex Design Swivot - 1/4-28 X 1 - SS Cone	1	102497	CAD	7/16	5/16	1	.315	.094	1/4-28	28	—	9/32	BUB-200-FC	2,441
BUH-0281X1.5-FC	BUH-0124-FC	BUH-0281X1.5-FC	Hex Design Swivot - 1/4-28 X 1-1/2 - SS Cone	1	102580	CAD	7/16	5/16	1-1/2	.315	.094	1/4-28	28	—	9/32	BUB-200-FC	2,441
BUH-0310-FC	BUH-0124-FC	BUH-0310-FC	Hex Design Swivot - 5/16-18 X 1/2 - SS Cone	1	102727	CAD	1/2	3/8	1/2	.433	.125	5/16-18	28	—	3/8	BUB-300-FC	2,792
BUH-0312-FC	BUH-0124-FC	BUH-0312-FC	Hex Design Swivot - 5/16-18 X 1 - SS Cone	1	102841	CAD	1/2	3/8	1	.433	.125	5/16-18	28	—	3/8	BUB-300-FC	2,792
BUH-0312X1.5-FC	BUH-0124-FC	BUH-0312X1.5-FC	Hex Design Swivot - 5/16-18 X 1-1/2 - SS Cone	1	101582	CAD	1/2	3/8	1-1/2	.433	.125	5/16-18	28	—	3/8	BUB-300-FC	2,792
BUH-0320-FC	BUH-0124-FC	BUH-0320-FC	Hex Design Swivot - 5/16-24 X 1/2 - SS Cone	1	101689	CAD	1/2	3/8	1/2	.433	.125	5/16-24	28	—	3/8	BUB-300-FC	2,792
BUH-0321-FC	BUH-0124-FC	BUH-0321-FC	Hex Design Swivot - 5/16-24 X 1 - SS Cone	1	101806	CAD	1/2	3/8	1	.433	.125	5/16-24	28	—	3/8	BUB-300-FC	2,792
BUH-0321X1.5-FC	BUH-0124-FC	BUH-0321X1.5-FC	Hex Design Swivot - 5/16-24 X 1-1/2 - SS Cone	1	101919	CAD	1/2	3/8	1-1/2	.433	.125	5/16-24	28	—	3/8	BUB-300-FC	2,792
BUH-0370-FC	BUH-0124-FC	BUH-0370-FC	Hex Design Swivot - 3/8-16 X 1/2 - SS Cone	1	102009	CAD	5/8	1/2	1/2	.551	.125	3/8-16	28	1/8	1/2	BUB-500-FC	3,446
BUH-0375-FC	BUH-0124-FC	BUH-0375-FC	Hex Design Swivot - 3/8-16 X 1 - SS Cone	1	102096	CAD	5/8	1/2	1	.551	.125	3/8-16	28	1/8	1/2	BUB-500-FC	3,446
BUH-0375X1.5-FC	BUH-0124-FC	BUH-0375X1.5-FC	Hex Design Swivot - 3/8-16 X 1-1/2 - SS Cone	1	102233	CAD	5/8	1/2	1-1/2	.551	.125	3/8-16	28	1/8	1/2	BUB-500-FC	3,446
BUH-0230-FC	BUH-0124-FC	BUH-0230-FC	Hex Design Swivot - 3/8-24 X 1/2 - SS Cone	1	101805	CAD	5/8	1/2	1/2	.551	.125	3/8-24	28	1/8	1/2	BUB-500-FC	3,446
BUH-0231-FC	BUH-0124-FC	BUH-0231-FC	Hex Design Swivot - 3/8-24 X 1 - SS Cone	1	101923	CAD	5/8	1/2	1	.551	.125	3/8-24	28	1/8	1/2	BUB-500-FC	3,446
BUH-0231X1.5-FC	BUH-0124-FC	BUH-0231X1.5-FC	Hex Design Swivot - 3/8-24 X 1-1/2 - SS Cone	1	102037	CAD	5/8	1/2	1-1/2	.551	.125	3/8-24	28	1/8	1/2	BUB-500-FC	3,446
BUH-0510-FC	BUH-0124-FC	BUH-0510-FC	Hex Design Swivot - 1/2-13 X 1 - SS Cone	1	102555	CAD	13/16	5/8	1	.748	.156	1/2-13	32	3/16	5/8	BUB-600-FC	5,937
BUH-0515-FC	BUH-0124-FC	BUH-0515-FC	Hex Design Swivot - 1/2-13 X 1-1/2 - SS Cone	1	102654	CAD	13/16	5/8	1-1/2	.748	.156	1/2-13	32	3/16	5/8	BUB-600-FC	5,937
BUH-0240-FC	BUH-0124-FC	BUH-0240-FC	Hex Design Swivot - 1/2-20 X 1 - SS Cone	1	102178	CAD	13/16	5/8	1	.748	.156	1/2-20	32	3/16	5/8	BUB-600-FC	7,178
BUH-0500-FC	BUH-0124-FC	BUH-0500-FC	Hex Design Swivot - 1/2-20 X 1-1/2 - SS Cone	1	102394	CAD	13/16	5/8	1-1/2	.748	.156	1/2-20	32	3/16	5/8	BUB-600-FC	7,178
BUH-0625-FC	BUH-0124-FC	BUH-0625-FC	Hex Design Swivot - 5/8-11 X 1 - SS Cone	1	102923	CAD	15/16	11/16	1	.827	.156	5/8-11	32	1/4	3/4	BUB-700-FC	9,932
BUH-0625X2-FC	BUH-0124-FC	BUH-0625X2-FC	Hex Design Swivot - 5/8-11 X 2 - SS Cone	1	103067	CAD	15/16	11/16	2	.827	.156	5/8-11	32	1/4	3/4	BUB-700-FC	9,932
BUH-0620-FC	BUH-0124-FC	BUH-0620-FC	Hex Design Swivot - 5/8-18 X 1 - SS Cone	1	102778	CAD	15/16	11/16	1	.827	.156	5/8-18	32	1/4	3/4	BUB-700-FC	11,874
BUH-0620X2-FC	BUH-0124-FC	BUH-0620X2-FC	Hex Design Swivot - 5/8-18 X 2 - SS Cone	1	102846	CAD	15/16	11/16	2	.827	.156	5/8-18	32	1/4	3/4	BUB-700-FC	11,874
