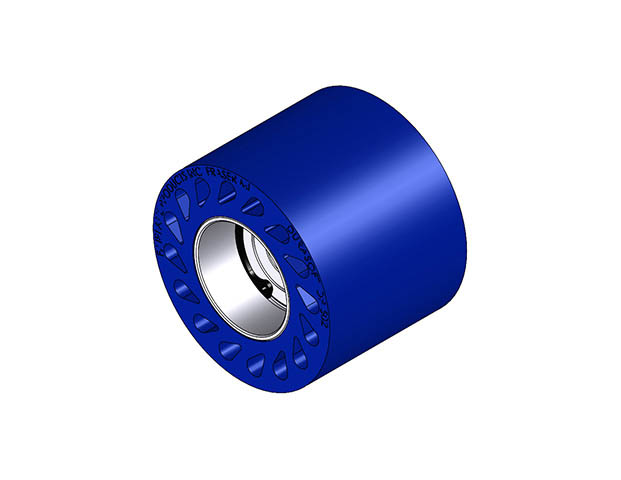

DuraSoft® Roller - Standard Bearing Mount - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide

Part Number: DR-502-60UR-B
Weight: 0 lbs 9 ozs
Diameter - Overall: 2.50
Material: Urethane
Width - Roller: 1.94
Diameter - Inside - Bearing Mount: .500/.505
Diameter - Inside - Roller: 1.245/1.250
Width - Bearing Mount: .745/.755
No. of Bearings: 1
Bearing Type: C
Durometer: 60

Part:DR-502-60UR-B

DR-502-60UR-B

Download

Download CAD models here
