Urethane Covered Bearing Mount Rollers - Double Bearings - Inch

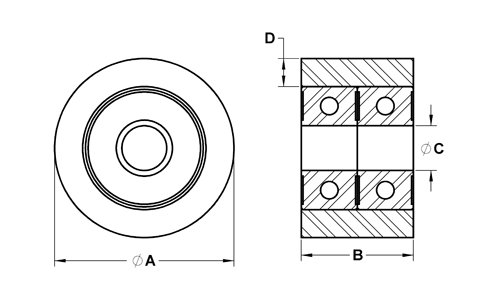

Drawing
Description
Media

Description

These covered bearings have a smooth urethane surface that is cast directly to a set of two precision sealed ball bearings. They provide smooth, quiet and non-marring operation. The urethane provides excellent abrasion resistance and durability. They are available in 35, 60 and to 95 durometer.

Roller Material Information

CBD-03126.3-35UR

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
CBD-03126.3-35UR	CBD-COMP	CBD-03126.3-35UR	3/16 2RS 3/4 DIA x .39 WD	1	112941	CAD	.75	.392	.187	.12	R3-2RS	35
CBD-03126.3-60UR	CBD-COMP	CBD-03126.3-60UR	3/16 2RS 3/4 DIA x .39 WD	1	112943	CAD	.75	.392	.187	.12	R3-2RS	60
CBD-03126.3-95UR	CBD-COMP	CBD-03126.3-95UR	3/16 2RS 3/4 DIA x .39 WD	1	112948	CAD	.75	.392	.187	.12	R3-2RS	95
CBD-04146.3-35UR	CBD-COMP	CBD-04146.3-35UR	1/4 2RS 7/8 DIA x .39 WD	1	112951	CAD	.875	.392	.250	.12	R4-2RS	35
CBD-04146.3-60UR	CBD-COMP	CBD-04146.3-60UR	1/4 2RS 7/8 DIA x .39 WD	1	112952	CAD	.875	.392	.250	.12	R4-2RS	60
CBD-04146.3-95UR	CBD-COMP	CBD-04146.3-95UR	1/4 2RS 7/8 DIA x .39 WD	1	112956	CAD	.875	.392	.250	.12	R4-2RS	95
CBD-041610-35UR	CBD-COMP	CBD-041610-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.00 in Dia X .625 in Width - .250 in ID	1	112964	CAD	1.00	.625	.250	.15	1602-2RS	35
CBD-041610-60UR	CBD-COMP	CBD-041610-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.00 in Dia X .625 in Width - .250 in ID	1	112966	CAD	1.00	.625	.250	.15	1602-2RS	60
CBD-041610-95UR	CBD-COMP	CBD-041610-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.00 in Dia X .625 in Width - .250 in ID	1	112969	CAD	1.00	.625	.250	.15	1602-2RS	95
CBD-0618.510-35UR	CBD-COMP	CBD-0618.510-35UR	3/8 2RS 1.16 DIA X 5/8 WD	1	113025	CAD	1.156	.625	.375	.12	1606-2RS	35
CBD-0618.510-60UR	CBD-COMP	CBD-0618.510-60UR	3/8 2RS 1.16 DIA X 5/8 WD	1	113030	CAD	1.156	.625	.375	.12	1606-2RS	60
CBD-0618.510-95UR	CBD-COMP	CBD-0618.510-95UR	3/8 2RS 1.16 DIA X 5/8 WD	1	113033	CAD	1.156	.625	.375	.12	1606-2RS	95
CBD-052011-35UR	CBD-COMP	CBD-052011-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.25 in Dia X .688 in Width - .312 in ID	1	112974	CAD	1.25	.688	.312	.18	1603-2RS	35
CBD-052011-60UR	CBD-COMP	CBD-052011-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.25 in Dia X .688 in Width - .312 in ID	1	112977	CAD	1.25	.688	.312	.18	1603-2RS	60
CBD-052011-95UR	CBD-COMP	CBD-052011-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.25 in Dia X .688 in Width - .312 in ID	1	112980	CAD	1.25	.688	.312	.18	1603-2RS	95
CBD-052411-35UR	CBD-COMP	CBD-052411-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.50 in Dia X .688 in Width - .312 in ID	1	112994	CAD	1.50	.688	.312	.31	1603-2RS	35
CBD-052411-60UR	CBD-COMP	CBD-052411-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.50 in Dia X .688 in Width - .312 in ID	1	112998	CAD	1.50	.688	.312	.31	1603-2RS	60
CBD-052411-95UR	CBD-COMP	CBD-052411-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.50 in Dia X .688 in Width - .312 in ID	1	113008	CAD	1.50	.688	.312	.31	1603-2RS	95
CBD-062011-35UR	CBD-COMP	CBD-062011-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.25 in Dia X .688 in Width - .375 in ID	1	113035	CAD	1.25	.688	.375	.18	1604-2RS	35
CBD-062011-60UR	CBD-COMP	CBD-062011-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.25 in Dia X .688 in Width - .375 in ID	1	113045	CAD	1.25	.688	.375	.18	1604-2RS	60
CBD-062011-95UR	CBD-COMP	CBD-062011-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.25 in Dia X .688 in Width - .375 in ID	1	113049	CAD	1.25	.688	.375	.18	1604-2RS	95
CBD-062411-35UR	CBD-COMP	CBD-062411-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.50 in Dia X .688 in Width - .375 in ID	1	113054	CAD	1.50	.688	.375	.31	1604-2RS	35
CBD-062411-60UR	CBD-COMP	CBD-062411-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.50 in Dia X .688 in Width - .375 in ID	1	113057	CAD	1.50	.688	.375	.31	1604-2RS	60
CBD-062411-95UR	CBD-COMP	CBD-062411-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.50 in Dia X .688 in Width - .375 in ID	1	113061	CAD	1.50	.688	.375	.31	1604-2RS	95
CBD-082412-35UR	CBD-COMP	CBD-082412-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.50 in Dia X .750 in Width - .500 in ID	1	113069	CAD	1.50	.750	.500	.18	1616-2RS	35
CBD-082412-60UR	CBD-COMP	CBD-082412-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.50 in Dia X .750 in Width - .500 in ID	1	113071	CAD	1.50	.750	.500	.18	1616-2RS	60
CBD-082412-95UR	CBD-COMP	CBD-082412-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.50 in Dia X .750 in Width - .500 in ID	1	113073	CAD	1.50	.750	.500	.18	1616-2RS	95
CBD-082812-35UR	CBD-COMP	CBD-082812-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 1.75 in Dia X .750 in Width - .500 in ID	1	113082	CAD	1.75	.750	.500	.31	1616-2RS	35
CBD-082812-60UR	CBD-COMP	CBD-082812-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 1.75 in Dia X .750 in Width - .500 in ID	1	113086	CAD	1.75	.750	.500	.31	1616-2RS	60
CBD-082812-95UR	CBD-COMP	CBD-082812-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.75 in Dia X .750 in Width - .500 in ID	1	113088	CAD	1.75	.750	.500	.31	1616-2RS	95
CBD-083212-35UR	CBD-COMP	CBD-083212-35UR	Urethane Covered Bearing - Double Bearing Style - 35 Dur - 2.00 in Dia X .750 in Width - .500 in ID	1	113092	CAD	2.00	.750	.500	.43	1616-2RS	35
CBD-083212-60UR	CBD-COMP	CBD-083212-60UR	Urethane Covered Bearing - Double Bearing Style - 60 Dur - 2.00 in Dia X .750 in Width - .500 in ID	1	113094	CAD	2.00	.750	.500	.43	1616-2RS	60
CBD-083212-95UR	CBD-COMP	CBD-083212-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 2.00 in Dia X .750 in Width - .500 in ID	1	113102	CAD	2.00	.750	.500	.43	1616-2RS	95
CBD-102814-95UR	CBD-COMP	CBD-102814-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 1.75 in Dia X .875 in Width - .625 in ID	1	113114	CAD	1.75	.875	.625	.18	1623-2RS	95
CBD-123216-95UR	CBD-COMP	CBD-123216-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 2.00 in Dia X 1.00 in Width - .750 in ID	1	113118	CAD	2.00	1.000	.750	.18	1630-2RS	95
CBD-144018-95UR	CBD-COMP	CBD-144018-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 2.50 in Dia X 1.125 in Width - .875 in ID	1	113126	CAD	2.50	1.125	.875	.25	1640-2RS	95
CBD-164818-95UR	CBD-COMP	CBD-164818-95UR	Urethane Covered Bearing - Double Bearing Style - 95 Dur - 3.00 in Dia X 1.125 in Width - 1.00 in ID	1	113132	CAD	3.00	1.125	1.000	.50	1641-2RS	95
