Rest Pads - Round - Carbide Tipped - Tapped - Inch (CRP)

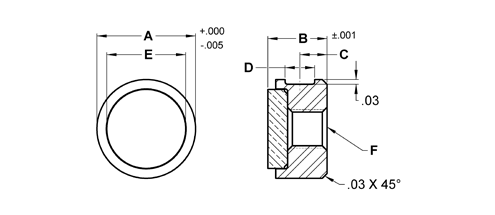

Drawing
Drawing
Description
Media
Description
Constructed with a carbide pad brazed to a heat treated alloy steel body for better wear. Black oxide finish. Blind-hole tap for back side mounting. Flat on O.D. for set screw mounting.
Gripper Technical Information
Generating CAD viewer. Please wait...
CRP-40
Carbide Tipped Rest Pad - 3/8 in Dia X 3/8 in
Part Details
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
2
3
4
5
CRP-40
CRP-40
CRP-40
Carbide Tipped Rest Pad - 3/8 in Dia X 3/8 in
1
100391
CAD
3/8
3/8
11/64
3/16
5/16
#10-32
CRP-405
CRP-40
CRP-405
Carbide Tipped Rest Pad - 3/8 in Dia X 1/2 in
1
100394
CAD
3/8
1/2
15/64
3/16
5/16
#10-32
CRP-50
CRP-40
CRP-50
Carbide Tipped Rest Pad - 1/2 in Dia X 3/8 in
1
100396
CAD
1/2
3/8
11/64
3/16
3/8
#10-32
CRP-53
CRP-40
CRP-53
Carbide Tipped Rest Pad - 1/2 in Dia X 1/2 in
1
100414
CAD
1/2
1/2
15/64
3/16
3/8
#10-32
CRP-62
CRP-40
CRP-62
Carbide Tipped Rest Pad - 5/8 in Dia X 3/8 in
1
100418
CAD
5/8
3/8
11/64
3/16
1/2
1/4-28
CRP-625
CRP-40
CRP-625
Carbide Tipped Rest Pad - 5/8 in Dia X 1/2 in
1
100419
CAD
5/8
1/2
15/64
3/16
1/2
1/4-28
CRP-75
CRP-40
CRP-75
Carbide Tipped Rest Pad - 3/4 in Dia X 3/8 in
1
100421
CAD
3/4
3/8
11/64
3/16
5/8
1/4-28
CRP-755
CRP-40
CRP-755
Carbide Tipped Rest Pad - 3/4 in Dia X 1/2 in
1
100425
CAD
3/4
1/2
15/64
3/16
5/8
1/4-28
CRP-81
CRP-40
CRP-81
Carbide Tipped Rest Pad - 1 in Dia X 3/8 in
1
100435
CAD
1
3/8
11/64
3/16
3/4
1/4-28
Carbide Tipped (Inch)
BUY
CAD
Part Number
A
OD
in
+.000/-.005
B
Height
in
±.001
C
Flat
Position
in
D
Flat
in
E
Contact
Diameter
in
F
Tap
CAD
CRP-40
3/8
3/8
11/64
3/16
5/16
#10-32
CAD
CRP-405
3/8
1/2
15/64
3/16
5/16
#10-32
CAD
CRP-50
1/2
3/8
11/64
3/16
3/8
#10-32
CAD
CRP-53
1/2
1/2
15/64
3/16
3/8
#10-32
CAD
CRP-62
5/8
3/8
11/64
3/16
1/2
1/4-28
CAD
CRP-625
5/8
1/2
15/64
3/16
1/2
1/4-28
CAD
CRP-75
3/4
3/8
11/64
3/16
5/8
1/4-28
CAD
CRP-755
3/4
1/2
15/64
3/16
5/8
1/4-28
CAD
CRP-81
1
3/8
11/64
3/16
3/4
1/4-28
