Home
>
Workholding & Positioning
>
Fixed Rest Pads
>
Carbide Pads
>
Carbide Pad (Inch)
Rest Pads - Round - Carbide - Inch (CC-F)

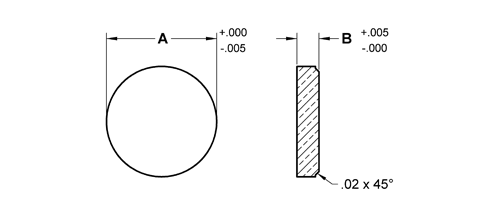

Drawing
Drawing
Description
Media
Description
Made from solid carbide for high wear resistance. Can be brazed or bonded in jigs, fixtures, clamps, etc. The bottom is chamfered for clearance in mounting pocket.
Gripper Technical Information
Generating CAD viewer. Please wait...
CC-1F
Solid Carbide Rest Pad - 1/4 in Dia X 1/8 in
Part Details
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
CC-1F
CC-1F
CC-1F
Solid Carbide Rest Pad - 1/4 in Dia X 1/8 in
1
101626
CAD
1/4
1/8
CC-2F
CC-1F
CC-2F
Solid Carbide Rest Pad - 5/16 in Dia X 1/8 in
1
101655
CAD
5/16
1/8
CC-3F
CC-1F
CC-3F
Solid Carbide Rest Pad - 3/8 in Dia X 1/8 in
1
101682
CAD
3/8
1/8
CC-4F
CC-1F
CC-4F
Solid Carbide Rest Pad - 1/2 in Dia X 1/8 in
1
101776
CAD
1/2
1/8
CC-5F
CC-1F
CC-5F
Solid Carbide Rest Pad - 5/8 in Dia X 1/8 in
1
101799
CAD
5/8
1/8
CC-6F
CC-1F
CC-6F
Solid Carbide Rest Pad - 3/4 in Dia X 1/8 in
1
101818
CAD
3/4
1/8
CC-8F
CC-1F
CC-8F
Solid Carbide Rest Pad - 1 in Dia X 5/32 in
1
101845
CAD
1
5/32
Carbide Pad (Inch)
BUY
CAD
Part Number
A
OD
in
+.000/-.005
B
CLARIFY
in
+.005/-.000
CAD
CC-1F
1/4
1/8
CAD
CC-2F
5/16
1/8
CAD
CC-3F
3/8
1/8
CAD
CC-4F
1/2
1/8
CAD
CC-5F
5/8
1/8
CAD
CC-6F
3/4
1/8
CAD
CC-8F
1
5/32
