Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH)

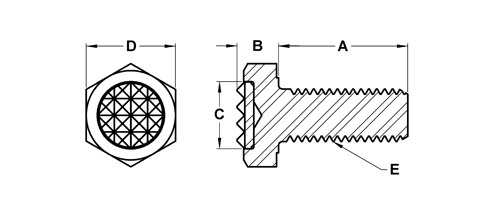

Drawing
Description
Media

Description

The threaded body allows the user to adjust the height of the gripper. The serrated carbide tip provides positive holding and wear resistance. The body is made from a Grade 8 fastener with a black oxide finish. The serrated carbide pad is brazed onto a pocket in the head.

Gripper Technical Information

MCTH-06102

MCTH Adjustable Gripper - M6 X 1.00 X 12 mm - Extra Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5
MCTH-06102	MCTH-06102	MCTH-06102	MCTH Adjustable Gripper - M6 X 1.00 X 12 mm - Extra Fine	1	101083	CAD	12	5	5/16	10	M6x1.00	EF
MCTH-06100	MCTH-06102	MCTH-06100	MCTH Adjustable Gripper - M6 X 1.00 X 25 mm - Extra Fine	1	101080	CAD	25	5	5/16	10	M6x1.00	EF
MCTH-08122	MCTH-06102	MCTH-08122	MCTH Adjustable Gripper - M8 X 1.25 X 12 mm - Fine	1	101098	CAD	12	6.4	3/8	13	M8x1.25	Fine
MCTH-08125X16	MCTH-06102	MCTH-08125X16	MCTH Adjustable Gripper - M8 X 1.25 X 16 mm - Fine	1	101110	CAD	16	6.4	3/8	13	M8x1.25	Fine
MCTH-08125	MCTH-06102	MCTH-08125	MCTH Adjustable Gripper - M8 X 1.25 X 25 mm - Fine	1	101102	CAD	25	6.4	3/8	13	M8x1.25	Fine
MCTH-08125X35	MCTH-06102	MCTH-08125X35	MCTH Adjustable Gripper - M8 X 1.25 X 35 mm - Fine	1	101117	CAD	35	6.4	3/8	13	M8x1.25	Fine
MCTH-10125	MCTH-06102	MCTH-10125	MCTH Adjustable Gripper - M10 X 1.25 X 25 mm - Fine	1	101118	CAD	25	7.5	1/2	17	M10x1.25	Fine
MCTH-10125X40	MCTH-06102	MCTH-10125X40	MCTH Adjustable Gripper - M10 X 1.25 X 40 mm - Fine	1	101127	CAD	40	7.5	1/2	17	M10x1.25	Fine
MCTH-10152	MCTH-06102	MCTH-10152	MCTH Adjustable Gripper - M10 X 1.25 X 12 mm - Fine	1	101146	CAD	12	7.5	1/2	17	M10x1.50	Fine
MCTH-10150	MCTH-06102	MCTH-10150	MCTH Adjustable Gripper - M10 X 1.50 X 25 mm - Fine	1	101137	CAD	25	7.5	1/2	17	M10x1.50	Fine
MCTH-10150X40	MCTH-06102	MCTH-10150X40	MCTH Adjustable Gripper - M10 X 1.50 X 40 mm - Fine	1	101144	CAD	40	7.5	1/2	17	M10x1.50	Fine
MCTH-12175	MCTH-06102	MCTH-12175	MCTH Adjustable Gripper - M12 X 1.75 X 25 mm - Fine	1	101158	CAD	25	8.7	5/8	19	M12x1.75	Fine
MCTH-12175X40	MCTH-06102	MCTH-12175X40	MCTH Adjustable Gripper - M12 X 1.75 X 40 mm - Fine	1	101161	CAD	40	8.7	5/8	19	M12x1.75	Fine
MCTH-16200	MCTH-06102	MCTH-16200	MCTH Adjustable Gripper - M16 X 2.00 X 35 mm - Fine	1	101174	CAD	35	11	3/4	24	M16x2.00	Fine
MCTH-16200X50	MCTH-06102	MCTH-16200X50	MCTH Adjustable Gripper - M16 X 2.00 X 50 mm - Fine	1	101191	CAD	50	11	3/4	24	M16x2.00	Fine
MCTH-20250	MCTH-06102	MCTH-20250	MCTH Adjustable Gripper - M20 X 2.50 X 40 mm - Extra Fine	1	101196	CAD	40	13.7	1	30	M20x2.50	EF
MCTH-20250X60	MCTH-06102	MCTH-20250X60	MCTH Adjustable Gripper - M20 X 2.50 X 60 mm - Extra Fine	1	101207	CAD	60	13.7	1	30	M20x2.50	EF
