Rest Pads - Round - White Delrin - C'Bored - Inch (DRP-C)

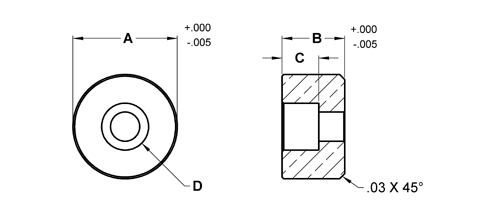

Drawing
Drawing
Description
Media
Description
Made from white Delrin. Non-marring and non-absorbing. Counter bored hole for front mounting with a socket head cap screw.
Gripper Technical Information
Generating CAD viewer. Please wait...
DRP-40-C
Delrin Rest Pad - C'Bore - 3/8 in Dia X 3/8 in
Part Details
Part Details
CAD
Show More...
No file is available for download.
Part Number
Model Name
SKU
Description
Brand
Product ID
CAD Model Link
Price Link
0
1
2
3
DRP-40-C
DRP-40-C
DRP-40-C
Delrin Rest Pad - C'Bore - 3/8 in Dia X 3/8 in
1
101185
CAD
3/8
3/8
3/16
#6 SHCS
DRP-405-C
DRP-40-C
DRP-405-C
Delrin Rest Pad - C'Bore - 3/8 in Dia X 1/2 in
1
101190
CAD
3/8
1/2
3/16
#6 SHCS
DRP-50-C
DRP-40-C
DRP-50-C
Delrin Rest Pad - C'Bore - 1/2 in Dia X 3/8 in
1
101203
CAD
1/2
3/8
7/32
#8 SHCS
DRP-53-C
DRP-40-C
DRP-53-C
Delrin Rest Pad - C'Bore - 1/2 in Dia X 1/2 in
1
101221
CAD
1/2
1/2
7/32
#8 SHCS
DRP-62-C
DRP-40-C
DRP-62-C
Delrin Rest Pad - C'Bore - 5/8 in Dia X 3/8 in
1
101236
CAD
5/8
3/8
7/32
#8 SHCS
DRP-625-C
DRP-40-C
DRP-625-C
Delrin Rest Pad - C'Bore - 5/8 in Dia X 1/2 in
1
101250
CAD
5/8
1/2
7/32
#8 SHCS
DRP-75-C
DRP-40-C
DRP-75-C
Delrin Rest Pad - C'Bore - 3/4 in Dia X 3/8 in
1
101265
CAD
3/4
3/8
1/4
#10 SHCS
DRP-755-C
DRP-40-C
DRP-755-C
Delrin Rest Pad - C'Bore - 3/4 in Dia X 1/2 in
1
101315
CAD
3/4
1/2
1/4
#10 SHCS
DRP-81-C
DRP-40-C
DRP-81-C
Delrin Rest Pad - C'Bore - 1 in Dia X 3/8 in
1
101345
CAD
1
3/8
9/32
1/4 SHCS
DRP-815-C
DRP-40-C
DRP-815-C
Delrin Rest Pad - C'Bore - 1 in Dia X 1/2 in
1
101358
CAD
1
1/2
9/32
1/4 SHCS
C`Bored (Inch)
BUY
CAD
Part Number
A
OD
in
+.000/-.005
B
Height
in
+.000/-.005
C
C'Bore
in
D
C'Bore
For
in
CAD
DRP-40-C
3/8
3/8
3/16
#6 SHCS
CAD
DRP-405-C
3/8
1/2
3/16
#6 SHCS
CAD
DRP-50-C
1/2
3/8
7/32
#8 SHCS
CAD
DRP-53-C
1/2
1/2
7/32
#8 SHCS
CAD
DRP-62-C
5/8
3/8
7/32
#8 SHCS
CAD
DRP-625-C
5/8
1/2
7/32
#8 SHCS
CAD
DRP-75-C
3/4
3/8
1/4
#10 SHCS
CAD
DRP-755-C
3/4
1/2
1/4
#10 SHCS
CAD
DRP-81-C
1
3/8
9/32
1/4 SHCS
CAD
DRP-815-C
1
1/2
9/32
1/4 SHCS
