Rest Pads - Round - Stainless Steel - C'Bore - Inch (CSRP-C)

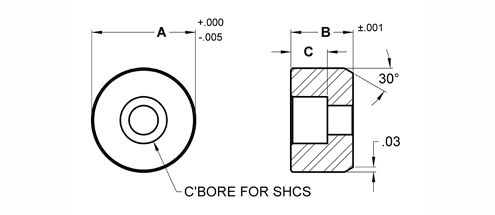

Drawing
Description
Media

Description

Made from 17-4 stainless steel which provides high strength as well as protection against chemical and environmental corrosion. Heat treated to Rc 43/46. Counter bored hole for front mounting with a socket head cap screw.

Gripper Technical Information

CSRP-40-C

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3
CSRP-40-C	CSRP-40-C	CSRP-40-C	SS Rest Pad - C'Bore - 3/8 Dia X 3/8	1	100799	CAD	3/8	3/8	#6 SHCS	3/16
CSRP-405-C	CSRP-40-C	CSRP-405-C	SS Rest Pad - C'Bore - 3/8 Dia X 1/2	1	100822	CAD	3/8	1/2	#6 SHCS	3/16
CSRP-50-C	CSRP-40-C	CSRP-50-C	SS Rest Pad - C'Bore - 1/2 Dia X 3/8	1	100830	CAD	1/2	3/8	#8 SHCS	7/32
CSRP-53-C	CSRP-40-C	CSRP-53-C	SS Rest Pad - C'Bore - 1/2 Dia X 1/2	1	100840	CAD	1/2	1/2	#8 SHCS	7/32
CSRP-62-C	CSRP-40-C	CSRP-62-C	SS Rest Pad - C'Bore - 5/8 Dia X 3/8	1	100849	CAD	5/8	3/8	#8 SHCS	7/32
CSRP-625-C	CSRP-40-C	CSRP-625-C	SS Rest Pad - C'Bore - 5/8 Dia X 1/2	1	100870	CAD	5/8	1/2	#8 SHCS	7/32
CSRP-75-C	CSRP-40-C	CSRP-75-C	SS Rest Pad - C'Bore - 3/4 Dia X 3/8	1	100884	CAD	3/4	3/8	#10 SHCS	1/4
CSRP-755-C	CSRP-40-C	CSRP-755-C	SS Rest Pad - C'Bore - 3/4 Dia X 1/2	1	100907	CAD	3/4	1/2	#10 SHCS	1/4
CSRP-81-C	CSRP-40-C	CSRP-81-C	SS Rest Pad - C'Bore - 1 Dia X 3/8	1	100937	CAD	1	3/8	1/4 SHCS	9/32
CSRP-815-C	CSRP-40-C	CSRP-815-C	SS Rest Pad - C'Bore - 1 Dia X 1/2	1	100975	CAD	1	1/2	1/4 SHCS	9/32
