| SRP-40-C |
SRP-40-C |
SRP-40-C |
Steel Rest Pad - C'Bore - 3/8 in Dia X 3/8 in |
1 |
100642 |
CAD |
|
3/8 | 3/8 | 3/16 | #6 SHCS |
| SRP-405-C |
SRP-40-C |
SRP-405-C |
Steel Rest Pad - C'Bore - 3/8 in Dia X 1/2 in |
1 |
100655 |
CAD |
|
3/8 | 1/2 | 3/16 | #6 SHCS |
| SRP-50-C |
SRP-40-C |
SRP-50-C |
Steel Rest Pad - C'Bore - 1/2 in Dia X 3/8 in |
1 |
100658 |
CAD |
|
1/2 | 3/8 | 7/32 | #8 SHCS |
| SRP-53-C |
SRP-40-C |
SRP-53-C |
Steel Rest Pad - C'Bore - 1/2 in Dia X 1/2 in |
1 |
100675 |
CAD |
|
1/2 | 1/2 | 7/32 | #8 SHCS |
| SRP-62-C |
SRP-40-C |
SRP-62-C |
Steel Rest Pad - C'Bore - 5/8 in Dia X 3/8 in |
1 |
100694 |
CAD |
|
5/8 | 3/8 | 7/32 | #8 SHCS |
| SRP-625-C |
SRP-40-C |
SRP-625-C |
Steel Rest Pad - C'Bore - 5/8 in Dia X 1/2 in |
1 |
100707 |
CAD |
|
5/8 | 1/2 | 7/32 | #8 SHCS |
| SRP-75-C |
SRP-40-C |
SRP-75-C |
Steel Rest Pad - C'Bore - 3/4 in Dia X 3/8 in |
1 |
100714 |
CAD |
|
3/4 | 3/8 | 1/4 | #10 SHCS |
| SRP-755-C |
SRP-40-C |
SRP-755-C |
Steel Rest Pad - C'Bore - 3/4 in Dia X 1/2 in |
1 |
100720 |
CAD |
|
3/4 | 1/2 | 1/4 | #10 SHCS |
| SRP-81-C |
SRP-40-C |
SRP-81-C |
Steel Rest Pad - C'Bore - 1 in Dia X 3/8 in |
1 |
100747 |
CAD |
|
1 | 3/8 | 9/32 | 1/4 SHCS |
| SRP-815-C |
SRP-40-C |
SRP-815-C |
Steel Rest Pad - C'Bore - 1 in Dia X 1/2 in |
1 |
100768 |
CAD |
|
1 | 1/2 | 9/32 | 1/4 SHCS |
Results by Category
Results by Keyword
Results by Part Number

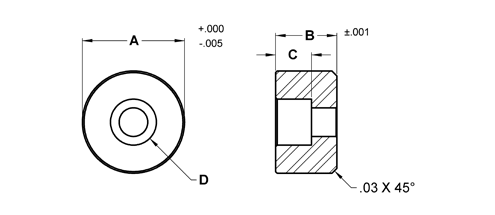

Drawing
