Grippers - Round - Tool Steel - Diamond Serration - Blind Tapped - Metric (MHS)

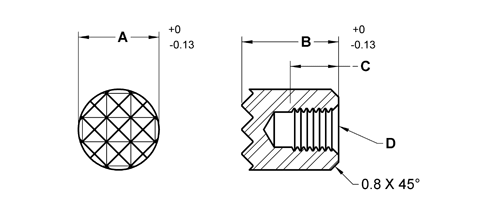

Drawing
Description
Media

Description

Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Serrated for positive holding in tough applications. Blind-hole tap for back side mounting.

Gripper Technical Information

MHS-060-SF

Tool Steel Gripper - Round - 6 mm Dia X 10 mm - Super Fine

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4
MHS-060-SF	MHS-060-SF	MHS-060-SF	Tool Steel Gripper - Round - 6 mm Dia X 10 mm - Super Fine	1	101192	CAD	6	10	5	M3x0.5	SF
MHS-062-SF	MHS-060-SF	MHS-062-SF	Tool Steel Gripper - Round - 6 mm Dia X 12 mm - Super Fine	1	100205	CAD	6	12	7	M3x0.5	SF
MHS-080-SF	MHS-060-SF	MHS-080-SF	Tool Steel Gripper - Round - 8 mm Dia X 10 mm - Super Fine	1	100210	CAD	8	10	5	M4x0.7	SF
MHS-082-SF	MHS-060-SF	MHS-082-SF	Tool Steel Gripper - Round - 8 mm Dia X 12 mm - Super Fine	1	100248	CAD	8	12	7	M4x0.7	SF
