Quick Release Ball Lock Pin - T-Handle - 4130 Steel Shank - Aluminum Handle - Inch (TAAS)

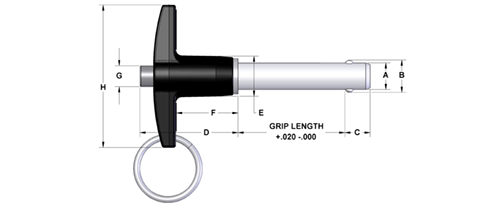

Drawing
Description
Description
These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 4130 steel. The handles are made from 380 die cast aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders.
Pin Material Specifications
Generating CAD viewer. Please wait...
TAAS-18-050
T-Handle Pin - 4130 Shank - 3/16 in Dia X .50 in
| Part Number | Model Name | SKU | Description | Brand | Product ID | CAD Model Link | Price Link | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAAS-18-050 | TAAS-18-050 | TAAS-18-050 | T-Handle Pin - 4130 Shank - 3/16 in Dia X .50 in | 1 | 105932 | CAD | 3/16 | 0.1885 | 0.1870 | 0.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-075 | TAAS-18-050 | TAAS-18-075 | T-Handle Pin - 4130 Shank - 3/16 in Dia X .75 in | 1 | 105944 | CAD | 3/16 | 0.1885 | 0.1870 | 0.75 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-100 | TAAS-18-050 | TAAS-18-100 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 1.00 in | 1 | 105951 | CAD | 3/16 | 0.1885 | 0.1870 | 1.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-125 | TAAS-18-050 | TAAS-18-125 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 1.25 in | 1 | 105963 | CAD | 3/16 | 0.1885 | 0.1870 | 1.25 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-150 | TAAS-18-050 | TAAS-18-150 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 1.50 in | 1 | 105970 | CAD | 3/16 | 0.1885 | 0.1870 | 1.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-175 | TAAS-18-050 | TAAS-18-175 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 1.75 in | 1 | 105974 | CAD | 3/16 | 0.1885 | 0.1870 | 1.75 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-200 | TAAS-18-050 | TAAS-18-200 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 2.00 in | 1 | 105992 | CAD | 3/16 | 0.1885 | 0.1870 | 2.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-250 | TAAS-18-050 | TAAS-18-250 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 2.50 in | 1 | 106005 | CAD | 3/16 | 0.1885 | 0.1870 | 2.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-300 | TAAS-18-050 | TAAS-18-300 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 3.00 in | 1 | 106017 | CAD | 3/16 | 0.1885 | 0.1870 | 3.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-350 | TAAS-18-050 | TAAS-18-350 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 3.50 in | 1 | 106026 | CAD | 3/16 | 0.1885 | 0.1870 | 3.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-18-400 | TAAS-18-050 | TAAS-18-400 | T-Handle Pin - 4130 Shank - 3/16 in Dia X 4.00 in | 1 | 106038 | CAD | 3/16 | 0.1885 | 0.1870 | 4.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-050 | TAAS-25-050 | TAAS-25-050 | T-Handle Pin - 4130 Shank - 1/4 in Dia X .50 in | 1 | 106050 | CAD | 1/4 | 0.2485 | 0.2470 | 0.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-075 | TAAS-25-050 | TAAS-25-075 | T-Handle Pin - 4130 Shank - 1/4 in Dia X .75 in | 1 | 106059 | CAD | 1/4 | 0.2485 | 0.2470 | 0.75 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-100 | TAAS-25-050 | TAAS-25-100 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 1.00 in | 1 | 106070 | CAD | 1/4 | 0.2485 | 0.2470 | 1.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-125 | TAAS-25-050 | TAAS-25-125 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 1.25 in | 1 | 106080 | CAD | 1/4 | 0.2485 | 0.2470 | 1.25 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-150 | TAAS-25-050 | TAAS-25-150 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 1.50 in | 1 | 106085 | CAD | 1/4 | 0.2485 | 0.2470 | 1.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-175 | TAAS-25-050 | TAAS-25-175 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 1.75 in | 1 | 106097 | CAD | 1/4 | 0.2485 | 0.2470 | 1.75 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-200 | TAAS-25-050 | TAAS-25-200 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 2.00 in | 1 | 106111 | CAD | 1/4 | 0.2485 | 0.2470 | 2.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-250 | TAAS-25-050 | TAAS-25-250 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 2.50 in | 1 | 106118 | CAD | 1/4 | 0.2485 | 0.2470 | 2.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-300 | TAAS-25-050 | TAAS-25-300 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 3.00 in | 1 | 106128 | CAD | 1/4 | 0.2485 | 0.2470 | 3.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-350 | TAAS-25-050 | TAAS-25-350 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 3.50 in | 1 | 106134 | CAD | 1/4 | 0.2485 | 0.2470 | 3.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-25-400 | TAAS-25-050 | TAAS-25-400 | T-Handle Pin - 4130 Shank - 1/4 in Dia X 4.00 in | 1 | 106138 | CAD | 1/4 | 0.2485 | 0.2470 | 4.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-050 | TAAS-31-050 | TAAS-31-050 | T-Handle Pin - 4130 Shank - 5/16 in Dia X .50 in | 1 | 106144 | CAD | 5/16 | 0.3110 | 0.3095 | 0.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-075 | TAAS-31-050 | TAAS-31-075 | T-Handle Pin - 4130 Shank - 5/16 in Dia X .75 in | 1 | 106155 | CAD | 5/16 | 0.3110 | 0.3095 | 0.75 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-100 | TAAS-31-050 | TAAS-31-100 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 1.00 in | 1 | 106162 | CAD | 5/16 | 0.3110 | 0.3095 | 1.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-125 | TAAS-31-050 | TAAS-31-125 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 1.25 in | 1 | 106166 | CAD | 5/16 | 0.3110 | 0.3095 | 1.25 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-150 | TAAS-31-050 | TAAS-31-150 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 1.50 in | 1 | 106182 | CAD | 5/16 | 0.3110 | 0.3095 | 1.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-175 | TAAS-31-050 | TAAS-31-175 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 1.75 in | 1 | 106187 | CAD | 5/16 | 0.3110 | 0.3095 | 1.75 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-200 | TAAS-31-050 | TAAS-31-200 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 2.00 in | 1 | 106192 | CAD | 5/16 | 0.3110 | 0.3095 | 2.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-250 | TAAS-31-050 | TAAS-31-250 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 2.50 in | 1 | 106208 | CAD | 5/16 | 0.3110 | 0.3095 | 2.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-300 | TAAS-31-050 | TAAS-31-300 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 3.00 in | 1 | 106217 | CAD | 5/16 | 0.3110 | 0.3095 | 3.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-350 | TAAS-31-050 | TAAS-31-350 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 3.50 in | 1 | 106221 | CAD | 5/16 | 0.3110 | 0.3095 | 3.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-31-400 | TAAS-31-050 | TAAS-31-400 | T-Handle Pin - 4130 Shank - 5/16 in Dia X 4.00 in | 1 | 106225 | CAD | 5/16 | 0.3110 | 0.3095 | 4.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| TAAS-37-050 | TAAS-37-050 | TAAS-37-050 | T-Handle Pin - 4130 Shank - 3/8 in Dia X .50 in | 1 | 106245 | CAD | 3/8 | 0.3735 | 0.3720 | 0.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-075 | TAAS-37-050 | TAAS-37-075 | T-Handle Pin - 4130 Shank - 3/8 in Dia X .75 in | 1 | 106258 | CAD | 3/8 | 0.3735 | 0.3720 | 0.75 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-100 | TAAS-37-050 | TAAS-37-100 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 1.00 in | 1 | 106264 | CAD | 3/8 | 0.3735 | 0.3720 | 1.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-125 | TAAS-37-050 | TAAS-37-125 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 1.25 in | 1 | 106287 | CAD | 3/8 | 0.3735 | 0.3720 | 1.25 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-150 | TAAS-37-050 | TAAS-37-150 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 1.50 in | 1 | 106293 | CAD | 3/8 | 0.3735 | 0.3720 | 1.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-175 | TAAS-37-050 | TAAS-37-175 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 1.75 in | 1 | 106301 | CAD | 3/8 | 0.3735 | 0.3720 | 1.75 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-200 | TAAS-37-050 | TAAS-37-200 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 2.00 in | 1 | 106315 | CAD | 3/8 | 0.3735 | 0.3720 | 2.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-250 | TAAS-37-050 | TAAS-37-250 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 2.50 in | 1 | 106321 | CAD | 3/8 | 0.3735 | 0.3720 | 2.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-300 | TAAS-37-050 | TAAS-37-300 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 3.00 in | 1 | 106327 | CAD | 3/8 | 0.3735 | 0.3720 | 3.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-350 | TAAS-37-050 | TAAS-37-350 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 3.50 in | 1 | 106352 | CAD | 3/8 | 0.3735 | 0.3720 | 3.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-37-400 | TAAS-37-050 | TAAS-37-400 | T-Handle Pin - 4130 Shank - 3/8 in Dia X 4.00 in | 1 | 106362 | CAD | 3/8 | 0.3735 | 0.3720 | 4.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| TAAS-50-100 | TAAS-50-100 | TAAS-50-100 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 1.00 in | 1 | 106378 | CAD | 1/2 | 0.4985 | 0.4970 | 1.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-125 | TAAS-50-100 | TAAS-50-125 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 1.25 in | 1 | 106395 | CAD | 1/2 | 0.4985 | 0.4970 | 1.25 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-150 | TAAS-50-100 | TAAS-50-150 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 1.50 in | 1 | 106400 | CAD | 1/2 | 0.4985 | 0.4970 | 1.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-175 | TAAS-50-100 | TAAS-50-175 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 1.75 in | 1 | 106416 | CAD | 1/2 | 0.4985 | 0.4970 | 1.75 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-200 | TAAS-50-100 | TAAS-50-200 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 2.00 in | 1 | 106420 | CAD | 1/2 | 0.4985 | 0.4970 | 2.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-250 | TAAS-50-100 | TAAS-50-250 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 2.50 in | 1 | 106437 | CAD | 1/2 | 0.4985 | 0.4970 | 2.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-300 | TAAS-50-100 | TAAS-50-300 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 3.00 in | 1 | 106442 | CAD | 1/2 | 0.4985 | 0.4970 | 3.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-350 | TAAS-50-100 | TAAS-50-350 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 3.50 in | 1 | 106452 | CAD | 1/2 | 0.4985 | 0.4970 | 3.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-400 | TAAS-50-100 | TAAS-50-400 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 4.00 in | 1 | 105729 | CAD | 1/2 | 0.4985 | 0.4970 | 4.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-450 | TAAS-50-100 | TAAS-50-450 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 4.50 in | 1 | 105738 | CAD | 1/2 | 0.4985 | 0.4970 | 4.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-500 | TAAS-50-100 | TAAS-50-500 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 5.00 in | 1 | 105746 | CAD | 1/2 | 0.4985 | 0.4970 | 5.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-550 | TAAS-50-100 | TAAS-50-550 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 5.50 in | 1 | 105753 | CAD | 1/2 | 0.4985 | 0.4970 | 5.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-50-600 | TAAS-50-100 | TAAS-50-600 | T-Handle Pin - 4130 Shank - 1/2 in Dia X 6.00 in | 1 | 105760 | CAD | 1/2 | 0.4985 | 0.4970 | 6.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| TAAS-62-150 | TAAS-62-100 | TAAS-62-150 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 1.50 in | 1 | 105773 | CAD | 5/8 | 0.6235 | 0.6220 | 1.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-175 | TAAS-62-100 | TAAS-62-175 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 1.75 in | 1 | 105778 | CAD | 5/8 | 0.6235 | 0.6220 | 1.75 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-200 | TAAS-62-100 | TAAS-62-200 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 2.00 in | 1 | 105790 | CAD | 5/8 | 0.6235 | 0.6220 | 2.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-250 | TAAS-62-100 | TAAS-62-250 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 2.50 in | 1 | 105800 | CAD | 5/8 | 0.6235 | 0.6220 | 2.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-300 | TAAS-62-100 | TAAS-62-300 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 3.00 in | 1 | 105824 | CAD | 5/8 | 0.6235 | 0.6220 | 3.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-350 | TAAS-62-100 | TAAS-62-350 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 3.50 in | 1 | 105839 | CAD | 5/8 | 0.6235 | 0.6220 | 3.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-400 | TAAS-62-100 | TAAS-62-400 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 4.00 in | 1 | 105843 | CAD | 5/8 | 0.6235 | 0.6220 | 4.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-450 | TAAS-62-100 | TAAS-62-450 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 4.50 in | 1 | 105852 | CAD | 5/8 | 0.6235 | 0.6220 | 4.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-500 | TAAS-62-100 | TAAS-62-500 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 5.00 in | 1 | 105866 | CAD | 5/8 | 0.6235 | 0.6220 | 5.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-550 | TAAS-62-100 | TAAS-62-550 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 5.50 in | 1 | 105873 | CAD | 5/8 | 0.6235 | 0.6220 | 5.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| TAAS-62-600 | TAAS-62-100 | TAAS-62-600 | T-Handle Pin - 4130 Shank - 5/8 in Dia X 6.00 in | 1 | 105900 | CAD | 5/8 | 0.6235 | 0.6220 | 6.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 |
Alloy Steel - Aluminum Handle (Inch)
BUY | CAD | Part Number | Nominal Diameter in | A Max in | A Min in | Grip Length in +.020/-.000 | B in ±.005 | C in +.000/-.030 | D in | E in | F in | G in | H in |
| CAD | TAAS-18-050 | 3/16 | 0.1885 | 0.1870 | 0.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-075 | 3/16 | 0.1885 | 0.1870 | 0.75 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-100 | 3/16 | 0.1885 | 0.1870 | 1.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-125 | 3/16 | 0.1885 | 0.1870 | 1.25 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-150 | 3/16 | 0.1885 | 0.1870 | 1.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-175 | 3/16 | 0.1885 | 0.1870 | 1.75 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-200 | 3/16 | 0.1885 | 0.1870 | 2.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-250 | 3/16 | 0.1885 | 0.1870 | 2.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-300 | 3/16 | 0.1885 | 0.1870 | 3.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-350 | 3/16 | 0.1885 | 0.1870 | 3.50 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-18-400 | 3/16 | 0.1885 | 0.1870 | 4.00 | 0.220 | 0.260 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-050 | 1/4 | 0.2485 | 0.2470 | 0.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-075 | 1/4 | 0.2485 | 0.2470 | 0.75 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-100 | 1/4 | 0.2485 | 0.2470 | 1.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-125 | 1/4 | 0.2485 | 0.2470 | 1.25 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-150 | 1/4 | 0.2485 | 0.2470 | 1.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-175 | 1/4 | 0.2485 | 0.2470 | 1.75 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-200 | 1/4 | 0.2485 | 0.2470 | 2.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-250 | 1/4 | 0.2485 | 0.2470 | 2.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-300 | 1/4 | 0.2485 | 0.2470 | 3.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-350 | 1/4 | 0.2485 | 0.2470 | 3.50 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-25-400 | 1/4 | 0.2485 | 0.2470 | 4.00 | 0.289 | 0.290 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-050 | 5/16 | 0.3110 | 0.3095 | 0.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-075 | 5/16 | 0.3110 | 0.3095 | 0.75 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-100 | 5/16 | 0.3110 | 0.3095 | 1.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-125 | 5/16 | 0.3110 | 0.3095 | 1.25 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-150 | 5/16 | 0.3110 | 0.3095 | 1.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-175 | 5/16 | 0.3110 | 0.3095 | 1.75 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-200 | 5/16 | 0.3110 | 0.3095 | 2.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-250 | 5/16 | 0.3110 | 0.3095 | 2.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-300 | 5/16 | 0.3110 | 0.3095 | 3.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-350 | 5/16 | 0.3110 | 0.3095 | 3.50 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-31-400 | 5/16 | 0.3110 | 0.3095 | 4.00 | 0.375 | 0.330 | 1.21 | 0.47 | 0.77 | 0.23 | 1.81 | |
| CAD | TAAS-37-050 | 3/8 | 0.3735 | 0.3720 | 0.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-075 | 3/8 | 0.3735 | 0.3720 | 0.75 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-100 | 3/8 | 0.3735 | 0.3720 | 1.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-125 | 3/8 | 0.3735 | 0.3720 | 1.25 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-150 | 3/8 | 0.3735 | 0.3720 | 1.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-175 | 3/8 | 0.3735 | 0.3720 | 1.75 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-200 | 3/8 | 0.3735 | 0.3720 | 2.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-250 | 3/8 | 0.3735 | 0.3720 | 2.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-300 | 3/8 | 0.3735 | 0.3720 | 3.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-350 | 3/8 | 0.3735 | 0.3720 | 3.50 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-37-400 | 3/8 | 0.3735 | 0.3720 | 4.00 | 0.440 | 0.365 | 1.37 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | TAAS-50-100 | 1/2 | 0.4985 | 0.4970 | 1.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-125 | 1/2 | 0.4985 | 0.4970 | 1.25 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-150 | 1/2 | 0.4985 | 0.4970 | 1.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-175 | 1/2 | 0.4985 | 0.4970 | 1.75 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-200 | 1/2 | 0.4985 | 0.4970 | 2.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-250 | 1/2 | 0.4985 | 0.4970 | 2.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-300 | 1/2 | 0.4985 | 0.4970 | 3.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-350 | 1/2 | 0.4985 | 0.4970 | 3.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-400 | 1/2 | 0.4985 | 0.4970 | 4.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-450 | 1/2 | 0.4985 | 0.4970 | 4.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-500 | 1/2 | 0.4985 | 0.4970 | 5.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-550 | 1/2 | 0.4985 | 0.4970 | 5.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-50-600 | 1/2 | 0.4985 | 0.4970 | 6.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.25 | |
| CAD | TAAS-62-150 | 5/8 | 0.6235 | 0.6220 | 1.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-175 | 5/8 | 0.6235 | 0.6220 | 1.75 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-200 | 5/8 | 0.6235 | 0.6220 | 2.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-250 | 5/8 | 0.6235 | 0.6220 | 2.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-300 | 5/8 | 0.6235 | 0.6220 | 3.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-350 | 5/8 | 0.6235 | 0.6220 | 3.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-400 | 5/8 | 0.6235 | 0.6220 | 4.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-450 | 5/8 | 0.6235 | 0.6220 | 4.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-500 | 5/8 | 0.6235 | 0.6220 | 5.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-550 | 5/8 | 0.6235 | 0.6220 | 5.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 | |
| CAD | TAAS-62-600 | 5/8 | 0.6235 | 0.6220 | 6.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 3.07 |
