Quick Release Ball Lock Pin - Button Handle - 300 Series SS Shank - Aluminum Handle - Inch (BACS)

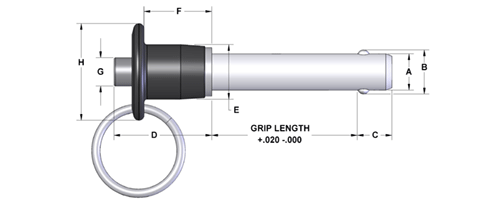

Drawing
Description
Media

Description

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 300 series stainless steel. The 300 series stainless steel is not recommended in application where shear forces are a factor. The handles are made from 2024-T4 aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders.

Pin Material Specifications

BACS-25-050

Button Handle Pin - 300 Series SS Shank - 1/4 in X .50 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
BACS-25-050	BACS-25-050	BACS-25-050	Button Handle Pin - 300 Series SS Shank - 1/4 in X .50 in	1	107819	CAD	1/4	0.2485	0.247	0.5	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-075	BACS-25-050	BACS-25-075	Button Handle Pin - 300 Series SS Shank - 1/4 in X .75 in	1	107827	CAD	1/4	0.2485	0.247	0.75	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-100	BACS-25-050	BACS-25-100	Button Handle Pin - 300 Series SS Shank - 1/4 in X 1.00 in	1	107829	CAD	1/4	0.2485	0.247	1	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-125	BACS-25-050	BACS-25-125	Button Handle Pin - 300 Series SS Shank - 1/4 in X 1.25 in	1	107849	CAD	1/4	0.2485	0.247	1.25	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-150	BACS-25-050	BACS-25-150	Button Handle Pin - 300 Series SS Shank - 1/4 in X 1.50 in	1	107865	CAD	1/4	0.2485	0.247	1.5	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-175	BACS-25-050	BACS-25-175	Button Handle Pin - 300 Series SS Shank - 1/4 in X 1.75 in	1	107867	CAD	1/4	0.2485	0.247	1.75	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-200	BACS-25-050	BACS-25-200	Button Handle Pin - 300 Series SS Shank - 1/4 in X 2.00 in	1	107873	CAD	1/4	0.2485	0.247	2	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-250	BACS-25-050	BACS-25-250	Button Handle Pin - 300 Series SS Shank - 1/4 in X 2.50 in	1	107882	CAD	1/4	0.2485	0.247	2.5	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-300	BACS-25-050	BACS-25-300	Button Handle Pin - 300 Series SS Shank - 1/4 in X 3.00 in	1	107890	CAD	1/4	0.2485	0.247	3	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-350	BACS-25-050	BACS-25-350	Button Handle Pin - 300 Series SS Shank - 1/4 in X 3.50 in	1	107909	CAD	1/4	0.2485	0.247	3.5	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-25-400	BACS-25-050	BACS-25-400	Button Handle Pin - 300 Series SS Shank - 1/4 in X 4.00 in	1	107921	CAD	1/4	0.2485	0.247	4	0.289	0.29	0.92	0.47	0.63	0.23	0.81
BACS-31-050	BACS-31-050	BACS-31-050	Button Handle Pin - 300 Series SS Shank - 5/16 in X .50 in	1	107944	CAD	5/16	0.311	0.3095	0.5	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-075	BACS-31-050	BACS-31-075	Button Handle Pin - 300 Series SS Shank - 5/16 in X .75 in	1	107951	CAD	5/16	0.311	0.3095	0.75	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-100	BACS-31-050	BACS-31-100	Button Handle Pin - 300 Series SS Shank - 5/16 in X 1.00 in	1	107956	CAD	5/16	0.311	0.3095	1	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-125	BACS-31-050	BACS-31-125	Button Handle Pin - 300 Series SS Shank - 5/16 in X 1.25 in	1	107960	CAD	5/16	0.311	0.3095	1.25	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-150	BACS-31-050	BACS-31-150	Button Handle Pin - 300 Series SS Shank - 5/16 in X 1.50 in	1	107965	CAD	5/16	0.311	0.3095	1.5	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-175	BACS-31-050	BACS-31-175	Button Handle Pin - 300 Series SS Shank - 5/16 in X 1.75 in	1	107975	CAD	5/16	0.311	0.3095	1.75	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-200	BACS-31-050	BACS-31-200	Button Handle Pin - 300 Series SS Shank - 5/16 in X 2.00 in	1	107983	CAD	5/16	0.311	0.3095	2	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-250	BACS-31-050	BACS-31-250	Button Handle Pin - 300 Series SS Shank - 5/16 in X 2.50 in	1	107992	CAD	5/16	0.311	0.3095	2.5	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-300	BACS-31-050	BACS-31-300	Button Handle Pin - 300 Series SS Shank - 5/16 in X 3.00 in	1	107995	CAD	5/16	0.311	0.3095	3	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-350	BACS-31-050	BACS-31-350	Button Handle Pin - 300 Series SS Shank - 5/16 in X 3.50 in	1	107996	CAD	5/16	0.311	0.3095	3.5	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-31-400	BACS-31-050	BACS-31-400	Button Handle Pin - 300 Series SS Shank - 5/16 in X 4.00 in	1	108003	CAD	5/16	0.311	0.3095	4	0.375	0.33	0.92	0.47	0.63	0.23	0.81
BACS-37-050	BACS-37-050	BACS-37-050	Button Handle Pin - 300 Series SS Shank - 3/8 in X .50 in	1	108028	CAD	3/8	0.3735	0.372	0.5	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-075	BACS-37-050	BACS-37-075	Button Handle Pin - 300 Series SS Shank - 3/8 in X .75 in	1	108044	CAD	3/8	0.3735	0.372	0.75	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-100	BACS-37-050	BACS-37-100	Button Handle Pin - 300 Series SS Shank - 3/8 in X 1.00 in	1	108058	CAD	3/8	0.3735	0.372	1	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-125	BACS-37-050	BACS-37-125	Button Handle Pin - 300 Series SS Shank - 3/8 in X 1.25 in	1	108069	CAD	3/8	0.3735	0.372	1.25	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-150	BACS-37-050	BACS-37-150	Button Handle Pin - 300 Series SS Shank - 3/8 in X 1.50 in	1	108130	CAD	3/8	0.3735	0.372	1.5	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-175	BACS-37-050	BACS-37-175	Button Handle Pin - 300 Series SS Shank - 3/8 in X 1.75 in	1	108135	CAD	3/8	0.3735	0.372	1.75	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-200	BACS-37-050	BACS-37-200	Button Handle Pin - 300 Series SS Shank - 3/8 in X 2.00 in	1	108146	CAD	3/8	0.3735	0.372	2	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-250	BACS-37-050	BACS-37-250	Button Handle Pin - 300 Series SS Shank - 3/8 in X 2.50 in	1	108156	CAD	3/8	0.3735	0.372	2.5	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-300	BACS-37-050	BACS-37-300	Button Handle Pin - 300 Series SS Shank - 3/8 in X 3.00 in	1	108159	CAD	3/8	0.3735	0.372	3	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-350	BACS-37-050	BACS-37-350	Button Handle Pin - 300 Series SS Shank - 3/8 in X 3.50 in	1	108171	CAD	3/8	0.3735	0.372	3.5	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-37-400	BACS-37-050	BACS-37-400	Button Handle Pin - 300 Series SS Shank - 3/8 in X 4.00 in	1	108185	CAD	3/8	0.3735	0.372	4	0.44	0.365	1.01	0.56	0.7	0.29	1
BACS-50-100	BACS-50-100	BACS-50-100	Button Handle Pin - 300 Series SS Shank - 1/2 in X 1.00 in	1	108190	CAD	1/2	0.4985	0.497	1	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-125	BACS-50-100	BACS-50-125	Button Handle Pin - 300 Series SS Shank - 1/2 in X 1.25 in	1	108198	CAD	1/2	0.4985	0.497	1.25	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-150	BACS-50-100	BACS-50-150	Button Handle Pin - 300 Series SS Shank - 1/2 in X 1.50 in	1	108203	CAD	1/2	0.4985	0.497	1.5	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-175	BACS-50-100	BACS-50-175	Button Handle Pin - 300 Series SS Shank - 1/2 in X 1.75 in	1	108211	CAD	1/2	0.4985	0.497	1.75	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-200	BACS-50-100	BACS-50-200	Button Handle Pin - 300 Series SS Shank - 1/2 in X 2.00 in	1	108223	CAD	1/2	0.4985	0.497	2	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-250	BACS-50-100	BACS-50-250	Button Handle Pin - 300 Series SS Shank - 1/2 in X 2.50 in	1	108228	CAD	1/2	0.4985	0.497	2.5	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-300	BACS-50-100	BACS-50-300	Button Handle Pin - 300 Series SS Shank - 1/2 in X 3.00 in	1	108234	CAD	1/2	0.4985	0.497	3	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-350	BACS-50-100	BACS-50-350	Button Handle Pin - 300 Series SS Shank - 1/2 in X 3.50 in	1	108254	CAD	1/2	0.4985	0.497	3.5	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-400	BACS-50-100	BACS-50-400	Button Handle Pin - 300 Series SS Shank - 1/2 in X 4.00 in	1	108258	CAD	1/2	0.4985	0.497	4	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-450	BACS-50-100	BACS-50-450	Button Handle Pin - 300 Series SS Shank - 1/2 in X 4.50 in	1	108259	CAD	1/2	0.4985	0.497	4.5	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-500	BACS-50-100	BACS-50-500	Button Handle Pin - 300 Series SS Shank - 1/2 in X 5.00 in	1	108265	CAD	1/2	0.4985	0.497	5	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-550	BACS-50-100	BACS-50-550	Button Handle Pin - 300 Series SS Shank - 1/2 in X 5.50 in	1	108277	CAD	1/2	0.4985	0.497	5.5	0.594	0.46	1.27	0.72	0.85	0.42	1.37
BACS-50-600	BACS-50-100	BACS-50-600	Button Handle Pin - 300 Series SS Shank - 1/2 in X 6.00 in	1	107093	CAD	1/2	0.4985	0.497	6	0.594	0.46	1.27	0.72	0.85	0.42	1.37
