Quick Release Ball Lock Pin - T-Handle - 300 Series SS Shank - Aluminum Handle - Inch (TACS)

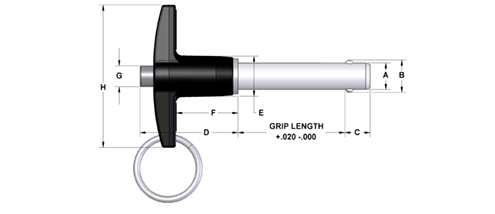

Drawing
Description
Media

Description

The handles are made from aluminum and anodized black. The shanks are made from 300 series SS. Non-hardened stainless designed for light duty applications and corrosion resistance .

Pin Material Specifications

TACS-25-050

T-Handle Pin - 300 Series SS Shank - 1/4 in X .50 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9	10
TACS-25-050	TACS-25-050	TACS-25-050	T-Handle Pin - 300 Series SS Shank - 1/4 in X .50 in	1	105958	CAD	1/4	0.2485	0.247	0.5	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-075	TACS-25-050	TACS-25-075	T-Handle Pin - 300 Series SS Shank - 1/4 in X .75 in	1	105972	CAD	1/4	0.2485	0.247	0.75	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-100	TACS-25-050	TACS-25-100	T-Handle Pin - 300 Series SS Shank - 1/4 in X 1.00 in	1	105991	CAD	1/4	0.2485	0.247	1	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-125	TACS-25-050	TACS-25-125	T-Handle Pin - 300 Series SS Shank - 1/4 in X 1.25 in	1	106003	CAD	1/4	0.2485	0.247	1.25	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-150	TACS-25-050	TACS-25-150	T-Handle Pin - 300 Series SS Shank - 1/4 in X 1.50 in	1	106010	CAD	1/4	0.2485	0.247	1.5	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-175	TACS-25-050	TACS-25-175	T-Handle Pin - 300 Series SS Shank - 1/4 in X 1.75 in	1	106014	CAD	1/4	0.2485	0.247	1.75	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-200	TACS-25-050	TACS-25-200	T-Handle Pin - 300 Series SS Shank - 1/4 in X 2.00 in	1	106029	CAD	1/4	0.2485	0.247	2	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-250	TACS-25-050	TACS-25-250	T-Handle Pin - 300 Series SS Shank - 1/4 in X 2.50 in	1	106034	CAD	1/4	0.2485	0.247	2.5	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-300	TACS-25-050	TACS-25-300	T-Handle Pin - 300 Series SS Shank - 1/4 in X 3.00 in	1	106051	CAD	1/4	0.2485	0.247	3	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-350	TACS-25-050	TACS-25-350	T-Handle Pin - 300 Series SS Shank - 1/4 in X 3.50 in	1	106058	CAD	1/4	0.2485	0.247	3.5	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-25-400	TACS-25-050	TACS-25-400	T-Handle Pin - 300 Series SS Shank - 1/4 in X 4.00 in	1	106077	CAD	1/4	0.2485	0.247	4	0.289	0.29	1.21	0.47	0.76	0.23	1.81
TACS-31-050	TACS-31-050	TACS-31-050	T-Handle Pin - 300 Series SS Shank - 5/16 in X .50 in	1	106081	CAD	5/16	0.311	0.3095	0.5	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-075	TACS-31-050	TACS-31-075	T-Handle Pin - 300 Series SS Shank - 5/16 in X .75 in	1	106084	CAD	5/16	0.311	0.3095	0.75	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-100	TACS-31-050	TACS-31-100	T-Handle Pin - 300 Series SS Shank - 5/16 in X 1.00 in	1	106094	CAD	5/16	0.311	0.3095	1	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-125	TACS-31-050	TACS-31-125	T-Handle Pin - 300 Series SS Shank - 5/16 in X 1.25 in	1	106120	CAD	5/16	0.311	0.3095	1.25	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-150	TACS-31-050	TACS-31-150	T-Handle Pin - 300 Series SS Shank - 5/16 in X 1.50 in	1	106132	CAD	5/16	0.311	0.3095	1.5	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-175	TACS-31-050	TACS-31-175	T-Handle Pin - 300 Series SS Shank - 5/16 in X 1.75 in	1	106148	CAD	5/16	0.311	0.3095	1.75	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-200	TACS-31-050	TACS-31-200	T-Handle Pin - 300 Series SS Shank - 5/16 in X 2.00 in	1	106170	CAD	5/16	0.311	0.3095	2	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-250	TACS-31-050	TACS-31-250	T-Handle Pin - 300 Series SS Shank - 5/16 in X 2.50 in	1	106172	CAD	5/16	0.311	0.3095	2.5	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-300	TACS-31-050	TACS-31-300	T-Handle Pin - 300 Series SS Shank - 5/16 in X 3.00 in	1	106181	CAD	5/16	0.311	0.3095	3	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-350	TACS-31-050	TACS-31-350	T-Handle Pin - 300 Series SS Shank - 5/16 in X 3.50 in	1	106186	CAD	5/16	0.311	0.3095	3.5	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-31-400	TACS-31-050	TACS-31-400	T-Handle Pin - 300 Series SS Shank - 5/16 in X 4.00 in	1	106197	CAD	5/16	0.311	0.3095	4	0.375	0.33	1.21	0.47	0.76	0.23	1.81
TACS-37-050	TACS-37-050	TACS-37-050	T-Handle Pin - 300 Series SS Shank - 3/8 in X .50 in	1	106201	CAD	3/8	0.3735	0.372	0.5	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-075	TACS-37-050	TACS-37-075	T-Handle Pin - 300 Series SS Shank - 3/8 in X .75 in	1	106228	CAD	3/8	0.3735	0.372	0.75	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-100	TACS-37-050	TACS-37-100	T-Handle Pin - 300 Series SS Shank - 3/8 in X 1.00 in	1	106246	CAD	3/8	0.3735	0.372	1	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-125	TACS-37-050	TACS-37-125	T-Handle Pin - 300 Series SS Shank - 3/8 in X 1.25 in	1	106252	CAD	3/8	0.3735	0.372	1.25	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-150	TACS-37-050	TACS-37-150	T-Handle Pin - 300 Series SS Shank - 3/8 in X 1.50 in	1	106262	CAD	3/8	0.3735	0.372	1.5	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-175	TACS-37-050	TACS-37-175	T-Handle Pin - 300 Series SS Shank - 3/8 in X 1.75 in	1	106278	CAD	3/8	0.3735	0.372	1.75	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-200	TACS-37-050	TACS-37-200	T-Handle Pin - 300 Series SS Shank - 3/8 in X 2.00 in	1	106298	CAD	3/8	0.3735	0.372	2	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-250	TACS-37-050	TACS-37-250	T-Handle Pin - 300 Series SS Shank - 3/8 in X 2.50 in	1	106305	CAD	3/8	0.3735	0.372	2.5	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-300	TACS-37-050	TACS-37-300	T-Handle Pin - 300 Series SS Shank - 3/8 in X 3.00 in	1	106313	CAD	3/8	0.3735	0.372	3	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-350	TACS-37-050	TACS-37-350	T-Handle Pin - 300 Series SS Shank - 3/8 in X 3.50 in	1	106318	CAD	3/8	0.3735	0.372	3.5	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-37-400	TACS-37-050	TACS-37-400	T-Handle Pin - 300 Series SS Shank - 3/8 in X 4.00 in	1	106340	CAD	3/8	0.3735	0.372	4	0.44	0.365	1.37	0.56	0.87	0.29	2
TACS-50-100	TACS-50-100	TACS-50-100	T-Handle Pin - 300 Series SS Shank - 1/2 in X 1.00 in	1	106361	CAD	1/2	0.4985	0.497	1	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-125	TACS-50-100	TACS-50-125	T-Handle Pin - 300 Series SS Shank - 1/2 in X 1.25 in	1	106369	CAD	1/2	0.4985	0.497	1.25	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-150	TACS-50-100	TACS-50-150	T-Handle Pin - 300 Series SS Shank - 1/2 in X 1.50 in	1	106379	CAD	1/2	0.4985	0.497	1.5	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-175	TACS-50-100	TACS-50-175	T-Handle Pin - 300 Series SS Shank - 1/2 in X 1.75 in	1	106399	CAD	1/2	0.4985	0.497	1.75	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-200	TACS-50-100	TACS-50-200	T-Handle Pin - 300 Series SS Shank - 1/2 in X 2.00 in	1	106409	CAD	1/2	0.4985	0.497	2	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-250	TACS-50-100	TACS-50-250	T-Handle Pin - 300 Series SS Shank - 1/2 in X 2.50 in	1	106423	CAD	1/2	0.4985	0.497	2.5	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-300	TACS-50-100	TACS-50-300	T-Handle Pin - 300 Series SS Shank - 1/2 in X 3.00 in	1	106445	CAD	1/2	0.4985	0.497	3	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-350	TACS-50-100	TACS-50-350	T-Handle Pin - 300 Series SS Shank - 1/2 in X 3.50 in	1	106455	CAD	1/2	0.4985	0.497	3.5	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-400	TACS-50-100	TACS-50-400	T-Handle Pin - 300 Series SS Shank - 1/2 in X 4.00 in	1	106463	CAD	1/2	0.4985	0.497	4	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-450	TACS-50-100	TACS-50-450	T-Handle Pin - 300 Series SS Shank - 1/2 in X 4.50 in	1	106489	CAD	1/2	0.4985	0.497	4.5	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-500	TACS-50-100	TACS-50-500	T-Handle Pin - 300 Series SS Shank - 1/2 in X 5.00 in	1	106499	CAD	1/2	0.4985	0.497	5	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-550	TACS-50-100	TACS-50-550	T-Handle Pin - 300 Series SS Shank - 1/2 in X 5.50 in	1	106508	CAD	1/2	0.4985	0.497	5.5	0.594	0.46	1.6	0.72	1.00	0.42	2.25
TACS-50-600	TACS-50-100	TACS-50-600	T-Handle Pin - 300 Series SS Shank - 1/2 in X 6.00 in	1	106525	CAD	1/2	0.4985	0.497	6	0.594	0.46	1.6	0.72	1.00	0.42	2.25
