MLACH-05-010 |
MLACH-05-010 |
MLACH-05-010 |

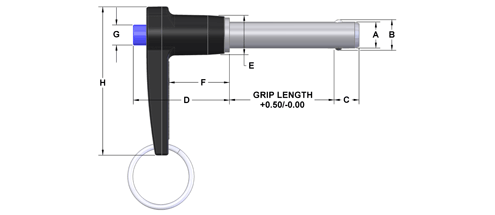

L-Handle Pin - 17-4 SS Shank - 5mm Dia X 10mm |
1 |
105515 |
CAD |
|
5 | 4.96 | 4.92 | 10 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-015 |
MLACH-05-010 |
MLACH-05-015 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 15mm |
1 |
105543 |
CAD |
|
5 | 4.96 | 4.92 | 15 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-020 |
MLACH-05-010 |
MLACH-05-020 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 20mm |
1 |
105579 |
CAD |
|
5 | 4.96 | 4.92 | 20 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-025 |
MLACH-05-010 |
MLACH-05-025 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 25mm |
1 |
105607 |
CAD |
|
5 | 4.96 | 4.92 | 25 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-030 |
MLACH-05-010 |
MLACH-05-030 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 30mm |
1 |
105623 |
CAD |
|
5 | 4.96 | 4.92 | 30 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-035 |
MLACH-05-010 |
MLACH-05-035 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 35mm |
1 |
105649 |
CAD |
|
5 | 4.96 | 4.92 | 35 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-040 |
MLACH-05-010 |
MLACH-05-040 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 40mm |
1 |
105666 |
CAD |
|
5 | 4.96 | 4.92 | 40 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-045 |
MLACH-05-010 |
MLACH-05-045 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 45mm |
1 |
105688 |
CAD |
|
5 | 4.96 | 4.92 | 45 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-050 |
MLACH-05-010 |
MLACH-05-050 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 50mm |
1 |
105720 |
CAD |
|
5 | 4.96 | 4.92 | 50 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-060 |
MLACH-05-010 |
MLACH-05-060 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 60mm |
1 |
105736 |
CAD |
|
5 | 4.96 | 4.92 | 60 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-070 |
MLACH-05-010 |
MLACH-05-070 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 70mm |
1 |
105787 |
CAD |
|
5 | 4.96 | 4.92 | 70 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-080 |
MLACH-05-010 |
MLACH-05-080 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 80mm |
1 |
105808 |
CAD |
|
5 | 4.96 | 4.92 | 80 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-090 |
MLACH-05-010 |
MLACH-05-090 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 90mm |
1 |
105820 |
CAD |
|
5 | 4.96 | 4.92 | 90 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-05-100 |
MLACH-05-010 |
MLACH-05-100 |
L-Handle Pin - 17-4 SS Shank - 5mm Dia X 100mm |
1 |
105853 |
CAD |
|
5 | 4.96 | 4.92 | 100 | 5.54 | 6 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-010 |
MLACH-06-010 |
MLACH-06-010 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 10mm |
1 |
105918 |
CAD |
|
6 | 5.96 | 5.92 | 10 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-015 |
MLACH-06-010 |
MLACH-06-015 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 15mm |
1 |
105925 |
CAD |
|
6 | 5.96 | 5.92 | 15 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-020 |
MLACH-06-010 |
MLACH-06-020 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 20mm |
1 |
105939 |
CAD |
|
6 | 5.96 | 5.92 | 20 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-025 |
MLACH-06-010 |
MLACH-06-025 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 25mm |
1 |
105973 |
CAD |
|
6 | 5.96 | 5.92 | 25 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-030 |
MLACH-06-010 |
MLACH-06-030 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 30mm |
1 |
105996 |
CAD |
|
6 | 5.96 | 5.92 | 30 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-035 |
MLACH-06-010 |
MLACH-06-035 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 35mm |
1 |
106028 |
CAD |
|
6 | 5.96 | 5.92 | 35 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-040 |
MLACH-06-010 |
MLACH-06-040 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 40mm |
1 |
106075 |
CAD |
|
6 | 5.96 | 5.92 | 40 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-045 |
MLACH-06-010 |
MLACH-06-045 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 45mm |
1 |
106095 |
CAD |
|
6 | 5.96 | 5.92 | 45 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-050 |
MLACH-06-010 |
MLACH-06-050 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 50mm |
1 |
106110 |
CAD |
|
6 | 5.96 | 5.92 | 50 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-060 |
MLACH-06-010 |
MLACH-06-060 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 60mm |
1 |
106154 |
CAD |
|
6 | 5.96 | 5.92 | 60 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-070 |
MLACH-06-010 |
MLACH-06-070 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 70mm |
1 |
106179 |
CAD |
|
6 | 5.96 | 5.92 | 70 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-080 |
MLACH-06-010 |
MLACH-06-080 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 80mm |
1 |
106193 |
CAD |
|
6 | 5.96 | 5.92 | 80 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-090 |
MLACH-06-010 |
MLACH-06-090 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 90mm |
1 |
106214 |
CAD |
|
6 | 5.96 | 5.92 | 90 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-06-100 |
MLACH-06-010 |
MLACH-06-100 |
L-Handle Pin - 17-4 SS Shank - 6mm Dia X 100mm |
1 |
106253 |
CAD |
|
6 | 5.96 | 5.92 | 100 | 6.99 | 7 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-010 |
MLACH-08-010 |
MLACH-08-010 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 10mm |
1 |
106274 |
CAD |
|
8 | 7.96 | 7.92 | 10 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-015 |
MLACH-08-010 |
MLACH-08-015 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 15mm |
1 |
106299 |
CAD |
|
8 | 7.96 | 7.92 | 15 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-020 |
MLACH-08-010 |
MLACH-08-020 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 20mm |
1 |
106319 |
CAD |
|
8 | 7.96 | 7.92 | 20 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-025 |
MLACH-08-010 |
MLACH-08-025 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 25mm |
1 |
106334 |
CAD |
|
8 | 7.96 | 7.92 | 25 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-030 |
MLACH-08-010 |
MLACH-08-030 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 30mm |
1 |
106370 |
CAD |
|
8 | 7.96 | 7.92 | 30 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-035 |
MLACH-08-010 |
MLACH-08-035 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 35mm |
1 |
106382 |
CAD |
|
8 | 7.96 | 7.92 | 35 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-040 |
MLACH-08-010 |
MLACH-08-040 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 40mm |
1 |
106393 |
CAD |
|
8 | 7.96 | 7.92 | 40 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-045 |
MLACH-08-010 |
MLACH-08-045 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 45mm |
1 |
106414 |
CAD |
|
8 | 7.96 | 7.92 | 45 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-050 |
MLACH-08-010 |
MLACH-08-050 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 50mm |
1 |
106432 |
CAD |
|
8 | 7.96 | 7.92 | 50 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-060 |
MLACH-08-010 |
MLACH-08-060 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 60mm |
1 |
106466 |
CAD |
|
8 | 7.96 | 7.92 | 60 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-070 |
MLACH-08-010 |
MLACH-08-070 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 70mm |
1 |
106496 |
CAD |
|
8 | 7.96 | 7.92 | 70 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-080 |
MLACH-08-010 |
MLACH-08-080 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 80mm |
1 |
106505 |
CAD |
|
8 | 7.96 | 7.92 | 80 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-090 |
MLACH-08-010 |
MLACH-08-090 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 90mm |
1 |
106521 |
CAD |
|
8 | 7.96 | 7.92 | 90 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-08-100 |
MLACH-08-010 |
MLACH-08-100 |
L-Handle Pin - 17-4 SS Shank - 8mm Dia X 100mm |
1 |
106556 |
CAD |
|
8 | 7.96 | 7.92 | 100 | 9.42 | 8 | 30.7 | 11.9 | 19.3 | 5.8 | 46.7 |
MLACH-10-015 |
MLACH-10-015 |
MLACH-10-015 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 15mm |
1 |
106576 |
CAD |
|
10 | 9.96 | 9.92 | 15 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-020 |
MLACH-10-015 |
MLACH-10-020 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 20mm |
1 |
106599 |
CAD |
|
10 | 9.96 | 9.92 | 20 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-025 |
MLACH-10-015 |
MLACH-10-025 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 25mm |
1 |
105009 |
CAD |
|
10 | 9.96 | 9.92 | 25 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-030 |
MLACH-10-015 |
MLACH-10-030 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 30mm |
1 |
105024 |
CAD |
|
10 | 9.96 | 9.92 | 30 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-035 |
MLACH-10-015 |
MLACH-10-035 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 35mm |
1 |
105057 |
CAD |
|
10 | 9.96 | 9.92 | 35 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-040 |
MLACH-10-015 |
MLACH-10-040 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 40mm |
1 |
105071 |
CAD |
|
10 | 9.96 | 9.92 | 40 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-045 |
MLACH-10-015 |
MLACH-10-045 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 45mm |
1 |
105095 |
CAD |
|
10 | 9.96 | 9.92 | 45 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-050 |
MLACH-10-015 |
MLACH-10-050 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 50mm |
1 |
105117 |
CAD |
|
10 | 9.96 | 9.92 | 50 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-060 |
MLACH-10-015 |
MLACH-10-060 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 60mm |
1 |
105152 |
CAD |
|
10 | 9.96 | 9.92 | 60 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-070 |
MLACH-10-015 |
MLACH-10-070 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 70mm |
1 |
105167 |
CAD |
|
10 | 9.96 | 9.92 | 70 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-080 |
MLACH-10-015 |
MLACH-10-080 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 80mm |
1 |
105192 |
CAD |
|
10 | 9.96 | 9.92 | 80 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-090 |
MLACH-10-015 |
MLACH-10-090 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 90mm |
1 |
105222 |
CAD |
|
10 | 9.96 | 9.92 | 90 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-10-100 |
MLACH-10-015 |
MLACH-10-100 |
L-Handle Pin - 17-4 SS Shank - 10mm Dia X 100mm |
1 |
105241 |
CAD |
|
10 | 9.96 | 9.92 | 100 | 11.86 | 9 | 34.8 | 14.2 | 22.1 | 7.4 | 54.1 |
MLACH-12-020 |
MLACH-12-020 |
MLACH-12-020 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 20mm |
1 |
105260 |
CAD |
|
12 | 11.96 | 11.92 | 20 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-025 |
MLACH-12-020 |
MLACH-12-025 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 25mm |
1 |
105275 |
CAD |
|
12 | 11.96 | 11.92 | 25 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-030 |
MLACH-12-020 |
MLACH-12-030 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 30mm |
1 |
105314 |
CAD |
|
12 | 11.96 | 11.92 | 30 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-035 |
MLACH-12-020 |
MLACH-12-035 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 35mm |
1 |
105321 |
CAD |
|
12 | 11.96 | 11.92 | 35 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-040 |
MLACH-12-020 |
MLACH-12-040 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 40mm |
1 |
105328 |
CAD |
|
12 | 11.96 | 11.92 | 40 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-045 |
MLACH-12-020 |
MLACH-12-045 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 45mm |
1 |
105359 |
CAD |
|
12 | 11.96 | 11.92 | 45 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-050 |
MLACH-12-020 |
MLACH-12-050 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 50mm |
1 |
105387 |
CAD |
|
12 | 11.96 | 11.92 | 50 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-060 |
MLACH-12-020 |
MLACH-12-060 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 60mm |
1 |
105434 |
CAD |
|
12 | 11.96 | 11.92 | 60 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-070 |
MLACH-12-020 |
MLACH-12-070 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 70mm |
1 |
105458 |
CAD |
|
12 | 11.96 | 11.92 | 70 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-080 |
MLACH-12-020 |
MLACH-12-080 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 80mm |
1 |
105469 |
CAD |
|
12 | 11.96 | 11.92 | 80 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-090 |
MLACH-12-020 |
MLACH-12-090 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 90mm |
1 |
105489 |
CAD |
|
12 | 11.96 | 11.92 | 90 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-12-100 |
MLACH-12-020 |
MLACH-12-100 |
L-Handle Pin - 17-4 SS Shank - 12mm Dia X 100mm |
1 |
105509 |
CAD |
|
12 | 11.96 | 11.92 | 100 | 14.45 | 10 | 40.6 | 18.3 | 25.4 | 10.7 | 60.2 |
MLACH-16-025 |
MLACH-16-025 |
MLACH-16-025 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 25mm |
1 |
105530 |
CAD |
|
16 | 15.96 | 15.92 | 25 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-030 |
MLACH-16-025 |
MLACH-16-030 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 30mm |
1 |
105561 |
CAD |
|
16 | 15.96 | 15.92 | 30 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-035 |
MLACH-16-025 |
MLACH-16-035 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 35mm |
1 |
105582 |
CAD |
|
16 | 15.96 | 15.92 | 35 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-040 |
MLACH-16-025 |
MLACH-16-040 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 40mm |
1 |
105608 |
CAD |
|
16 | 15.96 | 15.92 | 40 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-045 |
MLACH-16-025 |
MLACH-16-045 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 45mm |
1 |
105646 |
CAD |
|
16 | 15.96 | 15.92 | 45 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-050 |
MLACH-16-025 |
MLACH-16-050 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 50mm |
1 |
105713 |
CAD |
|
16 | 15.96 | 15.92 | 50 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-060 |
MLACH-16-025 |
MLACH-16-060 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 60mm |
1 |
105758 |
CAD |
|
16 | 15.96 | 15.92 | 60 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-070 |
MLACH-16-025 |
MLACH-16-070 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 70mm |
1 |
105764 |
CAD |
|
16 | 15.96 | 15.92 | 70 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-080 |
MLACH-16-025 |
MLACH-16-080 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 80mm |
1 |
105793 |
CAD |
|
16 | 15.96 | 15.92 | 80 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-090 |
MLACH-16-025 |
MLACH-16-090 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 90mm |
1 |
105814 |
CAD |
|
16 | 15.96 | 15.92 | 90 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
MLACH-16-100 |
MLACH-16-025 |
MLACH-16-100 |
L-Handle Pin - 17-4 SS Shank - 16mm Dia X 100mm |
1 |
105828 |
CAD |
|
16 | 15.96 | 15.92 | 100 | 19.00 | 14 | 45.0 | 23.9 | 28.2 | 13.7 | 68.3 |
