Quick Release Ball Lock Pin - L-Handle - 17-4 SS Shank - Aluminum Handle - Inch (LACH)

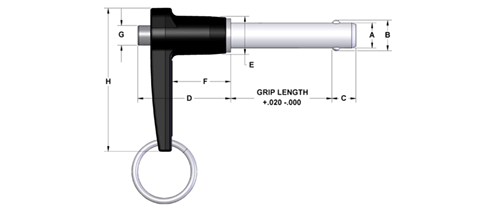

Drawing
Description
Description
These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The handles are made from 380 die cast aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders.
Pin Material Specifications
Generating CAD viewer. Please wait...
LACH-18-050
L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X .50 in
| Part Number | Model Name | SKU | Description | Brand | Product ID | CAD Model Link | Price Link | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LACH-18-050 | LACH-18-050 | LACH-18-050 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X .50 in | 1 | 104897 | CAD | 3/16 | 0.1885 | 0.1870 | 0.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-075 | LACH-18-050 | LACH-18-075 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X .75 in | 1 | 104914 | CAD | 3/16 | 0.1885 | 0.1870 | 0.75 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-100 | LACH-18-050 | LACH-18-100 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 1.00 in | 1 | 104928 | CAD | 3/16 | 0.1885 | 0.1870 | 1.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-125 | LACH-18-050 | LACH-18-125 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 1.25 in | 1 | 104964 | CAD | 3/16 | 0.1885 | 0.1870 | 1.25 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-150 | LACH-18-050 | LACH-18-150 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 1.50 in | 1 | 104973 | CAD | 3/16 | 0.1885 | 0.1870 | 1.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-175 | LACH-18-050 | LACH-18-175 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 1.75 in | 1 | 104986 | CAD | 3/16 | 0.1885 | 0.1870 | 1.75 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-200 | LACH-18-050 | LACH-18-200 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 2.00 in | 1 | 104996 | CAD | 3/16 | 0.1885 | 0.1870 | 2.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-250 | LACH-18-050 | LACH-18-250 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 2.50 in | 1 | 105015 | CAD | 3/16 | 0.1885 | 0.1870 | 2.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-300 | LACH-18-050 | LACH-18-300 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 3.00 in | 1 | 105022 | CAD | 3/16 | 0.1885 | 0.1870 | 3.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-350 | LACH-18-050 | LACH-18-350 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 3.50 in | 1 | 105028 | CAD | 3/16 | 0.1885 | 0.1870 | 3.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-18-400 | LACH-18-050 | LACH-18-400 | L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X 4.00 in | 1 | 105035 | CAD | 3/16 | 0.1885 | 0.1870 | 4.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| LACH-25-050 | LACH-25-050 | LACH-25-050 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X .50 in | 1 | 105047 | CAD | 1/4 | 0.2485 | 0.2470 | 0.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-075 | LACH-25-050 | LACH-25-075 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X .75 in | 1 | 105051 | CAD | 1/4 | 0.2485 | 0.2470 | 0.75 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-100 | LACH-25-050 | LACH-25-100 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 1.00 in | 1 | 105078 | CAD | 1/4 | 0.2485 | 0.2470 | 1.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-125 | LACH-25-050 | LACH-25-125 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 1.25 in | 1 | 105085 | CAD | 1/4 | 0.2485 | 0.2470 | 1.25 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-150 | LACH-25-050 | LACH-25-150 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 1.50 in | 1 | 105107 | CAD | 1/4 | 0.2485 | 0.2470 | 1.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-175 | LACH-25-050 | LACH-25-175 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 1.75 in | 1 | 105126 | CAD | 1/4 | 0.2485 | 0.2470 | 1.75 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-200 | LACH-25-050 | LACH-25-200 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 2.00 in | 1 | 105139 | CAD | 1/4 | 0.2485 | 0.2470 | 2.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-250 | LACH-25-050 | LACH-25-250 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 2.50 in | 1 | 105153 | CAD | 1/4 | 0.2485 | 0.2470 | 2.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-300 | LACH-25-050 | LACH-25-300 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 3.00 in | 1 | 105158 | CAD | 1/4 | 0.2485 | 0.2470 | 3.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-350 | LACH-25-050 | LACH-25-350 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 3.50 in | 1 | 105176 | CAD | 1/4 | 0.2485 | 0.2470 | 3.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-25-400 | LACH-25-050 | LACH-25-400 | L-Handle Pin - 17-4 SS Shank - 1/4 in Dia X 4.00 in | 1 | 105206 | CAD | 1/4 | 0.2485 | 0.2470 | 4.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-050 | LACH-31-050 | LACH-31-050 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X .50 in | 1 | 105216 | CAD | 5/16 | 0.3110 | 0.3095 | 0.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-075 | LACH-31-050 | LACH-31-075 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X .75 in | 1 | 105233 | CAD | 5/16 | 0.3110 | 0.3095 | 0.75 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-100 | LACH-31-050 | LACH-31-100 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 1.00 in | 1 | 105259 | CAD | 5/16 | 0.3110 | 0.3095 | 1.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-125 | LACH-31-050 | LACH-31-125 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 1.25 in | 1 | 105281 | CAD | 5/16 | 0.3110 | 0.3095 | 1.25 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-150 | LACH-31-050 | LACH-31-150 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 1.50 in | 1 | 105303 | CAD | 5/16 | 0.3110 | 0.3095 | 1.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-175 | LACH-31-050 | LACH-31-175 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 1.75 in | 1 | 105331 | CAD | 5/16 | 0.3110 | 0.3095 | 1.75 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-200 | LACH-31-050 | LACH-31-200 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 2.00 in | 1 | 105344 | CAD | 5/16 | 0.3110 | 0.3095 | 2.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-250 | LACH-31-050 | LACH-31-250 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 2.50 in | 1 | 105350 | CAD | 5/16 | 0.3110 | 0.3095 | 2.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-300 | LACH-31-050 | LACH-31-300 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 3.00 in | 1 | 105356 | CAD | 5/16 | 0.3110 | 0.3095 | 3.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-350 | LACH-31-050 | LACH-31-350 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 3.50 in | 1 | 105377 | CAD | 5/16 | 0.3110 | 0.3095 | 3.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-31-400 | LACH-31-050 | LACH-31-400 | L-Handle Pin - 17-4 SS Shank - 5/16 in Dia X 4.00 in | 1 | 105393 | CAD | 5/16 | 0.3110 | 0.3095 | 4.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| LACH-37-050 | LACH-37-050 | LACH-37-050 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X .50 in | 1 | 105404 | CAD | 3/8 | 0.3735 | 0.3720 | 0.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-075 | LACH-37-050 | LACH-37-075 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X .75 in | 1 | 105423 | CAD | 3/8 | 0.3735 | 0.3720 | 0.75 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-100 | LACH-37-050 | LACH-37-100 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 1.00 in | 1 | 105426 | CAD | 3/8 | 0.3735 | 0.3720 | 1.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-125 | LACH-37-050 | LACH-37-125 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 1.25 in | 1 | 105438 | CAD | 3/8 | 0.3735 | 0.3720 | 1.25 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-150 | LACH-37-050 | LACH-37-150 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 1.50 in | 1 | 105444 | CAD | 3/8 | 0.3735 | 0.3720 | 1.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-175 | LACH-37-050 | LACH-37-175 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 1.75 in | 1 | 105466 | CAD | 3/8 | 0.3735 | 0.3720 | 1.75 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-200 | LACH-37-050 | LACH-37-200 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 2.00 in | 1 | 105500 | CAD | 3/8 | 0.3735 | 0.3720 | 2.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-250 | LACH-37-050 | LACH-37-250 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 2.50 in | 1 | 105510 | CAD | 3/8 | 0.3735 | 0.3720 | 2.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-300 | LACH-37-050 | LACH-37-300 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 3.00 in | 1 | 105521 | CAD | 3/8 | 0.3735 | 0.3720 | 3.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-350 | LACH-37-050 | LACH-37-350 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 3.50 in | 1 | 105533 | CAD | 3/8 | 0.3735 | 0.3720 | 3.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-37-400 | LACH-37-050 | LACH-37-400 | L-Handle Pin - 17-4 SS Shank - 3/8 in Dia X 4.00 in | 1 | 105558 | CAD | 3/8 | 0.3735 | 0.3720 | 4.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| LACH-50-100 | LACH-50-100 | LACH-50-100 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 1.00 in | 1 | 105576 | CAD | 1/2 | 0.4985 | 0.4970 | 1.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-125 | LACH-50-100 | LACH-50-125 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 1.25 in | 1 | 105592 | CAD | 1/2 | 0.4985 | 0.4970 | 1.25 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-150 | LACH-50-100 | LACH-50-150 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 1.50 in | 1 | 105603 | CAD | 1/2 | 0.4985 | 0.4970 | 1.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-175 | LACH-50-100 | LACH-50-175 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 1.75 in | 1 | 105613 | CAD | 1/2 | 0.4985 | 0.4970 | 1.75 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-200 | LACH-50-100 | LACH-50-200 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 2.00 in | 1 | 105624 | CAD | 1/2 | 0.4985 | 0.4970 | 2.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-250 | LACH-50-100 | LACH-50-250 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 2.50 in | 1 | 105653 | CAD | 1/2 | 0.4985 | 0.4970 | 2.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-300 | LACH-50-100 | LACH-50-300 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 3.00 in | 1 | 105671 | CAD | 1/2 | 0.4985 | 0.4970 | 3.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-350 | LACH-50-100 | LACH-50-350 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 3.50 in | 1 | 105676 | CAD | 1/2 | 0.4985 | 0.4970 | 3.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-400 | LACH-50-100 | LACH-50-400 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 4.00 in | 1 | 105682 | CAD | 1/2 | 0.4985 | 0.4970 | 4.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-450 | LACH-50-100 | LACH-50-450 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 4.50 in | 1 | 105696 | CAD | 1/2 | 0.4985 | 0.4970 | 4.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-500 | LACH-50-100 | LACH-50-500 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 5.00 in | 1 | 105703 | CAD | 1/2 | 0.4985 | 0.4970 | 5.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-550 | LACH-50-100 | LACH-50-550 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 5.50 in | 1 | 105708 | CAD | 1/2 | 0.4985 | 0.4970 | 5.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-50-600 | LACH-50-100 | LACH-50-600 | L-Handle Pin - 17-4 SS Shank - 1/2 in Dia X 6.00 in | 1 | 105718 | CAD | 1/2 | 0.4985 | 0.4970 | 6.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| LACH-62-150 | LACH-62-100 | LACH-62-150 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 1.50 in | 1 | 105723 | CAD | 5/8 | 0.6235 | 0.6220 | 1.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-175 | LACH-62-100 | LACH-62-175 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 1.75 in | 1 | 105742 | CAD | 5/8 | 0.6235 | 0.6220 | 1.75 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-200 | LACH-62-100 | LACH-62-200 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 2.00 in | 1 | 105751 | CAD | 5/8 | 0.6235 | 0.6220 | 2.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-250 | LACH-62-100 | LACH-62-250 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 2.50 in | 1 | 105772 | CAD | 5/8 | 0.6235 | 0.6220 | 2.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-300 | LACH-62-100 | LACH-62-300 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 3.00 in | 1 | 105779 | CAD | 5/8 | 0.6235 | 0.6220 | 3.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-350 | LACH-62-100 | LACH-62-350 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 3.50 in | 1 | 105796 | CAD | 5/8 | 0.6235 | 0.6220 | 3.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-400 | LACH-62-100 | LACH-62-400 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 4.00 in | 1 | 105807 | CAD | 5/8 | 0.6235 | 0.6220 | 4.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-450 | LACH-62-100 | LACH-62-450 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 4.50 in | 1 | 105827 | CAD | 5/8 | 0.6235 | 0.6220 | 4.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-500 | LACH-62-100 | LACH-62-500 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 5.00 in | 1 | 105838 | CAD | 5/8 | 0.6235 | 0.6220 | 5.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-550 | LACH-62-100 | LACH-62-550 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 5.50 in | 1 | 105850 | CAD | 5/8 | 0.6235 | 0.6220 | 5.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| LACH-62-600 | LACH-62-100 | LACH-62-600 | L-Handle Pin - 17-4 SS Shank - 5/8 in Dia X 6.00 in | 1 | 104569 | CAD | 5/8 | 0.6235 | 0.6220 | 6.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 |
17-4 Stainless Shank - Aluminum Handle (Inch)
BUY | CAD | Part Number | Nominal Diameter in | A Max in | A Min in | Grip Length in +.020/-.000 | B in ±.005 | C in +.000/-.030 | D in | E in | F in | G in | H in |
| CAD | LACH-18-050 | 3/16 | 0.1885 | 0.1870 | 0.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-075 | 3/16 | 0.1885 | 0.1870 | 0.75 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-100 | 3/16 | 0.1885 | 0.1870 | 1.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-125 | 3/16 | 0.1885 | 0.1870 | 1.25 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-150 | 3/16 | 0.1885 | 0.1870 | 1.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-175 | 3/16 | 0.1885 | 0.1870 | 1.75 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-200 | 3/16 | 0.1885 | 0.1870 | 2.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-250 | 3/16 | 0.1885 | 0.1870 | 2.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-300 | 3/16 | 0.1885 | 0.1870 | 3.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-350 | 3/16 | 0.1885 | 0.1870 | 3.50 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-18-400 | 3/16 | 0.1885 | 0.1870 | 4.00 | 0.220 | 0.260 | 1.23 | 0.47 | 0.77 | 0.23 | 1.73 | |
| CAD | LACH-25-050 | 1/4 | 0.2485 | 0.2470 | 0.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-075 | 1/4 | 0.2485 | 0.2470 | 0.75 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-100 | 1/4 | 0.2485 | 0.2470 | 1.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-125 | 1/4 | 0.2485 | 0.2470 | 1.25 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-150 | 1/4 | 0.2485 | 0.2470 | 1.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-175 | 1/4 | 0.2485 | 0.2470 | 1.75 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-200 | 1/4 | 0.2485 | 0.2470 | 2.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-250 | 1/4 | 0.2485 | 0.2470 | 2.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-300 | 1/4 | 0.2485 | 0.2470 | 3.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-350 | 1/4 | 0.2485 | 0.2470 | 3.50 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-25-400 | 1/4 | 0.2485 | 0.2470 | 4.00 | 0.289 | 0.290 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-050 | 5/16 | 0.3110 | 0.3095 | 0.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-075 | 5/16 | 0.3110 | 0.3095 | 0.75 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-100 | 5/16 | 0.3110 | 0.3095 | 1.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-125 | 5/16 | 0.3110 | 0.3095 | 1.25 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-150 | 5/16 | 0.3110 | 0.3095 | 1.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-175 | 5/16 | 0.3110 | 0.3095 | 1.75 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-200 | 5/16 | 0.3110 | 0.3095 | 2.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-250 | 5/16 | 0.3110 | 0.3095 | 2.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-300 | 5/16 | 0.3110 | 0.3095 | 3.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-350 | 5/16 | 0.3110 | 0.3095 | 3.50 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-31-400 | 5/16 | 0.3110 | 0.3095 | 4.00 | 0.375 | 0.330 | 1.23 | 0.47 | 0.77 | 0.23 | 1.84 | |
| CAD | LACH-37-050 | 3/8 | 0.3735 | 0.3720 | 0.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-075 | 3/8 | 0.3735 | 0.3720 | 0.75 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-100 | 3/8 | 0.3735 | 0.3720 | 1.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-125 | 3/8 | 0.3735 | 0.3720 | 1.25 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-150 | 3/8 | 0.3735 | 0.3720 | 1.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-175 | 3/8 | 0.3735 | 0.3720 | 1.75 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-200 | 3/8 | 0.3735 | 0.3720 | 2.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-250 | 3/8 | 0.3735 | 0.3720 | 2.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-300 | 3/8 | 0.3735 | 0.3720 | 3.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-350 | 3/8 | 0.3735 | 0.3720 | 3.50 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-37-400 | 3/8 | 0.3735 | 0.3720 | 4.00 | 0.440 | 0.365 | 1.38 | 0.56 | 0.88 | 0.29 | 2.00 | |
| CAD | LACH-50-100 | 1/2 | 0.4985 | 0.4970 | 1.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-125 | 1/2 | 0.4985 | 0.4970 | 1.25 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-150 | 1/2 | 0.4985 | 0.4970 | 1.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-175 | 1/2 | 0.4985 | 0.4970 | 1.75 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-200 | 1/2 | 0.4985 | 0.4970 | 2.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-250 | 1/2 | 0.4985 | 0.4970 | 2.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-300 | 1/2 | 0.4985 | 0.4970 | 3.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-350 | 1/2 | 0.4985 | 0.4970 | 3.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-400 | 1/2 | 0.4985 | 0.4970 | 4.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-450 | 1/2 | 0.4985 | 0.4970 | 4.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-500 | 1/2 | 0.4985 | 0.4970 | 5.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-550 | 1/2 | 0.4985 | 0.4970 | 5.50 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-50-600 | 1/2 | 0.4985 | 0.4970 | 6.00 | 0.594 | 0.460 | 1.60 | 0.72 | 0.94 | 0.42 | 2.23 | |
| CAD | LACH-62-150 | 5/8 | 0.6235 | 0.6220 | 1.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-175 | 5/8 | 0.6235 | 0.6220 | 1.75 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-200 | 5/8 | 0.6235 | 0.6220 | 2.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-250 | 5/8 | 0.6235 | 0.6220 | 2.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-300 | 5/8 | 0.6235 | 0.6220 | 3.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-350 | 5/8 | 0.6235 | 0.6220 | 3.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-400 | 5/8 | 0.6235 | 0.6220 | 4.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-450 | 5/8 | 0.6235 | 0.6220 | 4.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-500 | 5/8 | 0.6235 | 0.6220 | 5.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-550 | 5/8 | 0.6235 | 0.6220 | 5.50 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 | |
| CAD | LACH-62-600 | 5/8 | 0.6235 | 0.6220 | 6.00 | 0.750 | 0.580 | 1.77 | 0.94 | 1.11 | 0.54 | 2.69 |
Pageof1Records per page:Displaying 1 to 68 of 68 items.
