DuraSoft® Roll Only Rollers - Steel Insert - 1-1/4 in I.D. - Inch

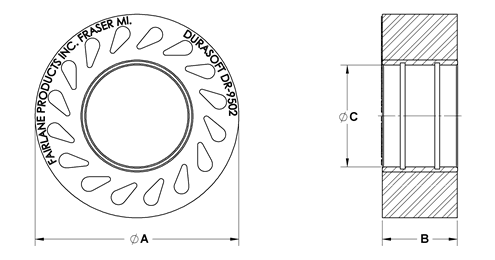

Drawing
Description
Media

Description

DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert. The steel insert provides rigidity and allows the user to customize the mounting configuration based on the application. The "teardrop" holes allow the roller to flex for firm yet non-damaging contact. Rollers are available in neoprene, nitrile and urethane materials with hardness ranging from 20 to 95 durometer.

Roller Material Information

DR-9502-35UR-R

DuraSoft® Roller - Standard Roll Only - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4
DR-9502-35UR-R	DR-9502-35	DR-9502-35UR-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	112645	CAD	2.50	.92	1.252/1.256	Urethane	35
DR-9502-60UR-R	DR-9502-35	DR-9502-60UR-R	DuraSoft® Roller - Standard Roll Only - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	112668	CAD	2.50	.92	1.252/1.256	Urethane	60
DR-9502-80UR-R	DR-9502-35	DR-9502-80UR-R	DuraSoft® Roller - Standard Roll Only - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	112674	CAD	2.50	.92	1.252/1.256	Urethane	80
DR-9502-95UR-R	DR-9502-35	DR-9502-95UR-R	DuraSoft® Roller - Standard Roll Only - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	112697	CAD	2.50	.92	1.252/1.256	Urethane	95
DR-502-35UR-R	DR-9502-35	DR-502-35UR-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	113806	CAD	2.50	1.94	1.252/1.256	Urethane	35
DR-502-60UR-R	DR-9502-35	DR-502-60UR-R	DuraSoft® Roller - Standard Roll Only - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112507	CAD	2.50	1.94	1.252/1.256	Urethane	60
DR-502-80UR-R	DR-9502-35	DR-502-80UR-R	DuraSoft® Roller - Standard Roll Only - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112532	CAD	2.50	1.94	1.252/1.256	Urethane	80
DR-502-95UR-R	DR-9502-35	DR-502-95UR-R	DuraSoft® Roller - Standard Roll Only - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112543	CAD	2.50	1.94	1.252/1.256	Urethane	95
DR-9754-20-R	DR-9754-20	DR-9754-20-R	DuraSoft® Roller - Standard Roll Only - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	112720	CAD	4.00	.92	1.252/1.256	Neoprene	20
DR-9754-35-R	DR-9754-20	DR-9754-35-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	112734	CAD	4.00	.92	1.252/1.256	Neoprene	35
DR-9754-20W-R	DR-9754-20	DR-9754-20W-R	DuraSoft® Roller - Standard Roll Only - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	112722	CAD	4.00	.92	1.252/1.256	Nitrile	20
DR-9754-35W-R	DR-9754-20	DR-9754-35W-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	112758	CAD	4.00	.92	1.252/1.256	Nitrile	35
DR-9754-35UR-R	DR-9754-20	DR-9754-35UR-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	112740	CAD	4.00	.92	1.252/1.256	Urethane	35
DR-9754-60UR-R	DR-9754-20	DR-9754-60UR-R	DuraSoft® Roller - Standard Roll Only - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	112766	CAD	4.00	.92	1.252/1.256	Urethane	60
DR-9754-80UR-R	DR-9754-20	DR-9754-80UR-R	DuraSoft® Roller - Standard Roll Only - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	112803	CAD	4.00	.92	1.252/1.256	Urethane	80
DR-9754-95UR-R	DR-9754-20	DR-9754-95UR-R	DuraSoft® Roller - Standard Roll Only - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	112822	CAD	4.00	.92	1.252/1.256	Urethane	95
DR-754-20-R	DR-9754-20	DR-754-20-R	DuraSoft® Roller - Standard Roll Only - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	112558	CAD	4.00	1.94	1.252/1.256	Neoprene	20
DR-754-35-R	DR-9754-20	DR-754-35-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	112568	CAD	4.00	1.94	1.252/1.256	Neoprene	35
DR-754-20W-R	DR-9754-20	DR-754-20W-R	DuraSoft® Roller - Standard Roll Only - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	112563	CAD	4.00	1.94	1.252/1.256	Nitrile	20
DR-754-35W-R	DR-9754-20	DR-754-35W-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	112585	CAD	4.00	1.94	1.252/1.256	Nitrile	35
DR-754-35UR-R	DR-9754-20	DR-754-35UR-R	DuraSoft® Roller - Standard Roll Only - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	112574	CAD	4.00	1.94	1.252/1.256	Urethane	35
DR-754-60UR-R	DR-9754-20	DR-754-60UR-R	DuraSoft® Roller - Standard Roll Only - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	112587	CAD	4.00	1.94	1.252/1.256	Urethane	60
DR-754-80UR-R	DR-9754-20	DR-754-80UR-R	DuraSoft® Roller - Standard Roll Only - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	112611	CAD	4.00	1.94	1.252/1.256	Urethane	80
DR-754-95UR-R	DR-9754-20	DR-754-95UR-R	DuraSoft® Roller - Standard Roll Only - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	112619	CAD	4.00	1.94	1.252/1.256	Urethane	95
