Solid Roll Only Rollers - Steel Insert - 1-1/4 in I.D. - Inch

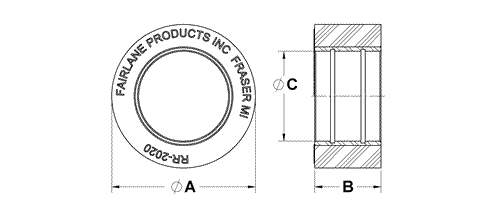

Drawing
Description
Media

Description

Solid rollers have a smooth surface and are permanently bonded to a steel insert. The steel insert provides rigidity and allows the user to customize the mounting configuration based on the application. Rollers are available in neoprene, nitrile and urethane materials with hardness ranging from 20 to 95 durometer. Line drawings shown are not proportional for all parts.

Roller Material Information

RR-92020-20-R

Solid Roller - Standard Roll Only - 20 Dur Neoprene - 2.00 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4
RR-92020-20-R	RR-92020-20	RR-92020-20-R	Solid Roller - Standard Roll Only - 20 Dur Neoprene - 2.00 in Dia X 0.92 in Wide	1	111331	CAD	2.00	.92	1.252/1.256	Neoprene	20
RR-92020-35-R	RR-92020-20	RR-92020-35-R	Solid Roller - Standard Roll Only - 35 Dur Neoprene - 2.00 in Dia X 0.92 in Wide	1	111381	CAD	2.00	.92	1.252/1.256	Neoprene	35
RR-92020-60-R	RR-92020-20	RR-92020-60-R	Solid Roller - Standard Roll Only - 60 Dur Neoprene - 2.00 in Dia X 0.92 in Wide	1	111405	CAD	2.00	.92	1.252/1.256	Neoprene	60
RR-92020-80-R	RR-92020-20	RR-92020-80-R	Solid Roller - Standard Roll Only - 80 Dur Neoprene - 2.00 in Dia X 0.92 in Wide	1	111429	CAD	2.00	.92	1.252/1.256	Neoprene	80
RR-92020-20W-R	RR-92020-20	RR-92020-20W-R	Solid Roller - Standard Roll Only - 20 Dur Nitrile - 2.00 in Dia X 0.92 in Wide	1	111353	CAD	2.00	.92	1.252/1.256	Nitrile	20
RR-92020-35W-R	RR-92020-20	RR-92020-35W-R	Solid Roller - Standard Roll Only - 35 Dur Nitrile - 2.00 in Dia X 0.92 in Wide	1	111404	CAD	2.00	.92	1.252/1.256	Nitrile	35
RR-92020-60W-R	RR-92020-20	RR-92020-60W-R	Solid Roller - Standard Roll Only - 60 Dur Nitrile - 2.00 in Dia X 0.92 in Wide	1	111427	CAD	2.00	.92	1.252/1.256	Nitrile	60
RR-92020-80W-R	RR-92020-20	RR-92020-80W-R	Solid Roller - Standard Roll Only - 80 Dur Nitrile - 2.00 in Dia X 0.92 in Wide	1	111441	CAD	2.00	.92	1.252/1.256	Nitrile	80
RR-92020-35UR-R	RR-92020-20	RR-92020-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 2.00 in Dia X 0.92 in Wide	1	111389	CAD	2.00	.92	1.252/1.256	Urethane	35
RR-92020-60UR-R	RR-92020-20	RR-92020-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 2.00 in Dia X 0.92 in Wide	1	111409	CAD	2.00	.92	1.252/1.256	Urethane	60
RR-92020-80UR-R	RR-92020-20	RR-92020-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 2.00 in Dia X 0.92 in Wide	1	111433	CAD	2.00	.92	1.252/1.256	Urethane	80
RR-92020-95UR-R	RR-92020-20	RR-92020-95UR-R	Solid Roller - Standard Roll Only - 95 Dur Urethane - 2.00 in Dia X 0.92 in Wide	1	111455	CAD	2.00	.92	1.252/1.256	Urethane	95
RR-2020-20-R	RR-92020-20	RR-2020-20-R	Solid Roller - Standard Roll Only - 20 Dur Neoprene - 2.00 in Dia X 1.94 in Wide	1	111444	CAD	2.00	1.94	1.252/1.256	Neoprene	20
RR-2020-35-R	RR-92020-20	RR-2020-35-R	Solid Roller - Standard Roll Only - 35 Dur Neoprene - 2.00 in Dia X 1.94 in Wide	1	111447	CAD	2.00	1.94	1.252/1.256	Neoprene	35
RR-2020-60-R	RR-92020-20	RR-2020-60-R	Solid Roller - Standard Roll Only - 60 Dur Neoprene - 2.00 in Dia X 1.94 in Wide	1	111470	CAD	2.00	1.94	1.252/1.256	Neoprene	60
RR-2020-80-R	RR-92020-20	RR-2020-80-R	Solid Roller - Standard Roll Only - 80 Dur Neoprene - 2.00 in Dia X 1.94 in Wide	1	110854	CAD	2.00	1.94	1.252/1.256	Neoprene	80
RR-2020-20W-R	RR-92020-20	RR-2020-20W-R	Solid Roller - Standard Roll Only - 20 Dur Nitrile - 2.00 in Dia X 1.94 in Wide	1	111446	CAD	2.00	1.94	1.252/1.256	Nitrile	20
RR-2020-35W-R	RR-92020-20	RR-2020-35W-R	Solid Roller - Standard Roll Only - 35 Dur Nitrile - 2.00 in Dia X 1.94 in Wide	1	111454	CAD	2.00	1.94	1.252/1.256	Nitrile	35
RR-2020-60W-R	RR-92020-20	RR-2020-60W-R	Solid Roller - Standard Roll Only - 60 Dur Nitrile - 2.00 in Dia X 1.94 in Wide	1	110837	CAD	2.00	1.94	1.252/1.256	Nitrile	60
RR-2020-80W-R	RR-92020-20	RR-2020-80W-R	Solid Roller - Standard Roll Only - 80 Dur Nitrile - 2.00 in Dia X 1.94 in Wide	1	110876	CAD	2.00	1.94	1.252/1.256	Nitrile	80
RR-2020-35UR-R	RR-92020-20	RR-2020-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 2.00 in Dia X 1.94 in Wide	1	111449	CAD	2.00	1.94	1.252/1.256	Urethane	35
RR-2020-60UR-R	RR-92020-20	RR-2020-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 2.00 in Dia X 1.94 in Wide	1	111473	CAD	2.00	1.94	1.252/1.256	Urethane	60
RR-2020-80UR-R	RR-92020-20	RR-2020-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 2.00 in Dia X 1.94 in Wide	1	110860	CAD	2.00	1.94	1.252/1.256	Urethane	80
RR-2020-95UR-R	RR-92020-20	RR-2020-95UR-R	Solid Roller - Standard Roll Only - 95 Dur Urethane - 2.00 in Dia X 1.94 in Wide	1	110880	CAD	2.00	1.94	1.252/1.256	Urethane	95
RR-9502-20-R	RR-9502-20	RR-9502-20-R	Solid Roller - Standard Roll Only - 20 Dur Neoprene - 2.50 in Dia X 0.92 in Wide	1	111467	CAD	2.50	.92	1.252/1.256	Neoprene	20
RR-9502-35-R	RR-9502-20	RR-9502-35-R	Solid Roller - Standard Roll Only - 35 Dur Neoprene - 2.50 in Dia X 0.92 in Wide	1	111485	CAD	2.50	.92	1.252/1.256	Neoprene	35
RR-9502-60-R	RR-9502-20	RR-9502-60-R	Solid Roller - Standard Roll Only - 60 Dur Neoprene - 2.50 in Dia X 0.92 in Wide	1	111530	CAD	2.50	.92	1.252/1.256	Neoprene	60
RR-9502-80-R	RR-9502-20	RR-9502-80-R	Solid Roller - Standard Roll Only - 80 Dur Neoprene - 2.50 in Dia X 0.92 in Wide	1	111567	CAD	2.50	.92	1.252/1.256	Neoprene	80
RR-9502-20W-R	RR-9502-20	RR-9502-20W-R	Solid Roller - Standard Roll Only - 20 Dur Nitrile - 2.50 in Dia X 0.92 in Wide	1	111482	CAD	2.50	.92	1.252/1.256	Nitrile	20
RR-9502-35W-R	RR-9502-20	RR-9502-35W-R	Solid Roller - Standard Roll Only - 35 Dur Nitrile - 2.50 in Dia X 0.92 in Wide	1	111513	CAD	2.50	.92	1.252/1.256	Nitrile	35
RR-9502-60W-R	RR-9502-20	RR-9502-60W-R	Solid Roller - Standard Roll Only - 60 Dur Nitrile - 2.50 in Dia X 0.92 in Wide	1	111562	CAD	2.50	.92	1.252/1.256	Nitrile	60
RR-9502-80W-R	RR-9502-20	RR-9502-80W-R	Solid Roller - Standard Roll Only - 80 Dur Nitrile - 2.50 in Dia X 0.92 in Wide	1	111573	CAD	2.50	.92	1.252/1.256	Nitrile	80
RR-9502-35UR-R	RR-9502-20	RR-9502-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	111486	CAD	2.50	.92	1.252/1.256	Urethane	35
RR-9502-60UR-R	RR-9502-20	RR-9502-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	111534	CAD	2.50	.92	1.252/1.256	Urethane	60
RR-9502-80UR-R	RR-9502-20	RR-9502-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	111570	CAD	2.50	.92	1.252/1.256	Urethane	80
RR-9502-95UR-R	RR-9502-20	RR-9502-95UR-R	Solid Roller - Standard Roll Only - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	111582	CAD	2.50	.92	1.252/1.256	Urethane	95
RR-502-20-R	RR-9502-20	RR-502-20-R	Solid Roller - Standard Roll Only - 20 Dur Neoprene - 2.50 in Dia X 1.94 in Wide	1	110962	CAD	2.50	1.94	1.252/1.256	Neoprene	20
RR-502-35-R	RR-9502-20	RR-502-35-R	Solid Roller - Standard Roll Only - 35 Dur Neoprene - 2.50 in Dia X 1.94 in Wide	1	110992	CAD	2.50	1.94	1.252/1.256	Neoprene	35
RR-502-60-R	RR-9502-20	RR-502-60-R	Solid Roller - Standard Roll Only - 60 Dur Neoprene - 2.50 in Dia X 1.94 in Wide	1	111025	CAD	2.50	1.94	1.252/1.256	Neoprene	60
RR-502-80-R	RR-9502-20	RR-502-80-R	Solid Roller - Standard Roll Only - 80 Dur Neoprene - 2.50 in Dia X 1.94 in Wide	1	111042	CAD	2.50	1.94	1.252/1.256	Neoprene	80
RR-502-20W-R	RR-9502-20	RR-502-20W-R	Solid Roller - Standard Roll Only - 20 Dur Nitrile - 2.50 in Dia X 1.94 in Wide	1	110968	CAD	2.50	1.94	1.252/1.256	Nitrile	20
RR-502-35W-R	RR-9502-20	RR-502-35W-R	Solid Roller - Standard Roll Only - 35 Dur Nitrile - 2.50 in Dia X 1.94 in Wide	1	111009	CAD	2.50	1.94	1.252/1.256	Nitrile	35
RR-502-60W-R	RR-9502-20	RR-502-60W-R	Solid Roller - Standard Roll Only - 60 Dur Nitrile - 2.50 in Dia X 1.94 in Wide	1	111040	CAD	2.50	1.94	1.252/1.256	Nitrile	60
RR-502-80W-R	RR-9502-20	RR-502-80W-R	Solid Roller - Standard Roll Only - 80 Dur Nitrile - 2.50 in Dia X 1.94 in Wide	1	111061	CAD	2.50	1.94	1.252/1.256	Nitrile	80
RR-502-35UR-R	RR-9502-20	RR-502-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	111003	CAD	2.50	1.94	1.252/1.256	Urethane	35
RR-502-60UR-R	RR-9502-20	RR-502-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	111029	CAD	2.50	1.94	1.252/1.256	Urethane	60
RR-502-80UR-R	RR-9502-20	RR-502-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	111045	CAD	2.50	1.94	1.252/1.256	Urethane	80
RR-502-95UR-R	RR-9502-20	RR-502-95UR-R	Solid Roller - Standard Roll Only - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	111068	CAD	2.50	1.94	1.252/1.256	Urethane	95
RR-9754-20-R	RR-9754-20	RR-9754-20-R	Solid Roller - Standard Roll Only - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	111590	CAD	4.00	.92	1.252/1.256	Neoprene	20
RR-9754-35-R	RR-9754-20	RR-9754-35-R	Solid Roller - Standard Roll Only - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	111604	CAD	4.00	.92	1.252/1.256	Neoprene	35
RR-9754-60-R	RR-9754-20	RR-9754-60-R	Solid Roller - Standard Roll Only - 60 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	111658	CAD	4.00	.92	1.252/1.256	Neoprene	60
RR-9754-80-R	RR-9754-20	RR-9754-80-R	Solid Roller - Standard Roll Only - 80 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	111673	CAD	4.00	.92	1.252/1.256	Neoprene	80
RR-9754-20W-R	RR-9754-20	RR-9754-20W-R	Solid Roller - Standard Roll Only - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	111594	CAD	4.00	.92	1.252/1.256	Nitrile	20
RR-9754-35W-R	RR-9754-20	RR-9754-35W-R	Solid Roller - Standard Roll Only - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	111641	CAD	4.00	.92	1.252/1.256	Nitrile	35
RR-9754-60W-R	RR-9754-20	RR-9754-60W-R	Solid Roller - Standard Roll Only - 60 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	111671	CAD	4.00	.92	1.252/1.256	Nitrile	60
RR-9754-80W-R	RR-9754-20	RR-9754-80W-R	Solid Roller - Standard Roll Only - 80 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	111698	CAD	4.00	.92	1.252/1.256	Nitrile	80
RR-9754-35UR-R	RR-9754-20	RR-9754-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	111613	CAD	4.00	.92	1.252/1.256	Urethane	35
RR-9754-60UR-R	RR-9754-20	RR-9754-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	111660	CAD	4.00	.92	1.252/1.256	Urethane	60
RR-9754-80UR-R	RR-9754-20	RR-9754-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	111684	CAD	4.00	.92	1.252/1.256	Urethane	80
RR-9754-95UR-R	RR-9754-20	RR-9754-95UR-R	Solid Roller - Standard Roll Only - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	111700	CAD	4.00	.92	1.252/1.256	Urethane	95
RR-754-20-R	RR-9754-20	RR-754-20-R	Solid Roller - Standard Roll Only - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	111159	CAD	4.00	1.94	1.252/1.256	Neoprene	20
RR-754-35-R	RR-9754-20	RR-754-35-R	Solid Roller - Standard Roll Only - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	111195	CAD	4.00	1.94	1.252/1.256	Neoprene	35
RR-754-60-R	RR-9754-20	RR-754-60-R	Solid Roller - Standard Roll Only - 60 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	111233	CAD	4.00	1.94	1.252/1.256	Neoprene	60
RR-754-80-R	RR-9754-20	RR-754-80-R	Solid Roller - Standard Roll Only - 80 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	111256	CAD	4.00	1.94	1.252/1.256	Neoprene	80
RR-754-20W-R	RR-9754-20	RR-754-20W-R	Solid Roller - Standard Roll Only - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	111177	CAD	4.00	1.94	1.252/1.256	Nitrile	20
RR-754-35W-R	RR-9754-20	RR-754-35W-R	Solid Roller - Standard Roll Only - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	111224	CAD	4.00	1.94	1.252/1.256	Nitrile	35
RR-754-60W-R	RR-9754-20	RR-754-60W-R	Solid Roller - Standard Roll Only - 60 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	111253	CAD	4.00	1.94	1.252/1.256	Nitrile	60
RR-754-80W-R	RR-9754-20	RR-754-80W-R	Solid Roller - Standard Roll Only - 80 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	111300	CAD	4.00	1.94	1.252/1.256	Nitrile	80
RR-754-35UR-R	RR-9754-20	RR-754-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	111218	CAD	4.00	1.94	1.252/1.256	Urethane	35
RR-754-60UR-R	RR-9754-20	RR-754-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	111238	CAD	4.00	1.94	1.252/1.256	Urethane	60
RR-754-80UR-R	RR-9754-20	RR-754-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	111263	CAD	4.00	1.94	1.252/1.256	Urethane	80
RR-754-95UR-R	RR-9754-20	RR-754-95UR-R	Solid Roller - Standard Roll Only - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	111310	CAD	4.00	1.94	1.252/1.256	Urethane	95
RR-5020-35UR-R	RR-5020-35UR-B	RR-5020-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 5.00 in Dia X 1.94 in Wide	1	111079	CAD	5.00	1.94	1.252/1.256	Urethane	35
RR-5020-60UR-R	RR-5020-35UR-B	RR-5020-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 5.00 in Dia X 1.94 in Wide	1	111089	CAD	5.00	1.94	1.252/1.256	Urethane	60
RR-5020-80UR-R	RR-5020-35UR-B	RR-5020-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 5.00 in Dia X 1.94 in Wide	1	111090	CAD	5.00	1.94	1.252/1.256	Urethane	80
RR-6020-35UR-R	RR-5020-35UR-B	RR-6020-35UR-R	Solid Roller - Standard Roll Only - 35 Dur Urethane - 6.00 in Dia X 1.94 in Wide	1	111116	CAD	6.00	1.94	1.252/1.256	Urethane	35
RR-6020-60UR-R	RR-5020-35UR-B	RR-6020-60UR-R	Solid Roller - Standard Roll Only - 60 Dur Urethane - 6.00 in Dia X 1.94 in Wide	1	111125	CAD	6.00	1.94	1.252/1.256	Urethane	60
RR-6020-80UR-R	RR-5020-35UR-B	RR-6020-80UR-R	Solid Roller - Standard Roll Only - 80 Dur Urethane - 6.00 in Dia X 1.94 in Wide	1	111140	CAD	6.00	1.94	1.252/1.256	Urethane	80
