Rest Pads - Round - Stainless Steel - C'Bore - Metric (MCSRP-C)

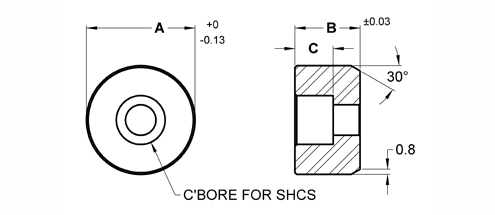

Drawing
Description
Media

Description

Made from 17-4 stainless steel which provides high strength as well as protection against chemical and environmental corrosion. Heat treated to Rc 43/46. Counter bored hole for front mounting with a socket head cap screw.

Gripper Technical Information

MCSRP-100-C

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3
MCSRP-100-C	MCSRP-100-C	MCSRP-100-C	SS Rest Pad - C'Bore - 10 mm Dia X 10 mm	1	100989	CAD	10	10	5.0	M3 SHCS
MCSRP-102-C	MCSRP-100-C	MCSRP-102-C	SS Rest Pad - C'Bore - 10 mm Dia X 12 mm	1	101013	CAD	10	12	5.0	M3 SHCS
MCSRP-120-C	MCSRP-100-C	MCSRP-120-C	SS Rest Pad - C'Bore - 12 mm Dia X 10 mm	1	101036	CAD	12	10	5.6	M4 SHCS
MCSRP-122-C	MCSRP-100-C	MCSRP-122-C	SS Rest Pad - C'Bore - 12 mm Dia X 12 mm	1	101046	CAD	12	12	5.6	M4 SHCS
MCSRP-160-C	MCSRP-100-C	MCSRP-160-C	SS Rest Pad - C'Bore - 16 mm Dia X 10 mm	1	101050	CAD	16	10	6.6	M5 SHCS
MCSRP-162-C	MCSRP-100-C	MCSRP-162-C	SS Rest Pad - C'Bore - 16 mm Dia X 12 mm	1	101058	CAD	16	12	6.6	M5 SHCS
MCSRP-200-C	MCSRP-100-C	MCSRP-200-C	SS Rest Pad - C'Bore - 20 mm Dia X 10 mm	1	101084	CAD	20	10	7.6	M6 SHCS
MCSRP-202-C	MCSRP-100-C	MCSRP-202-C	SS Rest Pad - C'Bore - 20 mm Dia X 12 mm	1	101093	CAD	20	12	7.6	M6 SHCS
MCSRP-250-C	MCSRP-100-C	MCSRP-250-C	SS Rest Pad - C'Bore - 25 mm Dia X 10 mm	1	101113	CAD	25	10	7.6	M6 SHCS
MCSRP-252-C	MCSRP-100-C	MCSRP-252-C	SS Rest Pad - C'Bore - 25 mm Dia X 12 mm	1	101132	CAD	25	12	7.6	M6 SHCS
