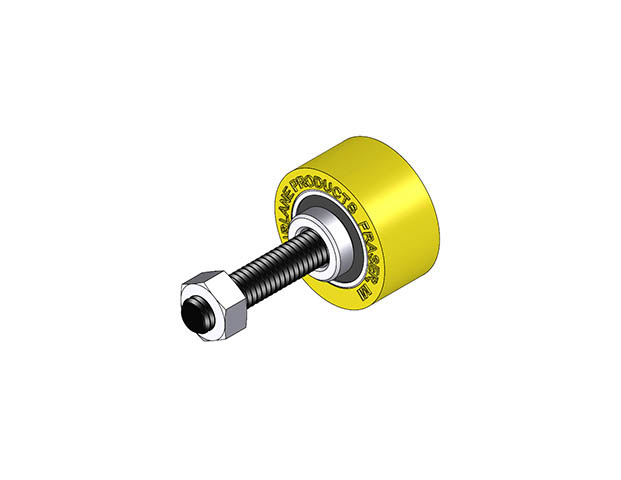

Stud Mount Urethane Covered Bearing Rollers - Double Bearings - Metric
MCBD-052010-35UR-C
M5x0.8 2RS x 20mmDIA x 10mm WD
| Part # | A mm | B mm | C Thread | D mm | E mm | F (Ref) mm | G mm | Bearing Number mm | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MCBD-052010-35UR-C | 20 | 10 | M5X0.8 | 25 | 3 | 3 | 2.75 | 605-2RS | 35 | |
| MCBD-052010-60UR-C | 20 | 10 | M5X0.8 | 25 | 3 | 3 | 2.75 | 605-2RS | 60 | |
| MCBD-052010-95UR-C | 20 | 10 | M5X0.8 | 25 | 3 | 3 | 2.75 | 605-2RS | 95 | |
| MCBD-062512-35UR-C | 25 | 12 | M6X1.0 | 28 | 3 | 3 | 3.3 | 606-2RS | 35 | |
| MCBD-062512-60UR-C | 25 | 12 | M6X1.0 | 28 | 3 | 3 | 3.3 | 606-2RS | 60 | |
| MCBD-062512-95UR-C | 25 | 12 | M6X1.0 | 28 | 3 | 3 | 3.3 | 606-2RS | 95 | |
| MCBD-083014-35UR-C | 30 | 14 | M8X1.25 | 26 | 3 | 4 | 4.4 | 608-2RS | 35 | |
| MCBD-083014-60UR-C | 30 | 14 | M8X1.25 | 26 | 3 | 4 | 4.4 | 608-2RS | 60 | |
| MCBD-083014-95UR-C | 30 | 14 | M8X1.25 | 26 | 3 | 4 | 4.4 | 608-2RS | 95 | |
| MCBD-103516-35UR-C | 35 | 16 | M10X1.5 | 29 | 3 | 4.5 | 5.5 | 6000-2RS | 35 | |
| MCBD-103516-60UR-C | 35 | 16 | M10X1.5 | 29 | 3 | 4.5 | 5.5 | 6000-2RS | 60 | |
| MCBD-103516-95UR-C | 35 | 16 | M10X1.5 | 29 | 3 | 4.5 | 5.5 | 6000-2RS | 95 | |
| MCBD-104016-35UR-C | 40 | 16 | M10X1.5 | 29 | 3 | 7 | 5.5 | 6000-2RS | 35 | |
| MCBD-104016-60UR-C | 40 | 16 | M10X1.5 | 29 | 3 | 7 | 5.5 | 6000-2RS | 60 | |
| MCBD-104016-95UR-C | 40 | 16 | M10X1.5 | 29 | 3 | 7 | 5.5 | 6000-2RS | 95 | |
| MCBD-124016-35UR-C | 40 | 16 | M12X1.75 | 29 | 3 | 6 | 6.6 | 6001-2RS | 35 | |
| MCBD-124016-60UR-C | 40 | 16 | M12X1.75 | 29 | 3 | 6 | 6.6 | 6001-2RS | 60 | |
| MCBD-124016-95UR-C | 40 | 16 | M12X1.75 | 29 | 3 | 6 | 6.6 | 6001-2RS | 95 | |
| MCBD-125016-35UR-C | 50 | 16 | M12X1.75 | 29 | 3 | 11 | 6.6 | 6001-2RS | 35 | |
| MCBD-125016-60UR-C | 50 | 16 | M12X1.75 | 29 | 3 | 11 | 6.6 | 6001-2RS | 60 | |
| MCBD-125016-95UR-C | 50 | 16 | M12X1.75 | 29 | 3 | 11 | 6.6 | 6001-2RS | 95 |
