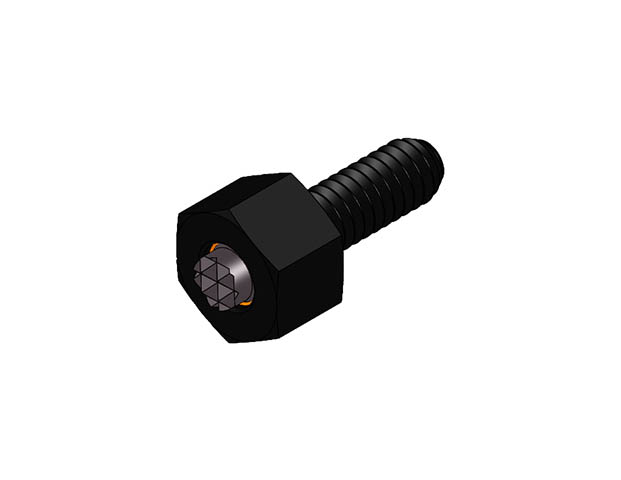

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (BUH-S)
BUH-0124-S
Hex Design Swivot - 10-24 X 1/2 in - Super Fine

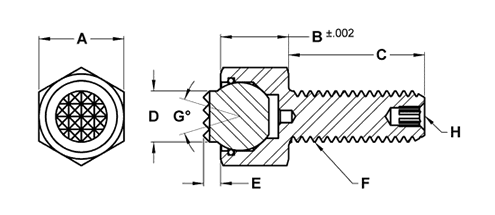

| Part # | A Hex Size in | B Head Height in | C Thread Length in | D Contact Dia in | E Standoff in | F Thread | G Swivel Degrees | H Int Hex in | Ball Dia in | Ball Only Part No. | Tooth Pattern | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUH-0124-S | 3/8 | 1/4 | 1/2 | 5/32 | 1/16 | #10-24 | 28 | — | 3/16 | BUB-187-S | SF | 1,176 | |
| BUH-0124X1-S | 3/8 | 1/4 | 1 | 5/32 | 1/16 | #10-24 | 28 | — | 3/16 | BUB-187-S | SF | 1,176 | |
| BUH-0132-S | 3/8 | 1/4 | 1/2 | 5/32 | 1/16 | #10-32 | 28 | — | 3/16 | BUB-187-S | SF | 1,176 | |
| BUH-0132X1-S | 3/8 | 1/4 | 1 | 5/32 | 1/16 | #10-32 | 28 | — | 3/16 | BUB-187-S | SF | 1,176 | |
| BUH-0230-S | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-S | EF | 3,446 | |
| BUH-0230-SF | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-SF | SF | 3,446 | |
| BUH-0230-SF-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-SF-T | SF | 3,446 | |
| BUH-0230-S-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-S-T | EF | 3,446 | |
| BUH-0231-S | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-S | EF | 3,446 | |
| BUH-0231-SF | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-SF | SF | 3,446 | |
| BUH-0231-SF-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-SF-T | SF | 3,446 | |
| BUH-0231-S-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-S-T | EF | 3,446 | |
| BUH-0231X1.5-S | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-S | EF | 3,446 | |
| BUH-0231X1.5-SF | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-SF | SF | 3,446 | |
| BUH-0231X1.5-SF-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-SF-T | SF | 3,446 | |
| BUH-0231X1.5-S-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-S-T | EF | 3,446 | |
| BUH-0240-EF | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-EF | EF | 7,178 | |
| BUH-0240-EF-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-EF-T | EF | 7,178 | |
| BUH-0240-S | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-S | Fine | 7,178 | |
| BUH-0240-SF | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-SF | SF | 7,178 | |
| BUH-0240-SF-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-SF-T | SF | 7,178 | |
| BUH-0240-S-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-S-T | Fine | 7,178 | |
| BUH-0250-S | 7/16 | 5/16 | 1/2 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-S | SF | 2,441 | |
| BUH-0250-S-T | 7/16 | 5/16 | 1/2 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-S-T | SF | 2,441 | |
| BUH-0251-S | 7/16 | 5/16 | 1 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-S | SF | 2,441 | |
| BUH-0251-S-T | 7/16 | 5/16 | 1 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-S-T | SF | 2,441 | |
| BUH-0251X1.5-S | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-S | SF | 2,441 | |
| BUH-0251X1.5-S-T | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-S-T | SF | 2,441 | |
| BUH-0280-S | 7/16 | 5/16 | 1/2 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-S | SF | 2,441 | |
| BUH-0280-S-T | 7/16 | 5/16 | 1/2 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-S-T | SF | 2,441 | |
| BUH-0281-S | 7/16 | 5/16 | 1 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-S | SF | 2,441 | |
| BUH-0281-S-T | 7/16 | 5/16 | 1 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-S-T | SF | 2,441 | |
| BUH-0281X1.5-S | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-S | SF | 2,441 | |
| BUH-0281X1.5-S-T | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-S-T | SF | 2,441 | |
| BUH-0310-S | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-S | EF | 2,792 | |
| BUH-0310-SF | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-SF | SF | 2,792 | |
| BUH-0310-SF-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-SF-T | SF | 2,792 | |
| BUH-0310-S-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-S-T | EF | 2,792 | |
| BUH-0312-S | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-S | EF | 2,792 | |
| BUH-0312-SF | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-SF | SF | 2,792 | |
| BUH-0312-SF-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-SF-T | SF | 2,792 | |
| BUH-0312-S-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-S-T | EF | 2,792 | |
| BUH-0312X1.5-S | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-S | EF | 2,792 | |
| BUH-0312X1.5-SF | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-SF | SF | 2,792 | |
| BUH-0312X1.5-SF-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-SF-T | SF | 2,792 | |
| BUH-0312X1.5-S-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-S-T | EF | 2,792 | |
| BUH-0320-S | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-S | EF | 2,792 | |
| BUH-0320-SF | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-SF | SF | 2,792 | |
| BUH-0320-SF-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-SF-T | SF | 2,792 | |
| BUH-0320-S-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-S-T | EF | 2,792 | |
| BUH-0321-S | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-S | EF | 2,792 | |
| BUH-0321-SF | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-SF | SF | 2,792 | |
| BUH-0321-SF-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-SF-T | SF | 2,792 | |
| BUH-0321-S-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-S-T | EF | 2,792 | |
| BUH-0321X1.5-S | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-S | EF | 2,792 | |
| BUH-0321X1.5-SF | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-SF | SF | 2,792 | |
| BUH-0321X1.5-SF-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-SF-T | SF | 2,792 | |
| BUH-0321X1.5-S-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-S-T | EF | 2,792 | |
| BUH-0370-S | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-S | EF | 3,446 | |
| BUH-0370-SF | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-SF | SF | 3,446 | |
| BUH-0370-SF-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-SF-T | SF | 3,446 | |
| BUH-0370-S-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-S-T | EF | 3,446 | |
| BUH-0375-S | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-S | EF | 3,446 | |
| BUH-0375-SF | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-SF | SF | 3,446 | |
| BUH-0375-SF-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-SF-T | SF | 3,446 | |
| BUH-0375-S-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-S-T | EF | 3,446 | |
| BUH-0375X1.5-S | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-S | EF | 3,446 | |
| BUH-0375X1.5-SF | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-SF | SF | 3,446 | |
| BUH-0375X1.5-SF-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-SF-T | SF | 3,446 | |
| BUH-0375X1.5-S-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-S-T | EF | 3,446 | |
| BUH-0500-EF | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-EF | EF | 7,178 | |
| BUH-0500-EF-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-EF-T | EF | 7,178 | |
| BUH-0500-S | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-S | Fine | 7,178 | |
| BUH-0500-SF | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-SF | SF | 7,178 | |
| BUH-0500-SF-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-SF-T | SF | 7,178 | |
| BUH-0500-S-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-S-T | Fine | 7,178 | |
| BUH-0510-EF | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-EF | EF | 5,937 | |
| BUH-0510-EF-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-EF-T | EF | 5,937 | |
| BUH-0510-S | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-S | Fine | 5,937 | |
| BUH-0510-SF | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-SF | SF | 5,937 | |
| BUH-0510-SF-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-SF-T | SF | 5,937 | |
| BUH-0510-S-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-S-T | Fine | 5,937 | |
| BUH-0515-EF | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-EF | EF | 5,937 | |
| BUH-0515-EF-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-EF-T | EF | 5,937 | |
| BUH-0515-S | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-S | Fine | 5,937 | |
| BUH-0515-SF | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-SF | SF | 5,937 | |
| BUH-0515-SF-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-SF-T | SF | 5,937 | |
| BUH-0515-S-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-S-T | Fine | 5,937 | |
| BUH-0620-EF | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-EF | EF | 11,874 | |
| BUH-0620-EF-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-EF-T | EF | 11,874 | |
| BUH-0620-S | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-S | Fine | 11,874 | |
| BUH-0620-S-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-S-T | Fine | 11,874 | |
| BUH-0620X2-EF | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-EF | EF | 11,874 | |
| BUH-0620X2-EF-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-EF-T | EF | 11,874 | |
| BUH-0620X2-S | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-S | Fine | 11,874 | |
| BUH-0620X2-S-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-S-T | Fine | 11,874 | |
| BUH-0625-EF | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-EF | EF | 9,932 | |
| BUH-0625-EF-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-EF-T | EF | 9,932 | |
| BUH-0625-S | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-S | Fine | 9,932 | |
| BUH-0625-S-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-S-T | Fine | 9,932 | |
| BUH-0625X2-EF | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-EF | EF | 9,932 | |
| BUH-0625X2-EF-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-11 | 34 | 3/4 | 3/4 | BUB-700-EF-T | EF | 9,932 | |
| BUH-0625X2-S | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-S | Fine | 9,932 | |
| BUH-0625X2-S-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-S-T | Fine | 9,932 |
