Grippers - Round Headed Adjustable - Carbide Tipped - Serrated (AG)
AG-0370

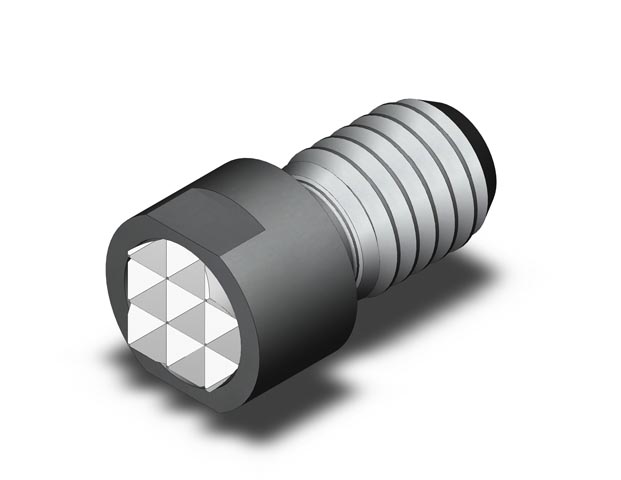

AG Adjustable Gripper - 3/8-16 X 9/16 in - Fine

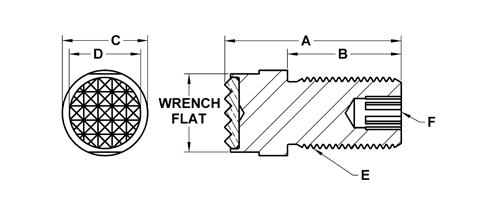

| Part # | A Length in | B Shank in | C OD in | D Contact Diameter in | E Thread | F Int Hex in | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|---|
| AG-0230 | 15/16 | 9/16 | 1/2 | 3/8 | 3/8-24 | 1/8 | Fine | |
| AG-0230-EF | 15/16 | 9/16 | 1/2 | 3/8 | 3/8-24 | 1/8 | EF | |
| AG-0231 | 1-3/8 | 1 | 1/2 | 3/8 | 3/8-24 | 1/8 | Fine | |
| AG-0231-EF | 1-3/8 | 1 | 1/2 | 3/8 | 3/8-24 | 1/8 | EF | |
| AG-0231X1.5 | 1-7/8 | 1-1/2 | 1/2 | 3/8 | 3/8-24 | 1/8 | Fine | |
| AG-0231X1.5-EF | 1-7/8 | 1-1/2 | 1/2 | 3/8 | 3/8-24 | 1/8 | EF | |
| AG-0240 | 1-3/8 | 7/8 | 5/8 | 1/2 | 1/2-20 | 3/16 | Fine | |
| AG-0240-EF | 1-3/8 | 7/8 | 5/8 | 1/2 | 1/2-20 | 3/16 | EF | |
| AG-0370 | 15/16 | 9/16 | 1/2 | 3/8 | 3/8-16 | 1/8 | Fine | |
| AG-0370-EF | 15/16 | 9/16 | 1/2 | 3/8 | 3/8-16 | 1/8 | EF | |
| AG-0375 | 1-3/8 | 1 | 1/2 | 3/8 | 3/8-16 | 1/8 | Fine | |
| AG-0375-EF | 1-3/8 | 1 | 1/2 | 3/8 | 3/8-16 | 1/8 | EF | |
| AG-0375X1.5 | 1-7/8 | 1-1/2 | 1/2 | 3/8 | 3/8-16 | 1/8 | Fine | |
| AG-0375X1.5-EF | 1-7/8 | 1-1/2 | 1/2 | 3/8 | 3/8-16 | 1/8 | EF | |
| AG-0500 | 2-1/16 | 1-1/2 | 5/8 | 1/2 | 1/2-20 | 3/16 | Fine | |
| AG-0500-EF | 2-1/16 | 1-1/2 | 5/8 | 1/2 | 1/2-20 | 3/16 | EF | |
| AG-0510 | 1-3/8 | 7/8 | 5/8 | 1/2 | 1/2-13 | 3/16 | Fine | |
| AG-0510-EF | 1-3/8 | 7/8 | 5/8 | 1/2 | 1/2-13 | 3/16 | EF | |
| AG-0515 | 2-1/16 | 1-1/2 | 5/8 | 1/2 | 1/2-13 | 3/16 | Fine | |
| AG-0515-EF | 2-1/16 | 1-1/2 | 5/8 | 1/2 | 1/2-13 | 3/16 | EF | |
| AG-0620X1 | 1-9/16 | 1 | 3/4 | 5/8 | 5/8-18 | 1/4 | Fine | |
| AG-0620X1-EF | 1-9/16 | 1 | 3/4 | 5/8 | 5/8-18 | 1/4 | EF | |
| AG-0620X2 | 2-9/16 | 2 | 3/4 | 5/8 | 5/8-18 | 1/4 | Fine | |
| AG-0620X2-EF | 2-9/16 | 2 | 3/4 | 5/8 | 5/8-18 | 1/4 | EF | |
| AG-0625X1 | 1-9/16 | 1 | 3/4 | 5/8 | 5/8-11 | 1/4 | Fine | |
| AG-0625X1-EF | 1-9/16 | 1 | 3/4 | 5/8 | 5/8-11 | 1/4 | EF | |
| AG-0625X2 | 2-9/16 | 2 | 3/4 | 5/8 | 5/8-11 | 1/4 | Fine | |
| AG-0625X2-EF | 2-9/16 | 2 | 3/4 | 5/8 | 5/8-11 | 1/4 | EF | |
| AG-0750X1 | 1-9/16 | 1 | 7/8 | 3/4 | 3/4-16 | 5/16 | Fine | |
| AG-0750X1-EF | 1-9/16 | 1 | 7/8 | 3/4 | 3/4-16 | 5/16 | EF | |
| AG-0750X2.5 | 3-1/16 | 2-1/2 | 7/8 | 3/4 | 3/4-16 | 5/16 | Fine | |
| AG-0750X2.5-EF | 3-1/16 | 2-1/2 | 7/8 | 3/4 | 3/4-16 | 5/16 | EF | |
| AG-0755X1 | 1-9/16 | 1 | 7/8 | 3/4 | 3/4-10 | 5/16 | Fine | |
| AG-0755X1-EF | 1-9/16 | 1 | 7/8 | 3/4 | 3/4-10 | 5/16 | EF | |
| AG-0755X2.5 | 3-1/16 | 2-1/2 | 7/8 | 3/4 | 3/4-10 | 5/16 | Fine | |
| AG-0755X2.5-EF | 3-1/16 | 2-1/2 | 7/8 | 3/4 | 3/4-10 | 5/16 | EF |
AG-ADJUSTABLE with solid carbide pad brazed into pocket
