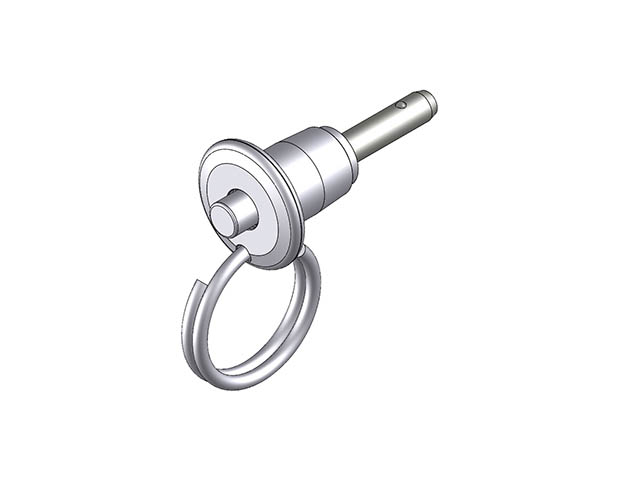

Quick Release Ball Lock Pin - Button Handle - 17-4 SS Shank - 300 Series SS Handle - Inch (BCCH)



BCCH-18-050
SS Button Handle Pin - 17-4 SS Shank - 3/16 in X .50 in

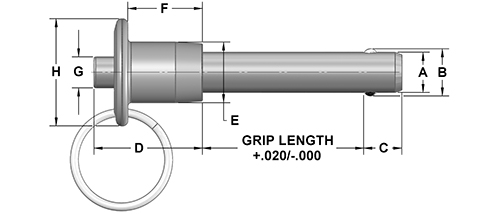

Part # Nominal Diameter
in		A
Max
in		A
Min
in		Grip Length
in		B
in		C
in		D
in		E
in		F
in		G
in		H
in
BCCH-18-0503/16.1885.1870.50.220.260.92.47.63.23.81
BCCH-18-0753/16.1885.1870.75.220.260.92.47.63.23.81
BCCH-18-1003/16.1885.18701.00.220.260.92.47.63.23.81
BCCH-18-1253/16.1885.18701.25.220.260.92.47.63.23.81
BCCH-18-1503/16.1885.18701.50.220.260.92.47.63.23.81
BCCH-18-1753/16.1885.18701.75.220.260.92.47.63.23.81
BCCH-18-2003/16.1885.18702.00.220.260.92.47.63.23.81
BCCH-18-2503/16.1885.18702.50.220.260.92.47.63.23.81
BCCH-18-3003/16.1885.18703.00.220.260.92.47.63.23.81
BCCH-18-3503/16.1885.18703.50.220.260.92.47.63.23.81
BCCH-18-4003/16.1885.18704.00.220.260.92.47.63.23.81
BCCH-25-0501/4.2485.2470.50.289.290.92.47.63.23.81
BCCH-25-0751/4.2485.2470.75.289.290.92.47.63.23.81
BCCH-25-1001/4.2485.24701.00.289.290.92.47.63.23.81
BCCH-25-1251/4.2485.24701.25.289.290.92.47.63.23.81
BCCH-25-1501/4.2485.24701.50.289.290.92.47.63.23.81
BCCH-25-1751/4.2485.24701.75.289.290.92.47.63.23.81
BCCH-25-2001/4.2485.24702.00.289.290.92.47.63.23.81
BCCH-25-2501/4.2485.24702.50.289.290.92.47.63.23.81
BCCH-25-3001/4.2485.24703.00.289.290.92.47.63.23.81
BCCH-25-3501/4.2485.24703.50.289.290.92.47.63.23.81
BCCH-25-4001/4.2485.24704.00.289.290.92.47.63.23.81
BCCH-31-0505/16.3110.3095.50.375.330.92.47.63.23.81
BCCH-31-0755/16.3110.3095.75.375.330.92.47.63.23.81
BCCH-31-1005/16.3110.30951.00.375.330.92.47.63.23.81
BCCH-31-1255/16.3110.30951.25.375.330.92.47.63.23.81
BCCH-31-1505/16.3110.30951.50.375.330.92.47.63.23.81
BCCH-31-1755/16.3110.30951.75.375.330.92.47.63.23.81
BCCH-31-2005/16.3110.30952.00.375.330.92.47.63.23.81
BCCH-31-2505/16.3110.30952.50.375.330.92.47.63.23.81
BCCH-31-3005/16.3110.30953.00.375.330.92.47.63.23.81
BCCH-31-3505/16.3110.30953.50.375.330.92.47.63.23.81
BCCH-31-4005/16.3110.30954.00.375.330.92.47.63.23.81
BCCH-37-0503/8.3735.3720.50.440.3651.01.56.70.291.00
BCCH-37-0753/8.3735.3720.75.440.3651.01.56.70.291.00
BCCH-37-1003/8.3735.37201.00.440.3651.01.56.70.291.00
BCCH-37-1253/8.3735.37201.25.440.3651.01.56.70.291.00
BCCH-37-1503/8.3735.37201.50.440.3651.01.56.70.291.00
BCCH-37-1753/8.3735.37201.75.440.3651.01.56.70.291.00
BCCH-37-2003/8.3735.37202.00.440.3651.01.56.70.291.00
BCCH-37-2503/8.3735.37202.50.440.3651.01.56.70.291.00
BCCH-37-3003/8.3735.37203.00.440.3651.01.56.70.291.00
BCCH-37-3503/8.3735.37203.50.440.3651.01.56.70.291.00
BCCH-37-4003/8.3735.37204.00.440.3651.01.56.70.291.00
BCCH-50-1001/2.4985.49701.00.594.4601.27.72.85.421.36
BCCH-50-1251/2.4985.49701.25.594.4601.27.72.85.421.36
BCCH-50-1501/2.4985.49701.50.594.4601.27.72.85.421.36
BCCH-50-1751/2.4985.49701.75.594.4601.27.72.85.421.36
BCCH-50-2001/2.4985.49702.00.594.4601.27.72.85.421.36
BCCH-50-2501/2.4985.49702.50.594.4601.27.72.85.421.36
BCCH-50-3001/2.4985.49703.00.594.4601.27.72.85.421.36
BCCH-50-3501/2.4985.49703.50.594.4601.27.72.85.421.36
BCCH-50-4001/2.4985.49704.00.594.4601.27.72.85.421.36
BCCH-50-4501/2.4985.49704.50.594.4601.27.72.85.421.36
BCCH-50-5001/2.4985.49705.00.594.4601.27.72.85.421.36
BCCH-50-5501/2.4985.49705.50.594.4601.27.72.85.421.36
BCCH-50-6001/2.4985.49706.00.594.4601.27.72.85.421.36
