17-4 Stainless Shank and Handle (Inch)

Quick Release Ball Lock Pin - Nautical Handle - 17-4 SS Shank - 300 Series SS Handle - Inch (NCCH)

NCCH-18-050

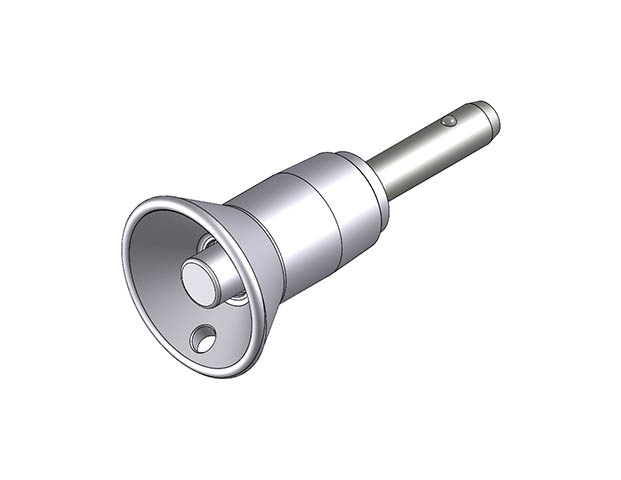

Nautical Handle Pin - 17-4 SS Shank - 3/16 in Dia X .50 in

Part #	Nominal Diameter mm	A Max in	A Min mm	Grip Length mm	B mm	C	D mm	E mm	G mm	F mm	H mm
▶ NCCH-18-050	3/16	0.1885	0.1870	0.50	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-075	3/16	0.1885	0.1870	0.75	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-100	3/16	0.1885	0.1870	1.00	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-125	3/16	0.1885	0.1870	1.25	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-150	3/16	0.1885	0.1870	1.50	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-175	3/16	0.1885	0.1870	1.75	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-200	3/16	0.1885	0.1870	2.00	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-250	3/16	0.1885	0.1870	2.50	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-300	3/16	0.1885	0.1870	3.00	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-350	3/16	0.1885	0.1870	3.50	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-18-400	3/16	0.1885	0.1870	4.00	0.220	0.260	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-050	1/4	0.2485	0.2470	0.50	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-075	1/4	0.2485	0.2470	0.75	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-100	1/4	0.2485	0.2470	1.00	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-125	1/4	0.2485	0.2470	1.25	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-150	1/4	0.2485	0.2470	1.50	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-175	1/4	0.2485	0.2470	1.75	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-200	1/4	0.2485	0.2470	2.00	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-250	1/4	0.2485	0.2470	2.50	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-300	1/4	0.2485	0.2470	3.00	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-350	1/4	0.2485	0.2470	3.50	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-25-400	1/4	0.2485	0.2470	4.00	0.289	0.290	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-050	5/16	0.3110	0.3095	0.50	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-075	5/16	0.3110	0.3095	0.75	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-100	5/16	0.3110	0.3095	1.00	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-125	5/16	0.3110	0.3095	1.25	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-150	5/16	0.3110	0.3095	1.50	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-175	5/16	0.3110	0.3095	1.75	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-200	5/16	0.3110	0.3095	2.00	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-250	5/16	0.3110	0.3095	2.50	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-300	5/16	0.3110	0.3095	3.00	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-350	5/16	0.3110	0.3095	3.50	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-31-400	5/16	0.3110	0.3095	4.00	0.375	0.330	0.97	0.47	0.57	0.23	0.81
▶ NCCH-37-050	3/8	0.3735	0.3720	0.50	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-075	3/8	0.3735	0.3720	0.75	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-100	3/8	0.3735	0.3720	1.00	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-125	3/8	0.3735	0.3720	1.25	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-150	3/8	0.3735	0.3720	1.50	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-175	3/8	0.3735	0.3720	1.75	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-200	3/8	0.3735	0.3720	2.00	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-250	3/8	0.3735	0.3720	2.50	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-300	3/8	0.3735	0.3720	3.00	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-350	3/8	0.3735	0.3720	3.50	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-37-400	3/8	0.3735	0.3720	4.00	0.440	0.365	1.06	0.56	0.68	0.29	1.00
▶ NCCH-50-100	1/2	0.4985	0.4970	1.00	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-125	1/2	0.4985	0.4970	1.25	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-150	1/2	0.4985	0.4970	1.50	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-175	1/2	0.4985	0.4970	1.75	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-200	1/2	0.4985	0.4970	2.00	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-250	1/2	0.4985	0.4970	2.50	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-300	1/2	0.4985	0.4970	3.00	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-350	1/2	0.4985	0.4970	3.50	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-400	1/2	0.4985	0.4970	4.00	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-450	1/2	0.4985	0.4970	4.50	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-500	1/2	0.4985	0.4970	5.00	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-550	1/2	0.4985	0.4970	5.50	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-50-600	1/2	0.4985	0.4970	6.00	0.594	0.460	1.31	0.72	0.89	0.42	1.12
▶ NCCH-62-150	5/8	0.6235	0.6220	1.50	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-175	5/8	0.6235	0.6220	1.75	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-200	5/8	0.6235	0.6220	2.00	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-250	5/8	0.6235	0.6220	2.50	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-300	5/8	0.6235	0.6220	3.00	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-350	5/8	0.6235	0.6220	3.50	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-400	5/8	0.6235	0.6220	4.00	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-450	5/8	0.6235	0.6220	4.50	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-500	5/8	0.6235	0.6220	5.00	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-550	5/8	0.6235	0.6220	5.50	0.750	0.580	1.69	0.94	1.12	0.54	1.44
▶ NCCH-62-600	5/8	0.6235	0.6220	6.00	0.750	0.580	1.69	0.94	1.12	0.54	1.44
