Base Design Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MBBU)
MBBU-1722
Base Design Swivot - 17 mm Dia X 18 mm - Replaceable Ball

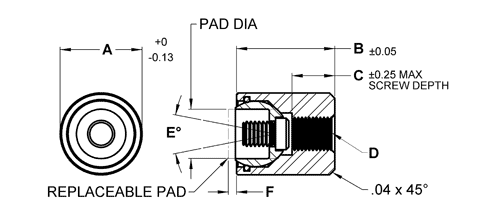

| Part # | A Dia mm | B Length mm | C Thread Depth mm | D Tap | E Swivel Degrees | F Standoff 1* mm | F Standoff 2* mm | Ball Dia mm | Replaceable Pad Dia | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MBBU-1722 | 17 | 18 | 7.5 | M6x1.0 | 20 | 4 | 6 | 13 | 10 | 6,170 | |
