17-4 Stainless Shank - Aluminum Handle (Inch)

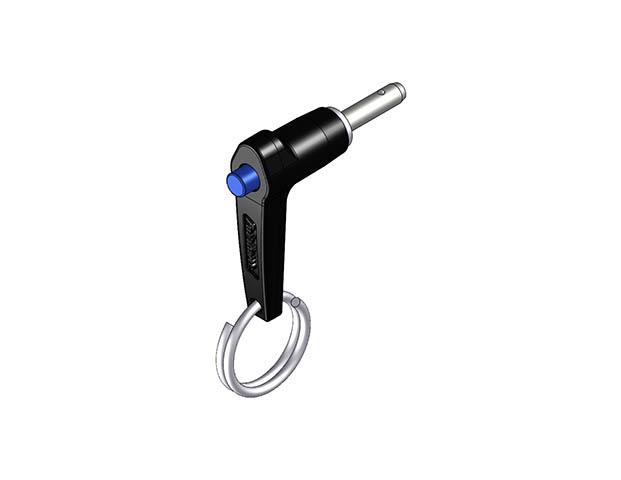

Quick Release Ball Lock Pin - L-Handle - 17-4 SS Shank - Aluminum Handle - Inch (LACH)

LACH-18-050
L-Handle Pin - 17-4 SS Shank - 3/16 in Dia X .50 in

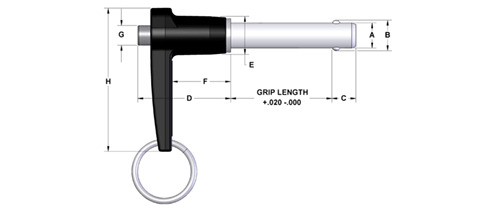

Part #	Nominal Diameter in	A Max in	A Min in	Grip Length in	B in	C in	D in	E in	F in	G in	H in
▶ LACH-18-050	3/16	0.1885	0.1870	0.50	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-075	3/16	0.1885	0.1870	0.75	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-100	3/16	0.1885	0.1870	1.00	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-125	3/16	0.1885	0.1870	1.25	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-150	3/16	0.1885	0.1870	1.50	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-175	3/16	0.1885	0.1870	1.75	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-200	3/16	0.1885	0.1870	2.00	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-250	3/16	0.1885	0.1870	2.50	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-300	3/16	0.1885	0.1870	3.00	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-350	3/16	0.1885	0.1870	3.50	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-18-400	3/16	0.1885	0.1870	4.00	0.220	0.260	1.23	0.47	0.77	0.23	1.73
▶ LACH-25-050	1/4	0.2485	0.2470	0.50	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-075	1/4	0.2485	0.2470	0.75	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-100	1/4	0.2485	0.2470	1.00	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-125	1/4	0.2485	0.2470	1.25	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-150	1/4	0.2485	0.2470	1.50	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-175	1/4	0.2485	0.2470	1.75	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-200	1/4	0.2485	0.2470	2.00	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-250	1/4	0.2485	0.2470	2.50	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-300	1/4	0.2485	0.2470	3.00	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-350	1/4	0.2485	0.2470	3.50	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-25-400	1/4	0.2485	0.2470	4.00	0.289	0.290	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-050	5/16	0.3110	0.3095	0.50	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-075	5/16	0.3110	0.3095	0.75	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-100	5/16	0.3110	0.3095	1.00	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-125	5/16	0.3110	0.3095	1.25	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-150	5/16	0.3110	0.3095	1.50	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-175	5/16	0.3110	0.3095	1.75	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-200	5/16	0.3110	0.3095	2.00	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-250	5/16	0.3110	0.3095	2.50	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-300	5/16	0.3110	0.3095	3.00	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-350	5/16	0.3110	0.3095	3.50	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-31-400	5/16	0.3110	0.3095	4.00	0.375	0.330	1.23	0.47	0.77	0.23	1.84
▶ LACH-37-050	3/8	0.3735	0.3720	0.50	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-075	3/8	0.3735	0.3720	0.75	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-100	3/8	0.3735	0.3720	1.00	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-125	3/8	0.3735	0.3720	1.25	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-150	3/8	0.3735	0.3720	1.50	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-175	3/8	0.3735	0.3720	1.75	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-200	3/8	0.3735	0.3720	2.00	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-250	3/8	0.3735	0.3720	2.50	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-300	3/8	0.3735	0.3720	3.00	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-350	3/8	0.3735	0.3720	3.50	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-37-400	3/8	0.3735	0.3720	4.00	0.440	0.365	1.38	0.56	0.88	0.29	2.00
▶ LACH-50-100	1/2	0.4985	0.4970	1.00	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-125	1/2	0.4985	0.4970	1.25	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-150	1/2	0.4985	0.4970	1.50	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-175	1/2	0.4985	0.4970	1.75	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-200	1/2	0.4985	0.4970	2.00	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-250	1/2	0.4985	0.4970	2.50	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-300	1/2	0.4985	0.4970	3.00	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-350	1/2	0.4985	0.4970	3.50	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-400	1/2	0.4985	0.4970	4.00	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-450	1/2	0.4985	0.4970	4.50	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-500	1/2	0.4985	0.4970	5.00	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-550	1/2	0.4985	0.4970	5.50	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-50-600	1/2	0.4985	0.4970	6.00	0.594	0.460	1.60	0.72	0.94	0.42	2.23
▶ LACH-62-150	5/8	0.6235	0.6220	1.50	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-175	5/8	0.6235	0.6220	1.75	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-200	5/8	0.6235	0.6220	2.00	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-250	5/8	0.6235	0.6220	2.50	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-300	5/8	0.6235	0.6220	3.00	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-350	5/8	0.6235	0.6220	3.50	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-400	5/8	0.6235	0.6220	4.00	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-450	5/8	0.6235	0.6220	4.50	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-500	5/8	0.6235	0.6220	5.00	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-550	5/8	0.6235	0.6220	5.50	0.750	0.580	1.77	0.94	1.11	0.54	2.69
▶ LACH-62-600	5/8	0.6235	0.6220	6.00	0.750	0.580	1.77	0.94	1.11	0.54	2.69
