Grippers - Round - Tool Steel - Diamond Serration - Blind Tapped - Inch (HS)
HS-20

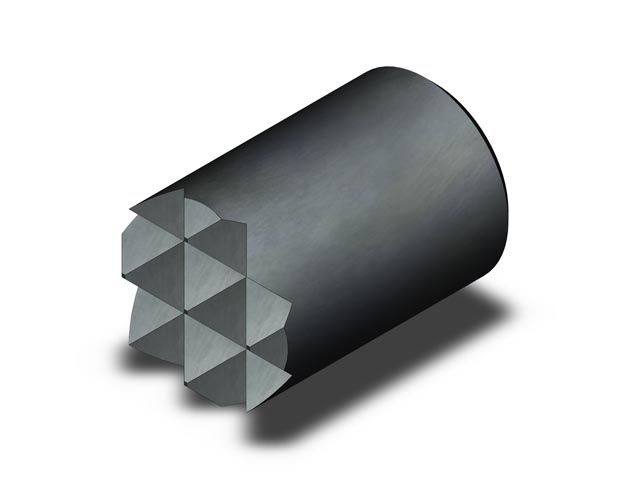

Tool Steel Gripper - Round w/ Blind Hole - 1/4 in Dia X 3/8 in - Extra Fine

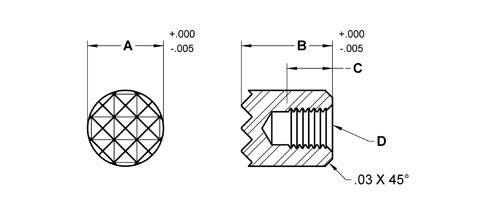

| Part # | A OD in | B Length in | C Thread Length in | D Tap | Tooth Pattern |
|
|---|---|---|---|---|---|---|
| HS-20 | 1/4 | 3/8 | 3/16 | #8-32 | EF | |
| HS-205 | 1/4 | 1/2 | 5/16 | #8-32 | EF | |
| HS-205-SF | 1/4 | 1/2 | 5/16 | #8-32 | SF | |
| HS-20-SF | 1/4 | 3/8 | 3/16 | #8-32 | SF | |
| HS-30 | 5/16 | 3/8 | 3/16 | #8-32 | EF | |
| HS-305 | 5/16 | 1/2 | 5/16 | #8-32 | EF | |
| HS-305-SF | 5/16 | 1/2 | 5/16 | #8-32 | SF | |
| HS-30-SF | 5/16 | 3/8 | 3/16 | #8-32 | SF | |
| HS-405-BL | 3/8 | 1/2 | 5/16 | #10-32 | EF | |
| HS-405-BL-SF | 3/8 | 1/2 | 5/16 | #10-32 | SF | |
| HS-40-BL | 3/8 | 3/8 | 3/16 | #10-32 | EF | |
| HS-40-BL-SF | 3/8 | 3/8 | 3/16 | #10-32 | SF | |
| HS-50-BL | 1/2 | 3/8 | 3/16 | #10-32 | Fine | |
| HS-50-BL-EF | 1/2 | 3/8 | 3/16 | #10-32 | EF | |
| HS-50-BL-SF | 1/2 | 3/8 | 3/16 | #10-32 | SF | |
| HS-53-BL | 1/2 | 1/2 | 5/16 | #10-32 | Fine | |
| HS-53-BL-EF | 1/2 | 1/2 | 5/16 | #10-32 | EF | |
| HS-53-BL-SF | 1/2 | 1/2 | 5/16 | #10-32 | SF |
