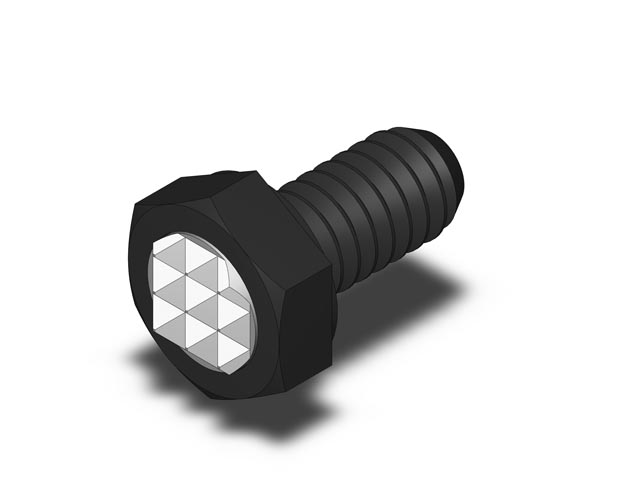

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Inch (CTH)
CTH-0200
CTH Adjustable Gripper - 1/4-20 X 1/2 in - Extra Fine

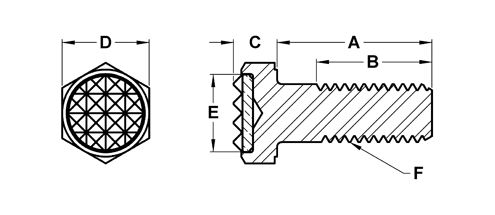

| Part # | A Shank Length in | B Thread Length in | C in | D Hex in | E Pad Dia in | F Thread | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|---|
| CTH-0200 | 1/2 | 1/2 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTH-0230 | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTH-0230-EF | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTH-0231 | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTH-0231-EF | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTH-0231X1.5 | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTH-0231X1.5-EF | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTH-0240 | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-20 | Fine | |
| CTH-0240-EF | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-20 | EF | |
| CTH-0250 | 1 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTH-0250X1.5 | 1-1/2 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTH-0280 | 1/2 | 1/2 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTH-0281 | 1 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTH-0281X1.5 | 1-1/2 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTH-0310 | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTH-0310-EF | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTH-0312 | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTH-0312-EF | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTH-0312X1.5 | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTH-0312X1.5-EF | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTH-0320 | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTH-0320-EF | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTH-0321 | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTH-0321-EF | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTH-0321X1.5 | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTH-0321X1.5-EF | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTH-0370 | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTH-0370-EF | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTH-0375 | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTH-0375-EF | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTH-0375X1.5 | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTH-0375X1.5-EF | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTH-0500 | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-20 | Fine | |
| CTH-0500-EF | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-20 | EF | |
| CTH-0510 | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-13 | Fine | |
| CTH-0510-EF | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-13 | EF | |
| CTH-0515 | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-13 | Fine | |
| CTH-0515-EF | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-13 | EF | |
| CTH-0620 | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-18 | Fine | |
| CTH-0620-EF | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-18 | EF | |
| CTH-0620X2 | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-18 | Fine | |
| CTH-0620X2-EF | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-18 | EF | |
| CTH-0625 | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-11 | Fine | |
| CTH-0625-EF | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-11 | EF | |
| CTH-0625X2 | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-11 | Fine | |
| CTH-0625X2-EF | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-11 | EF | |
| CTH-0750-EF | 1 | 1 | 1/2 | 1-1/8 | 1 | 3/4-16 | EF | |
| CTH-0750X2.5-EF | 2-1/2 | 1-3/4 | 1/2 | 1-1/8 | 1 | 3/4-16 | EF | |
| CTH-0755-EF | 1 | 1 | 1/2 | 1-1/8 | 1 | 3/4-10 | EF | |
| CTH-0755X2.5-EF | 2-1/2 | 1-3/4 | 1/2 | 1-1/8 | 1 | 3/4-10 | EF | |
| CTHF-0231X1.5 | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTHF-0231X1.5-EF | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTHF-0250 | 1 | 1 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTHF-0250X1.5 | 1-1/2 | 1-1/2 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTHF-0281 | 1 | 1 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTHF-0281X1.5 | 1-1/2 | 1-1/2 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTHF-0312X1.5 | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTHF-0312X1.5-EF | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTHF-0321X1.5 | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTHF-0321X1.5-EF | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTHF-0375X1.5 | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTHF-0375X1.5-EF | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTHF-0620X2 | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-18 | Fine | |
| CTHF-0620X2-EF | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-18 | EF | |
| CTHF-0625X2 | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-11 | Fine | |
| CTHF-0625X2-EF | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-11 | EF | |
| CTHF-0750X2.5-EF | 2-1/2 | 2-1/2 | 1/2 | 1-1/8 | 1 | 3/4-16 | EF | |
| CTHF-0755X2.5-EF | 2-1/2 | 2-1/2 | 1/2 | 1-1/8 | 1 | 3/4-10 | EF |
CTH-ADJUSTABLE with solid carbide pad brazed into pocket
