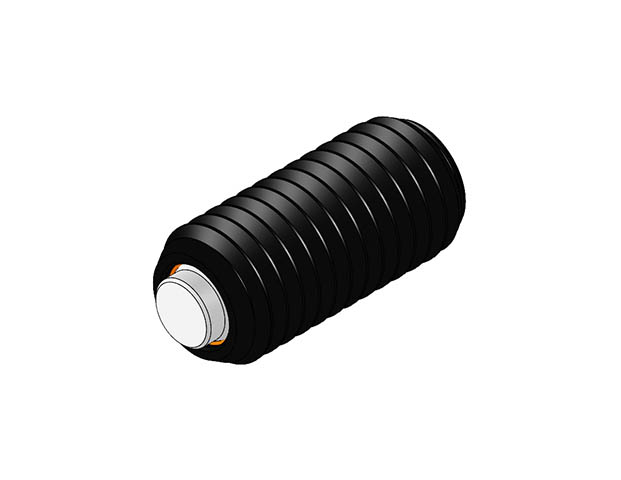

Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MTBU-D)
MTBU-12025-D
Threaded Design Swivot - M12 X 25 mm - Delrin

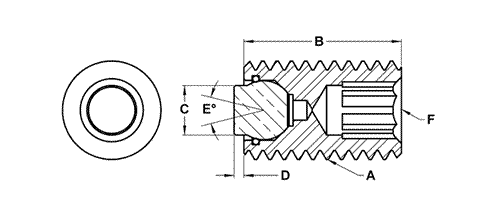

| Part # | A Thread | B Thread Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Internal Hex mm | Ball Dia mm | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|
| MTBU-12025-D | M12x1.75 | 25 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-D | |
| MTBU-12025-D-T | M12x1.75 | 25 | 6 | 3 | 28 | 6 | 7 | MBUB-070-D-T | |
| MTBU-12035-D | M12x1.75 | 35 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-D | |
| MTBU-12035-D-T | M12x1.75 | 35 | 6 | 3 | 28 | 6 | 7 | MBUB-070-D-T | |
| MTBU-12050-D | M12x1.75 | 50 | 6 | 1.5 | 28 | 6 | 7 | MBUB-070-D | |
| MTBU-12050-D-T | M12x1.75 | 50 | 6 | 3 | 28 | 6 | 7 | MBUB-070-D-T | |
| MTBU-16025-D | M16x2.0 | 25 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-D | |
| MTBU-16025-D-T | M16x2.0 | 25 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-D-T | |
| MTBU-16035-D | M16x2.0 | 35 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-D | |
| MTBU-16035-D-T | M16x2.0 | 35 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-D-T | |
| MTBU-16050-D | M16x2.0 | 50 | 8.5 | 1.5 | 24 | 8 | 10 | MBUB-100-D | |
| MTBU-16050-D-T | M16x2.0 | 50 | 8.5 | 3 | 24 | 8 | 10 | MBUB-100-D-T | |
| MTBU-20030-D | M20x2.5 | 30 | 10 | 4 | 42 | 10 | 13 | MBUB-130-D | |
| MTBU-20030-D-T | M20x2.5 | 30 | 10 | 6 | 42 | 10 | 13 | MBUB-130-D-T | |
| MTBU-20050-D | M20x2.5 | 50 | 10 | 4 | 42 | 10 | 13 | MBUB-130-D | |
| MTBU-20050-D-T | M20x2.5 | 50 | 10 | 6 | 42 | 10 | 13 | MBUB-130-D-T | |
| MTBU-20070-D | M20x2.5 | 70 | 10 | 4 | 42 | 10 | 13 | MBUB-130-D | |
| MTBU-20070-D-T | M20x2.5 | 70 | 10 | 6 | 42 | 10 | 13 | MBUB-130-D-T | |
| MTBU-24040-D | M24x3.0 | 40 | 12 | 4 | 45 | 10 | 15 | MBUB-150-D | |
| MTBU-24040-D-T | M24x3.0 | 40 | 12 | 6 | 45 | 10 | 15 | MBUB-150-D-T | |
| MTBU-24080-D | M24x3.0 | 80 | 12 | 4 | 45 | 10 | 15 | MBUB-150-D | |
| MTBU-24080-D-T | M24x3.0 | 80 | 12 | 6 | 45 | 10 | 15 | MBUB-150-D-T |
