Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Inch (BUH-D)
BUH-0124-D

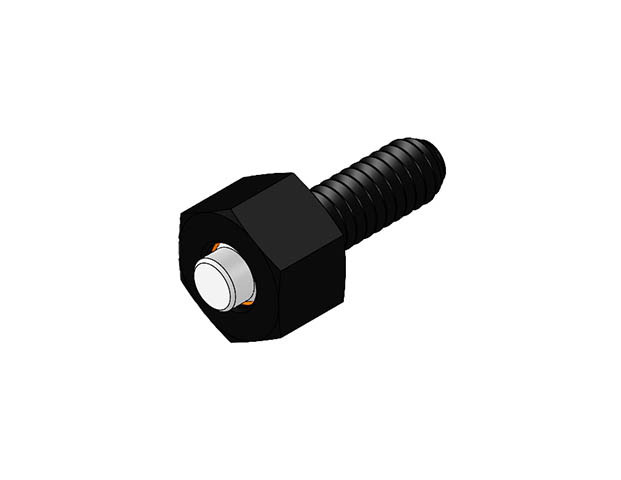

Hex Design Swivot - 10-24 X 1/2 in - Delrin

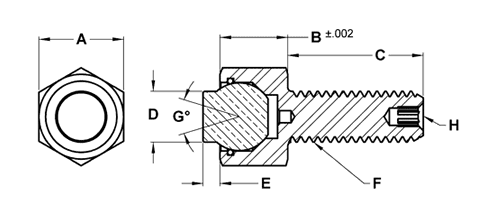

| Part # | A Hex Size in | B Head Height in | C Thread Length in | D Contact Dia in | E Standoff in | F Thread | G Swivel Degrees | H Int Hex in | Ball Dia in | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| BUH-0124-D | 3/8 | 1/4 | 1/2 | 5/32 | 1/16 | #10-24 | 28 | — | 3/16 | BUB-187-D | |
| BUH-0124X1-D | 3/8 | 1/4 | 1 | 5/32 | 1/16 | #10-24 | 28 | — | 3/16 | BUB-187-D | |
| BUH-0132-D | 3/8 | 1/4 | 1/2 | 5/32 | 1/16 | #10-32 | 28 | — | 3/16 | BUB-187-D | |
| BUH-0132X1-D | 3/8 | 1/4 | 1 | 5/32 | 1/16 | #10-32 | 28 | — | 3/16 | BUB-187-D | |
| BUH-0230-D | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-D | |
| BUH-0230-D-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-D-T | |
| BUH-0231-D | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-D | |
| BUH-0231-D-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-D-T | |
| BUH-0231X1.5-D | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-D | |
| BUH-0231X1.5-D-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-24 | 40 | 1/8 | 1/2 | BUB-500-D-T | |
| BUH-0240-D | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-D | |
| BUH-0240-D-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-D-T | |
| BUH-0250-D | 7/16 | 5/16 | 1/2 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-D | |
| BUH-0250-D-T | 7/16 | 5/16 | 1/2 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-D-T | |
| BUH-0251-D | 7/16 | 5/16 | 1 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-D | |
| BUH-0251-D-T | 7/16 | 5/16 | 1 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-D-T | |
| BUH-0251X1.5-D | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/16 | 1/4-20 | 28 | — | 9/32 | BUB-200-D | |
| BUH-0251X1.5-D-T | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/8 | 1/4-20 | 28 | — | 9/32 | BUB-200-D-T | |
| BUH-0280-D | 7/16 | 5/16 | 1/2 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-D | |
| BUH-0280-D-T | 7/16 | 5/16 | 1/2 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-D-T | |
| BUH-0281-D | 7/16 | 5/16 | 1 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-D | |
| BUH-0281-D-T | 7/16 | 5/16 | 1 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-D-T | |
| BUH-0281X1.5-D | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/16 | 1/4-28 | 28 | — | 9/32 | BUB-200-D | |
| BUH-0281X1.5-D-T | 7/16 | 5/16 | 1-1/2 | 1/4 | 1/8 | 1/4-28 | 28 | — | 9/32 | BUB-200-D-T | |
| BUH-0310-D | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-D | |
| BUH-0310-D-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-D-T | |
| BUH-0312-D | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-D | |
| BUH-0312-D-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-D-T | |
| BUH-0312X1.5-D | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-18 | 28 | — | 3/8 | BUB-300-D | |
| BUH-0312X1.5-D-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-18 | 28 | — | 3/8 | BUB-300-D-T | |
| BUH-0320-D | 1/2 | 3/8 | 1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-D | |
| BUH-0320-D-T | 1/2 | 3/8 | 1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-D-T | |
| BUH-0321-D | 1/2 | 3/8 | 1 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-D | |
| BUH-0321-D-T | 1/2 | 3/8 | 1 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-D-T | |
| BUH-0321X1.5-D | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/16 | 5/16-24 | 28 | — | 3/8 | BUB-300-D | |
| BUH-0321X1.5-D-T | 1/2 | 3/8 | 1-1/2 | 5/16 | 1/8 | 5/16-24 | 28 | — | 3/8 | BUB-300-D-T | |
| BUH-0370-D | 5/8 | 1/2 | 1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-D | |
| BUH-0370-D-T | 5/8 | 1/2 | 1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-D-T | |
| BUH-0375-D | 5/8 | 1/2 | 1 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-D | |
| BUH-0375-D-T | 5/8 | 1/2 | 1 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-D-T | |
| BUH-0375X1.5-D | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/8 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-D | |
| BUH-0375X1.5-D-T | 5/8 | 1/2 | 1-1/2 | 3/8 | 1/4 | 3/8-16 | 40 | 1/8 | 1/2 | BUB-500-D-T | |
| BUH-0500-D | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-D | |
| BUH-0500-D-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-20 | 40 | 3/16 | 5/8 | BUB-600-D-T | |
| BUH-0510-D | 13/16 | 5/8 | 1 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-D | |
| BUH-0510-D-T | 13/16 | 5/8 | 1 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-D-T | |
| BUH-0515-D | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/8 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-D | |
| BUH-0515-D-T | 13/16 | 5/8 | 1-1/2 | 1/2 | 1/4 | 1/2-13 | 40 | 3/16 | 5/8 | BUB-600-D-T | |
| BUH-0620-D | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-D | |
| BUH-0620-D-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-D-T | |
| BUH-0620X2-D | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-D | |
| BUH-0620X2-D-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-18 | 34 | 1/4 | 3/4 | BUB-700-D-T | |
| BUH-0625-D | 15/16 | 11/16 | 1 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-D | |
| BUH-0625-D-T | 15/16 | 11/16 | 1 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-D-T | |
| BUH-0625X2-D | 15/16 | 11/16 | 2 | 5/8 | 1/8 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-D | |
| BUH-0625X2-D-T | 15/16 | 11/16 | 2 | 5/8 | 1/4 | 5/8-11 | 34 | 1/4 | 3/4 | BUB-700-D-T |
