Base Design Swivots® Gripper Assembly - SofTop® Urethane Surface Cone - Inch (BBU-FC-UR)
BBU-100-FC-35UR

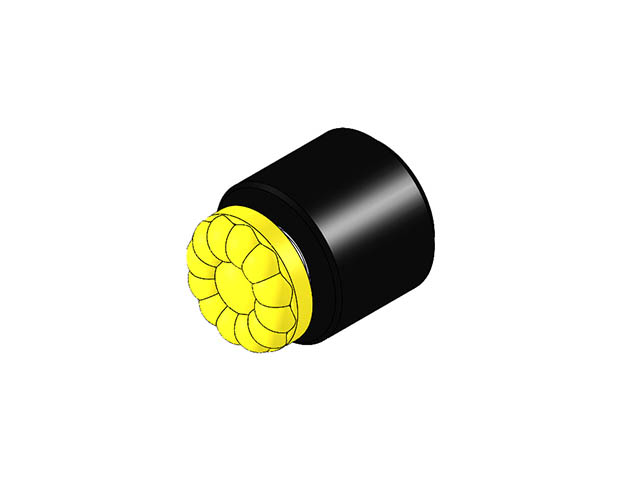

Base Design Swivot - 3/8 Dia X 5/16 - Sof-Top - 35 Dur

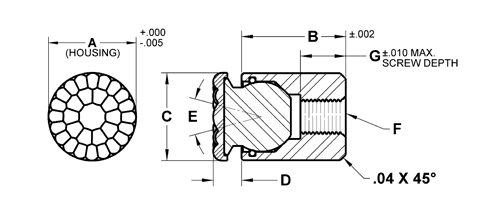

| Part # | A Dia in | B Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Tap | G Thread Dpeth in | Ball Dia in | Durometer Shore A | Urethane Thickness in | Load Compression lbs | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BBU-100-FC-35UR | 3/8 | 5/16 | .315 | .143 | 28 | #4-40 | 1/4 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BBU-100-FC-60UR | 3/8 | 5/16 | .315 | .143 | 28 | #4-40 | 1/4 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BBU-100-FC-80UR | 3/8 | 5/16 | .315 | .143 | 28 | #4-40 | 1/4 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BBU-105-FC-35UR | 3/8 | 7/16 | .315 | .143 | 28 | #4-40 | 5/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BBU-105-FC-60UR | 3/8 | 7/16 | .315 | .143 | 28 | #4-40 | 5/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BBU-105-FC-80UR | 3/8 | 7/16 | .315 | .143 | 28 | #4-40 | 5/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BBU-107-FC-35UR | 3/8 | 11/16 | .315 | .143 | 28 | #4-40 | 5/16 | 3/16 | 35 | .08 | 8 | BUB-187-FC-35UR | |
| BBU-107-FC-60UR | 3/8 | 11/16 | .315 | .143 | 28 | #4-40 | 5/16 | 3/16 | 60 | .08 | 20 | BUB-187-FC-60UR | |
| BBU-107-FC-80UR | 3/8 | 11/16 | .315 | .143 | 28 | #4-40 | 5/16 | 3/16 | 80 | .08 | 40 | BUB-187-FC-80UR | |
| BBU-200-FC-35UR | 7/16 | 3/8 | .394 | .174 | 28 | #8-32 | 5/32 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BBU-200-FC-60UR | 7/16 | 3/8 | .394 | .174 | 28 | #8-32 | 5/32 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BBU-200-FC-80UR | 7/16 | 3/8 | .394 | .174 | 28 | #8-32 | 5/32 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BBU-201-FC-35UR | 7/16 | 15/16 | .394 | .174 | 28 | #8-32 | 1/2 | 9/32 | 35 | .08 | 8 | BUB-200-FC-35UR | |
| BBU-201-FC-60UR | 7/16 | 15/16 | .394 | .174 | 28 | #8-32 | 1/2 | 9/32 | 60 | .08 | 25 | BUB-200-FC-60UR | |
| BBU-201-FC-80UR | 7/16 | 15/16 | .394 | .174 | 28 | #8-32 | 1/2 | 9/32 | 80 | .08 | 65 | BUB-200-FC-80UR | |
| BBU-300-FC-35UR | 1/2 | 1/2 | .512 | .205 | 28 | #10-32 | 5/32 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BBU-300-FC-60UR | 1/2 | 1/2 | .512 | .205 | 28 | #10-32 | 5/32 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BBU-300-FC-80UR | 1/2 | 1/2 | .512 | .205 | 28 | #10-32 | 5/32 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BBU-301-FC-35UR | 1/2 | 1 | .512 | .205 | 28 | #10-32 | 5/8 | 3/8 | 35 | .08 | 40 | BUB-300-FC-35UR | |
| BBU-301-FC-60UR | 1/2 | 1 | .512 | .205 | 28 | #10-32 | 5/8 | 3/8 | 60 | .08 | 75 | BUB-300-FC-60UR | |
| BBU-301-FC-80UR | 1/2 | 1 | .512 | .205 | 28 | #10-32 | 5/8 | 3/8 | 80 | .08 | 150 | BUB-300-FC-80UR | |
| BBU-500-FC-35UR | 5/8 | 3/4 | .630 | .205 | 28 | 1/4-28 | 1/4 | 1/2 | 35 | .08 | 55 | BUB-500-FC-35UR | |
| BBU-500-FC-60UR | 5/8 | 3/4 | .630 | .205 | 28 | 1/4-28 | 1/4 | 1/2 | 60 | .08 | 140 | BUB-500-FC-60UR | |
| BBU-500-FC-80UR | 5/8 | 3/4 | .630 | .205 | 28 | 1/4-28 | 1/4 | 1/2 | 80 | .08 | 215 | BUB-500-FC-80UR | |
| BBU-600-FC-35UR | 13/16 | 7/8 | .827 | .236 | 32 | 5/16-24 | 11/32 | 5/8 | 35 | .08 | 150 | BUB-600-FC-35UR | |
| BBU-600-FC-60UR | 13/16 | 7/8 | .827 | .236 | 32 | 5/16-24 | 11/32 | 5/8 | 60 | .08 | 340 | BUB-600-FC-60UR | |
| BBU-600-FC-80UR | 13/16 | 7/8 | .827 | .236 | 32 | 5/16-24 | 11/32 | 5/8 | 80 | .08 | 525 | BUB-600-FC-80UR | |
| BBU-700-FC-35UR | 15/16 | 7/8 | .906 | .236 | 32 | 3/8-24 | 9/32 | 3/4 | 35 | .08 | 225 | BUB-700-FC-35UR | |
| BBU-700-FC-60UR | 15/16 | 7/8 | .906 | .236 | 32 | 3/8-24 | 9/32 | 3/4 | 60 | .08 | 400 | BUB-700-FC-60UR | |
| BBU-700-FC-80UR | 15/16 | 7/8 | .906 | .236 | 32 | 3/8-24 | 9/32 | 3/4 | 80 | .08 | 600 | BUB-700-FC-80UR |
