Thrust Screws - Headed Design - Flat Stainless Steel Cone - Inch (TSH-FC)
TSH-0250-FC

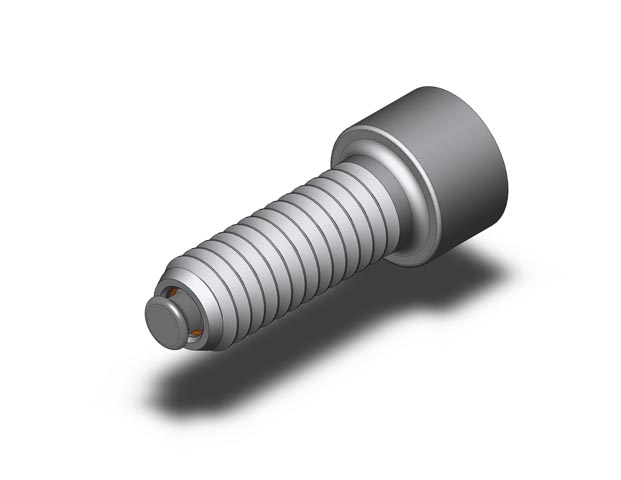

Headed Thrust Screw - Flat Cone SS - 1/4-20 X 3/4 in

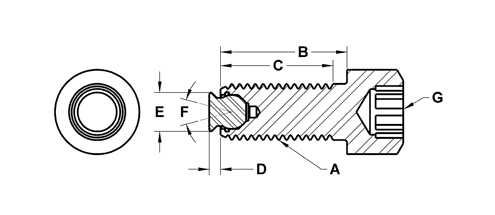

| Part # | A Thread | B Shank Length in | C Thread Length in | D Standoff in | E Contact Dia in | F Swivel Degrees | G Int Hex in | Ball Dia | Ball Only Part No. | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| TSH-0231-FC | 3/8-24 | 1 | 1 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0231X1.5-FC | 3/8-24 | 1-1/2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0231X2.5-FC | 3/8-24 | 2-1/2 | 1-3/8 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0231X2-FC | 3/8-24 | 2 | 1-3/8 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0250-FC | 1/4-20 | 3/4 | 3/4 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSH-0251-FC | 1/4-20 | 1 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSH-0251X1.5-FC | 1/4-20 | 1-1/2 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSH-0280-FC | 1/4-28 | 3/4 | 3/4 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSH-0281-FC | 1/4-28 | 1 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSH-0281X1.5-FC | 1/4-28 | 1-1/2 | 1 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSH-0310-FC | 5/16-18 | 3/4 | 3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0312-FC | 5/16-18 | 1 | 1 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0312X1.25-FC | 5/16-18 | 1-1/4 | 1-1/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0312X1.75-FC | 5/16-18 | 1-3/4 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0312X2-FC | 5/16-18 | 2 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0320-FC | 5/16-24 | 3/4 | 3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0321-FC | 5/16-24 | 1 | 1 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0321X1.25-FC | 5/16-24 | 1-1/4 | 1-1/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0321X1.75-FC | 5/16-24 | 1-3/4 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0321X2-FC | 5/16-24 | 2 | 1-1/8 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSH-0375-FC | 3/8-16 | 1 | 1 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0375X1.5-FC | 3/8-16 | 1-1/2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0375X2.5-FC | 3/8-16 | 2-1/2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0375X2-FC | 3/8-16 | 2 | 1-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSH-0500X1.25-FC | 1/2-20 | 1-1/4 | 1-1/4 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0500X1.5-FC | 1/2-20 | 1-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0500X2.5-FC | 1/2-20 | 2-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0500X2-FC | 1/2-20 | 2 | 2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0500X3-FC | 1/2-20 | 3 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0510X1.25-FC | 1/2-13 | 1-1/4 | 1-1/4 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0510X1.5-FC | 1/2-13 | 1-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0510X2.5-FC | 1/2-13 | 2-1/2 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0510X2-FC | 1/2-13 | 2 | 2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0510X3-FC | 1/2-13 | 3 | 1-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSH-0620-FC | 5/8-18 | 1-1/2 | 1-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0620X2.5-FC | 5/8-18 | 2-1/2 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0620X2-FC | 5/8-18 | 2 | 2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0620X3-FC | 5/8-18 | 3 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0625-FC | 5/8-11 | 1-1/2 | 1-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0625X2.5-FC | 5/8-11 | 2-1/2 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0625X2-FC | 5/8-11 | 2 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0625X3-FC | 5/8-11 | 3 | 1-3/4 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSH-0750X2.5-FC | 3/4-16 | 2-1/2 | 2-1/2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSH-0750X2-FC | 3/4-16 | 2 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSH-0750X3-FC | 3/4-16 | 3 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSH-0755X2.5-FC | 3/4-10 | 2-1/2 | 2-1/2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSH-0755X2-FC | 3/4-10 | 2 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSH-0755X3-FC | 3/4-10 | 3 | 2 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSH-1108X2-FC | 1-8 | 2 | 2 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-FC | 14,757 | |
| TSH-1108X3-FC | 1-8 | 3 | 3 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-FC | 14,757 | |
| TSH-1108X4-FC | 1-8 | 4 | 2-1/2 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-FC | 14,757 | |
| TSH-1114X2-FC | 1-14 | 2 | 2 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-FC | 17,210 | |
| TSH-1114X3-FC | 1-14 | 3 | 3 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-FC | 17,210 | |
| TSH-1114X4-FC | 1-14 | 4 | 2-1/2 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-FC | 17,210 | |
| TSHF-0231X2.5-FC | 3/8-24 | 2-1/2 | 2-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSHF-0231X2-FC | 3/8-24 | 2 | 2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSHF-0251X1.5-FC | 1/4-20 | 1-1/2 | 1-1/2 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSHF-0281X1.5-FC | 1/4-28 | 1-1/2 | 1-1/2 | 1/16 | 9/64 | 30 | 3/16 | 1/8 | BUB-125-FC | — | |
| TSHF-0312X1.75-FC | 5/16-18 | 1-3/4 | 1-3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSHF-0312X2-FC | 5/16-18 | 2 | 2 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSHF-0321X1.75-FC | 5/16-24 | 1-3/4 | 1-3/4 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSHF-0321X2-FC | 5/16-24 | 2 | 2 | 1/16 | 13/64 | 30 | 1/4 | 5/32 | BUB-156-FC | — | |
| TSHF-0375X2.5-FC | 3/8-16 | 2-1/2 | 2-1/2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSHF-0375X2-FC | 3/8-16 | 2 | 2 | 3/32 | 1/4 | 28 | 5/16 | 3/16 | BUB-187-FC | 1,763 | |
| TSHF-0500X2.5-FC | 1/2-20 | 2-1/2 | 2-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSHF-0500X3-FC | 1/2-20 | 3 | 3 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSHF-0510X2.5-FC | 1/2-13 | 2-1/2 | 2-1/2 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSHF-0510X3-FC | 1/2-13 | 3 | 3 | 3/32 | 11/32 | 28 | 3/8 | 9/32 | BUB-200-FC | 4,527 | |
| TSHF-0620X2.5-FC | 5/8-18 | 2-1/2 | 2-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSHF-0620X3-FC | 5/8-18 | 3 | 3 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSHF-0625X2.5-FC | 5/8-11 | 2-1/2 | 2-1/2 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSHF-0625X3-FC | 5/8-11 | 3 | 3 | 1/8 | 7/16 | 28 | 1/2 | 3/8 | BUB-300-FC | 6,131 | |
| TSHF-0750X3-FC | 3/4-16 | 3 | 3 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSHF-0755X3-FC | 3/4-10 | 3 | 3 | 1/8 | 33/64 | 28 | 5/8 | 1/2 | BUB-500-FC | 8,150 | |
| TSHF-1108X4-FC | 1-8 | 4 | 4 | 5/32 | 11/16 | 24 | 3/4 | 5/8 | BUB-600-FC | 14,757 | |
| TSHF-1114X4-FC | 1-14 | 4 | 4 | 5/32 | 49/64 | 32 | 3/4 | 3/4 | BUB-700-FC | 17,210 |
