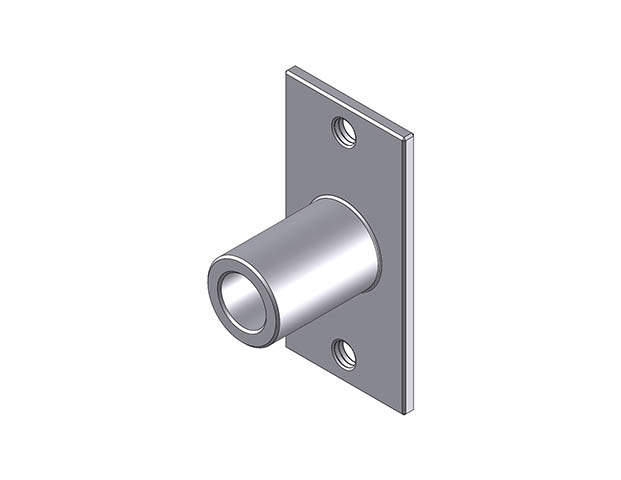

Quick Release Pin Flanged Receptacle - Rectangular - Inch (REFR)
REFR-187
Ball Lock Pin Receptacle - Rectangle - 3/16 in

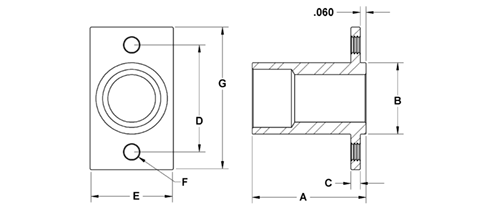

| Part # | Use With Pin Diameter in | Flange Style in | A in | B in | C in | D in | E in | F Thread | G in | Grip Length Reduction in |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| REFR-187 | 3/16 | Rectangle | 0.650 | 0.375 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.375 | |
| REFR-250 | 1/4 | Rectangle | 0.650 | 0.375 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.375 | |
| REFR-312 | 5/16 | Rectangle | 0.783 | 0.469 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.500 | |
| REFR-375 | 3/8 | Rectangle | 0.913 | 0.562 | 0.060 | 1.000 | 0.625 | 6-32 | 1.250 | 0.562 |
