GRIPSHAPE FINGER BLANKS - G301 - STEEL - SINGLE & DOUBLE - For SMC Series MHZ2, MRHQ, MHQJ
G301.001.004X036X035

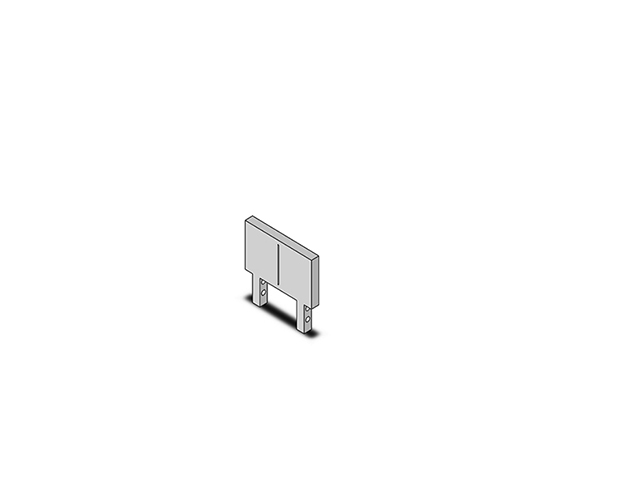

GRIPSHAPE FINGER BLANK - 004X036X035 - UN-CUT PAIR - STEEL
| Part # | Type | For Gripper Module |
||||||
|---|---|---|---|---|---|---|---|---|
| G301.001.004X036X035 | A | 22 | 35 | 36 | 12 | 4 | MHZ2-6 | |
| G301.002.005X040X045 | A | 33 | 45 | 40 | 16 | 5 | MHZ2-10 / MRHQ10C / MHQJ2-10C | |
| G301.003.008X050X045 | A | 30 | 45 | 50 | 20 | 8 | MHZ2-16 / MRHQ16C / MHQJ2-16C | |
| G301.004.010X070X070 | A | 50 | 70 | 70 | 22 | 10 | MHZ2-20 / MRHQ20C / MHQJ2-20C | |
| G301.005.012X086X080 | A | 55 | 80 | 86 | 26 | 12 | MHZ2-25 / MRHQ25C / MHQJ2-25C | |
| G301.006.015X124X095 | A | 66 | 95 | 124 | 52 | 15 | MHZ2-32 | |
| G301.007.018X130X115 | A | 79.5 | 115 | 130 | 46 | 18 | MHZ2-40 | |
| G301S.001.004X016X035 | B | 22 | 35 | 16 | 4 | 4 | MHZ2-6 | |
| G301S.002.005X018X045 | B | 33 | 45 | 18 | 6 | 5 | MHZ2-10 / MRHQ10C / MHQJ2-10C | |
| G301S.003.008X023X045 | B | 30 | 45 | 23 | 8 | 8 | MHZ2-16 / MRHQ16C / MHQJ2-16C | |
| G301S.004.010X033X070 | B | 50 | 70 | 33 | 9 | 10 | MHZ2-20 / MRHQ20C / MHQJ2-20C | |
| G301S.005.012X041X080 | B | 55 | 80 | 41 | 11 | 12 | MHZ2-25 / MRHQ25C / MHQJ2-25C | |
| G301S.006.015X060X095 | B | 60 | 95 | 60 | 24 | 15 | MHZ2-32 | |
| G301S.007.018X063X115 | B | 79.5 | 115 | 63 | 21 | 18 | MHZ2-40 |
