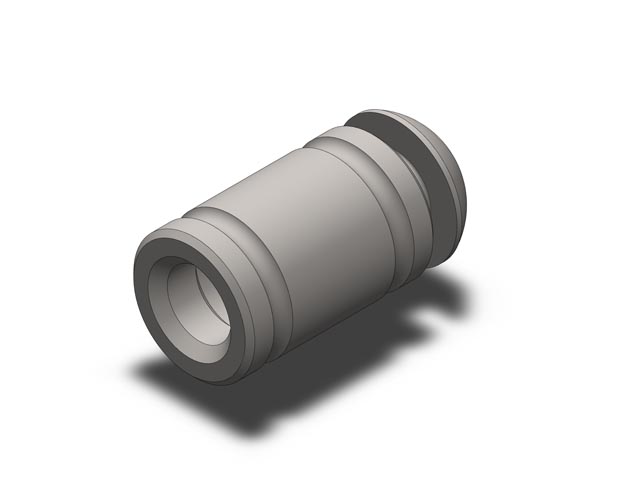

Quick Release Pin End Cap - Tapped - Metric (MRCT)
MRCT-05
Ball Lock Pin End Caps - Tapped End - 5 mm

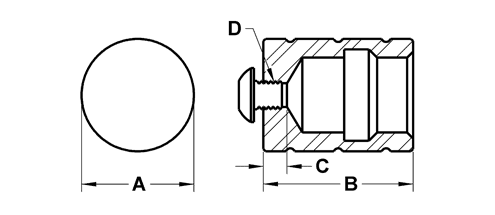

| Part # | Use With Pin Diameter mm | A Dia mm | B Length mm | C Screw Depth mm | D Thread | Grip Length Reduction |
|
|---|---|---|---|---|---|---|---|
| MRCT-05 | 5mm | 9.53 | 14.73 | 3 | M5 | 3 | |
| MRCT-06 | 6mm | 9.53 | 14.73 | 3 | M5 | 3 | |
| MRCT-08 | 8mm | 12.70 | 15.88 | 3 | M5 | 3 | |
| MRCT-10 | 10mm | 14.29 | 18.54 | 4 | M5 | 5 | |
| MRCT-12 | 12mm | 19.05 | 25.40 | 4 | M5 | 6 | |
| MRCT-16 | 16mm | 25.40 | 31.75 | 5 | M6 | 6 |
