Quick Release Pin End Cap - Tapped - Inch (RCT)
RCT-187
Ball Lock Pin End Caps - Tapped End - 3/16 in

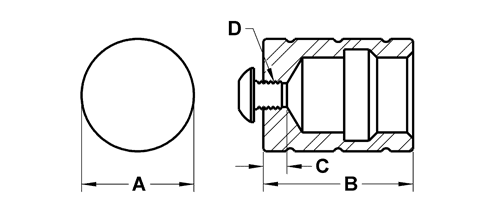

| Part # | Use With Pin Dia in | A Dia in | B Length in | C Screw Depth in | D Thread | Grip Length Reduction in |
|
|---|---|---|---|---|---|---|---|
| RCT-187 | 3/16 | 0.375 | 0.580 | 0.12 | 10-32 | 0.125 | |
| RCT-250 | 1/4 | 0.375 | 0.580 | 0.12 | 10-32 | 0.125 | |
| RCT-312 | 5/16 | 0.500 | 0.625 | 0.12 | 10-32 | 0.125 | |
| RCT-375 | 3/8 | 0.563 | 0.730 | 0.18 | 10-32 | 0.187 | |
| RCT-500 | 1/2 | 0.750 | 1.000 | 0.18 | 10-32 | 0.250 | |
| RCT-625 | 5/8 | 1.000 | 1.250 | 0.18 | 1/4-28 | 0.250 |
