Quick Release Pin Receptacle - Threaded Body - Metric (MTHFR)
MTHFR-05

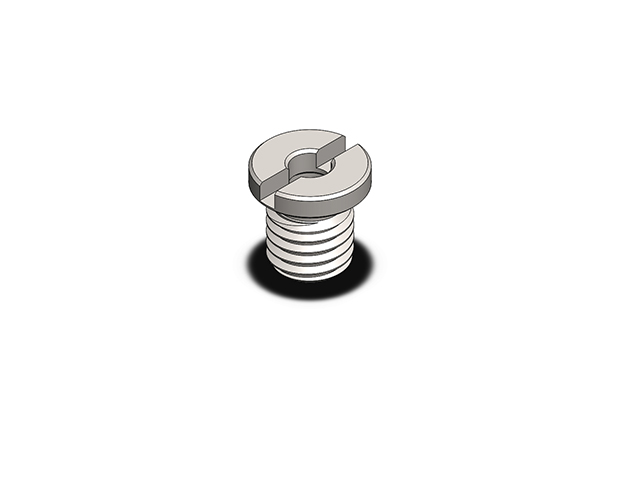

BALL LOCK PIN RECEPTACLES - THREADED BODY - 5 MM
| Part # | For Use With Pin Diameter mm | T Thread | D mm | D1 mm | L mm | L1 mm | L2 mm | W mm | Grip Length Reduction mm |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MTHFR-05 | 5 | M10x1.50 | 5 | 14 | 14 | 3 | 2.388 | 2.4 | 3 | |
| MTHFR-06 | 6 | M12x1.75 | 6 | 16 | 14 | 3 | 2.388 | 2.4 | 3 | |
| MTHFR-08 | 8 | M14x2.00 | 8 | 18 | 16 | 3 | 2.388 | 2.8 | 3 | |
| MTHFR-10 | 10 | M18x2.50 | 10 | 22 | 18 | 3 | 2.388 | 2.8 | 5 | |
| MTHFR-12 | 12 | M20x1.50 | 12 | 24 | 19 | 3 | 2.388 | 2.8 | 6 | |
| MTHFR-16 | 16 | M24x2.00 | 16 | 28 | 24 | 3 | 2.388 | 2.8 | 6 |
