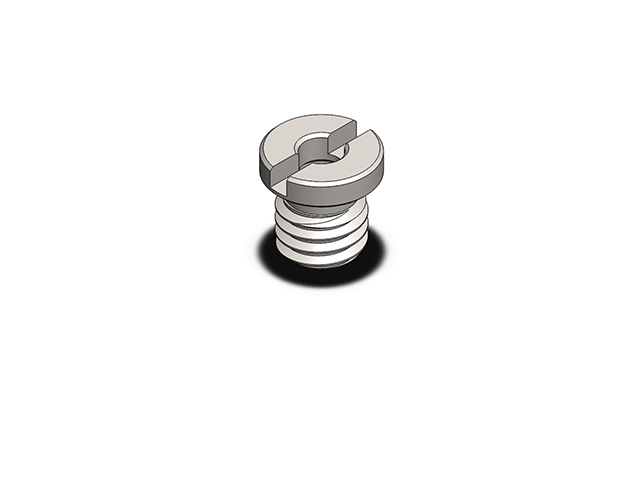

Quick Release Pin Receptacle - Threaded Body - Inch (THFR)
THFR-187
BALL LOCK PIN RECEPTACLES - THREADED BODY - 3/16 IN
| Part # | For Use With Pin Diameter in | T Thread | D in | D1 in | L in | L1 in | L2 in | W in | Grip Length Reduction in |
|
|---|---|---|---|---|---|---|---|---|---|---|
| THFR-187 | 3/16 | 3/8-16 | .190 | .500 | .500 | .125 | .094 | .094 | .125 | |
| THFR-250 | 1/4 | 1/2-13 | .250 | .625 | .500 | .125 | .094 | .094 | .125 | |
| THFR-312 | 5/16 | 5/8-11 | .313 | .750 | .625 | .125 | .094 | .109 | .125 | |
| THFR-375 | 3/8 | 5/8-11 | .375 | .750 | .688 | .125 | .094 | .109 | .187 | |
| THFR-500 | 1/2 | 3/4-16 | .500 | .875 | .813 | .125 | .094 | .109 | .250 | |
| THFR-625 | 5/8 | 1-14 | .625 | 1.125 | .938 | .125 | .094 | .109 | .250 |
