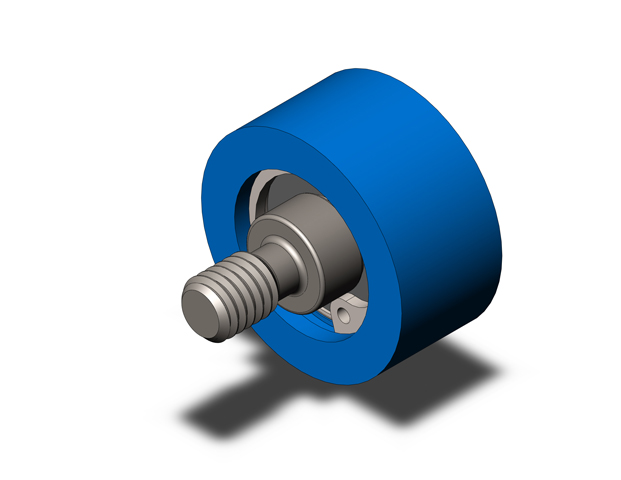

TFN-120603-R3Z-C
Bearing Wheel - Flat - Nylon - Stud Mount - 3/4 in Dia - 3/8 in W - 3/16 in Bore - R3 ZZ Metal Shield Bearing
| Part # | T Thread in | D in | D2 in | L in | W in | W1 in | K in | Wheel Type | Wheel Material | Bearing Type | Bearing Material |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCN-120603-R3R-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-120603-R3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Nylon | Steel | Metal Shield | |
| TCN-120603-SSR3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Nylon | Stainless | Metal Shield | |
| TCN-140604-R4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-140604-R4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Steel | Metal Shield | |
| TCN-140604-SSR4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-140604-SSR4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Stainless | Metal Shield | |
| TCN-160604-R4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-160604-R4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Steel | Metal Shield | |
| TCN-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Nylon | Stainless | Metal Shield | |
| TCN-160704-1602Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Crown | Nylon | Steel | Metal Shield | |
| TCN-160804-1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-180704-1602Z-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Crown | Nylon | Steel | Metal Shield | |
| TCN-180804-1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-200704-1602Z-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Crown | Nylon | Steel | Metal Shield | |
| TCN-200804-1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-200805-1603Z-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Crown | Nylon | Steel | Metal Shield | |
| TCN-200806-1604Z-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Crown | Nylon | Steel | Metal Shield | |
| TCN-200905-1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-200905-SS1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-200906-1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-200906-SS1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-240805-1603Z-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Crown | Nylon | Steel | Metal Shield | |
| TCN-240806-1604Z-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Crown | Nylon | Steel | Metal Shield | |
| TCN-240905-1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-240906-1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-240908-R8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-240908-R8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Nylon | Steel | Metal Shield | |
| TCN-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Nylon | Stainless | Rubber Sealed | |
| TCN-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Nylon | Stainless | Metal Shield | |
| TCN-241008-1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Nylon | Steel | Rubber Sealed | |
| TCN-241008-1616Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Nylon | Steel | Metal Shield | |
| TCN-241008-SS1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Nylon | Stainless | Rubber Sealed | |
| TFN-120603-R3R-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-120603-R3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Nylon | Steel | Metal Shield | |
| TFN-120603-SSR3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Nylon | Stainless | Metal Shield | |
| TFN-140604-R4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-140604-R4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Steel | Metal Shield | |
| TFN-140604-SSR4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-140604-SSR4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Stainless | Metal Shield | |
| TFN-160604-R4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-160604-R4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Steel | Metal Shield | |
| TFN-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Nylon | Stainless | Metal Shield | |
| TFN-160704-1602Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Flat | Nylon | Steel | Metal Shield | |
| TFN-160804-1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-180704-1602Z-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Flat | Nylon | Steel | Metal Shield | |
| TFN-180804-1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-200704-1602Z-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Flat | Nylon | Steel | Metal Shield | |
| TFN-200804-1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-200805-1603Z-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Flat | Nylon | Steel | Metal Shield | |
| TFN-200806-1604Z-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Flat | Nylon | Steel | Metal Shield | |
| TFN-200905-1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-200905-SS1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-200906-1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-200906-SS1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-240805-1603Z-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Flat | Nylon | Steel | Metal Shield | |
| TFN-240806-1604Z-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Flat | Nylon | Steel | Metal Shield | |
| TFN-240905-1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-240906-1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-240908-R8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-240908-R8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Nylon | Steel | Metal Shield | |
| TFN-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Nylon | Stainless | Rubber Sealed | |
| TFN-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Nylon | Stainless | Metal Shield | |
| TFN-241008-1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Nylon | Steel | Rubber Sealed | |
| TFN-241008-1616Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Nylon | Steel | Metal Shield | |
| TFN-241008-SS1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Nylon | Stainless | Rubber Sealed | |
| TRN-160604-R4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-160604-R4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Nylon | Steel | Metal Shield | |
| TRN-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Nylon | Stainless | Metal Shield | |
| TRN-160804-1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-180704-1602Z-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Radial | Nylon | Steel | Metal Shield | |
| TRN-180804-1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-200704-1602Z-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Radial | Nylon | Steel | Metal Shield | |
| TRN-200804-1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-240805-1603Z-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 1/2 | 0.08 | 1/8 | Radial | Nylon | Steel | Metal Shield | |
| TRN-240806-1604Z-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Radial | Nylon | Steel | Metal Shield | |
| TRN-240905-1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 1/8 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-240906-1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-240908-R8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Nylon | Steel | Rubber Sealed | |
| TRN-240908-R8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Nylon | Steel | Metal Shield | |
| TRN-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Nylon | Stainless | Rubber Sealed | |
| TRN-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Nylon | Stainless | Metal Shield |
