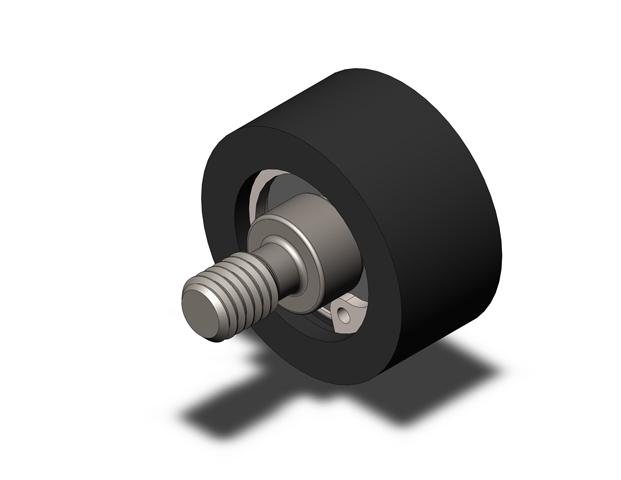

TFP-120603-R3Z-C
Bearing Wheel - Flat - Polyacetal - Stud Mount - 3/4 in Dia - 3/8 in W - 3/16 in Bore - R3 ZZ Metal Shield Bearing

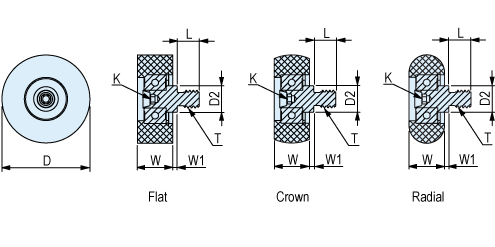

| Part # | T Thread in | D in | D2 in | L in | W in | W1 in | K in | Wheel Type | Wheel Material | Bearing Type | Bearing Material |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCP-120603-R3R-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-120603-R3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-120603-SSR3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-140604-R4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-140604-R4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-140604-SSR4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-140604-SSR4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-160604-R4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-160604-R4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-160704-1602Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-160804-1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-180704-1602Z-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-180804-1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-200704-1602Z-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-200804-1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-200805-1603Z-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-200806-1604Z-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-200905-1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-200905-SS1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-200906-1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-200906-SS1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240805-1603Z-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-240806-1604Z-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-240905-1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240906-1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240908-R8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-240908-R8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TCP-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Crown | Polyacetal | Stainless | Metal Shield | |
| TCP-241008-1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Polyacetal | Steel | Rubber Sealed | |
| TCP-241008-1616Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Polyacetal | Steel | Metal Shield | |
| TCP-241008-SS1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Crown | Polyacetal | Stainless | Rubber Sealed | |
| TFP-120603-R3R-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-120603-R3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-120603-SSR3Z-C | #10-32 | 3/4 | 19/64 | 5/16 | 3/8 | 0.07 | 3/32 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-140604-R4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-140604-R4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-140604-SSR4R-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-140604-SSR4Z-C | #1/4-20 | 0.875 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-160604-R4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-160604-R4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-160704-1602Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-160804-1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-180704-1602Z-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-180804-1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-200704-1602Z-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-200804-1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-200805-1603Z-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-200806-1604Z-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-200905-1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-200905-SS1603R-C | #5/16-18 | 1 -1/4 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-200906-1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-200906-SS1604R-C | #3/8-24 | 1 -1/4 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240805-1603Z-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 1/2 | 0.08 | 5/32 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-240806-1604Z-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-240905-1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 5/32 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240906-1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240908-R8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-240908-R8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TFP-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Flat | Polyacetal | Stainless | Metal Shield | |
| TFP-241008-1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Polyacetal | Steel | Rubber Sealed | |
| TFP-241008-1616Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Polyacetal | Steel | Metal Shield | |
| TFP-241008-SS1616R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 5/8 | 0.06 | 1/4 | Flat | Polyacetal | Stainless | Rubber Sealed | |
| TRP-160604-R4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-160604-R4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-160604-SSR4R-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-160604-SSR4Z-C | #1/4-20 | 1 | 3/8 | 5/16 | 3/8 | 0.07 | 1/8 | Radial | Polyacetal | Stainless | Metal Shield | |
| TRP-160804-1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-160804-SS1602R-C | #1/4-20 | 1 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-180704-1602Z-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-180804-1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-180804-SS1602R-C | #1/4-20 | 1 -1/8 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-200704-1602Z-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 7/16 | 0.06 | 1/8 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-200804-1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-200804-SS1602R-C | #1/4-20 | 1 -1/4 | 3/8 | 5/16 | 1/2 | 0.10 | 1/8 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240805-1603Z-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 1/2 | 0.08 | 1/8 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-240806-1604Z-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 1/2 | 0.08 | 3/16 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-240905-1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 1/8 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-240905-SS1603R-C | #5/16-18 | 1 -1/2 | 1/2 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240906-1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-240906-SS1604R-C | #3/8-24 | 1 -1/2 | 9/16 | 1/2 | 9/16 | 0.08 | 3/16 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240908-R8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Polyacetal | Steel | Rubber Sealed | |
| TRP-240908-R8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Polyacetal | Steel | Metal Shield | |
| TRP-240908-SSR8R-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Polyacetal | Stainless | Rubber Sealed | |
| TRP-240908-SSR8Z-C | #1/2-13 | 1 -1/2 | 11/16 | 5/8 | 9/16 | 0.06 | 1/4 | Radial | Polyacetal | Stainless | Metal Shield |
