Jaw Sets For TG GripSert Inserts
TGJ-06
Jaw Set - TriGrip Workholding Inserts System - Retrofit Kurt 6''

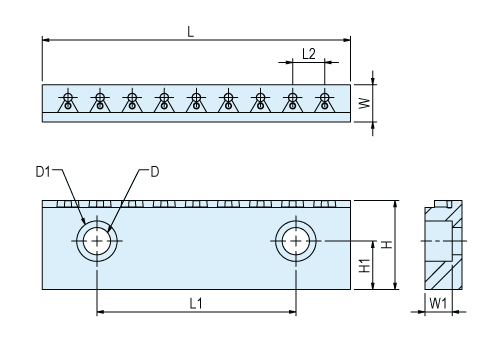

| Part # | D mm | D1 mm | L mm | L1 mm | L2 mm | W mm | W1 mm | H mm | H1 mm |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TGJ-06 | 13.5 | 20.0 | 152.4 | 98.4 | 15.875 | 18.4 | 13.5 | 44.1 | 23.6 |
Jaw Sets For TG GripSert Inserts
| Part # | D mm | D1 mm | L mm | L1 mm | L2 mm | W mm | W1 mm | H mm | H1 mm |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TGJ-06 | 13.5 | 20.0 | 152.4 | 98.4 | 15.875 | 18.4 | 13.5 | 44.1 | 23.6 |
