Gripper Pads - Squares - Aluminum Plate

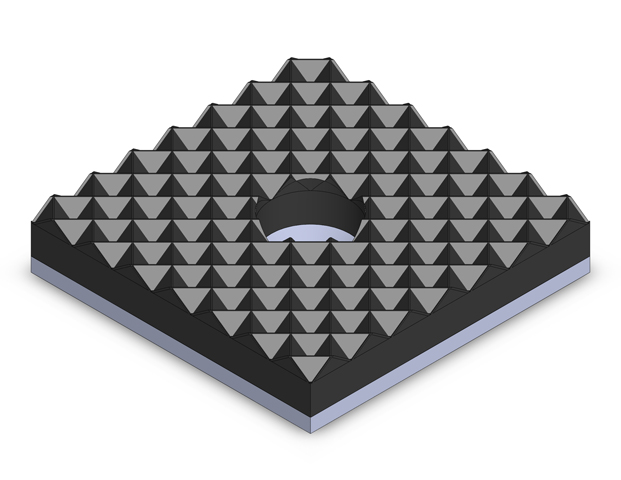

GP-124H
Aluminum Back - Coarse Hatch - 1-1/4 X 1-1/4 W/ 1/4 In Pad
| Part # | Plate | Surface | D For Screw | L in | L1 in | W in | W1 in | H in | H1 in | Mounting Prep |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| GP-124F | Aluminum | Fine Hatch | #8-32 | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/4 | 1/16 | C'bore | |
| GP-124H | Aluminum | Hatch | #8-32 or M4 | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/4 | 1/16 | C'bore | |
| GP-124S | Aluminum | Smooth | #8-32 | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/4 | 1/16 | C'bore | |
| GP-128F | Aluminum | Fine Hatch | #8-32 | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/2 | 1/16 | C'bore | |
| GP-128H | Aluminum | Hatch | #8-32 | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/2 | 1/16 | C'bore | |
| GP-128S | Aluminum | Smooth | #8-32 | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/2 | 1/16 | C'bore | |
| GPA-124F | Aluminum w/ Adhesive Backing | Fine Hatch | - | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/4 | 1/16 | - | |
| GPA-124H | Aluminum w/ Adhesive Backing | Hatch | - | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/4 | 1/16 | - | |
| GPA-124S | Aluminum w/ Adhesive Backing | Smooth | - | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/4 | 1/16 | - | |
| GPA-128F | Aluminum w/ Adhesive Backing | Fine Hatch | - | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/2 | 1/16 | - | |
| GPA-128H | Aluminum w/ Adhesive Backing | Hatch | - | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/2 | 1/16 | - | |
| GPA-128S | Aluminum w/ Adhesive Backing | Smooth | - | 1-1/4 | 5/8 | 1-1/4 | 5/8 | 1/2 | 1/16 | - |
