Gripper Pads - Strips - Aluminum Plate

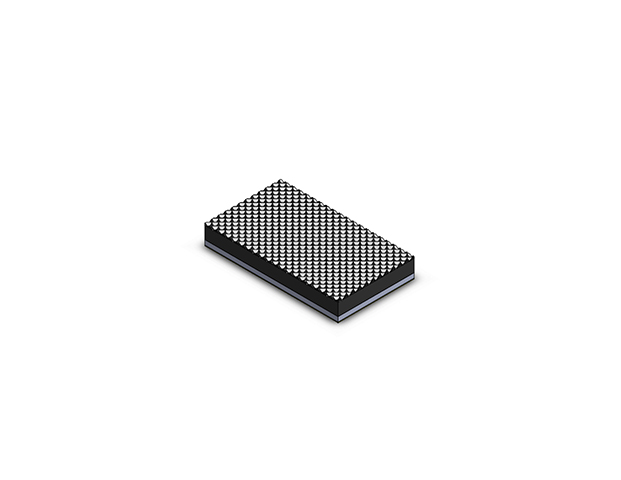

GPA-1714F
Adhesive Back - Fine Hatch - 1-3/4 X 1 - 1/4 In Pad
| Part # | Type | Plate | Surface | D For BHCS in | L in | L1 in | W in | W1 in | H in | H1 in |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| GP-1714F | C | Aluminum | Fine Hatch | #8 or M4 | 1-3/4 | 1 | 1 | 1/2 | 1/4 | 1/16 | |
| GP-1714H | C | Aluminum | Hatch | #8 or M4 | 1-3/4 | 1 | 1 | 1/2 | 1/4 | 1/16 | |
| GP-1714S | C | Aluminum | Smooth | #8 or M4 | 1-3/4 | 1 | 1 | 1/2 | 1/4 | 1/16 | |
| GP-1718F | C | Aluminum | Fine Hatch | #8 or M4 | 1-3/4 | 1 | 1 | 1/2 | 1/2 | 1/16 | |
| GP-1718H | C | Aluminum | Hatch | #8 or M4 | 1-3/4 | 1 | 1 | 1/2 | 1/2 | 1/16 | |
| GP-1718S | C | Aluminum | Smooth | #8 or M4 | 1-3/4 | 1 | 1 | 1/2 | 1/2 | 1/16 | |
| GP-40104F | C | Aluminum | Fine Hatch | #8 or M4 | 2-1/2 | 1-1/2 | 5/8 | 5/16 | 1/4 | 1/16 | |
| GP-40104H | C | Aluminum | Hatch | #8 or M4 | 2-1/2 | 1-1/2 | 5/8 | 5/16 | 1/4 | 1/16 | |
| GP-40104S | C | Aluminum | Smooth | #8 or M4 | 2-1/2 | 1-1/2 | 5/8 | 5/16 | 1/4 | 1/16 | |
| GP-40108F | C | Aluminum | Fine Hatch | #8 or M4 | 2-1/2 | 1-1/2 | 5/8 | 5/16 | 1/2 | 1/16 | |
| GP-40108H | C | Aluminum | Hatch | #8 or M4 | 2-1/2 | 1-1/2 | 5/8 | 5/16 | 1/2 | 1/16 | |
| GP-40108S | C | Aluminum | Smooth | #8 or M4 | 2-1/2 | 1-1/2 | 5/8 | 5/16 | 1/2 | 1/16 | |
| GP-604F | A | Aluminum | Fine Hatch | - | 6 | - | 1-1/4 | - | 1/4 | 1/16 | |
| GP-604H | A | Aluminum | Hatch | - | 6 | - | 1-1/4 | - | 1/4 | 1/16 | |
| GP-604S | A | Aluminum | Smooth | - | 6 | - | 1-1/4 | - | 1/4 | 1/16 | |
| GP-608F | A | Aluminum | Fine Hatch | - | 6 | - | 1-1/4 | - | 1/2 | 1/16 | |
| GP-608H | A | Aluminum | Hatch | - | 6 | - | 1-1/4 | - | 1/2 | 1/16 | |
| GP-608S | A | Aluminum | Smooth | - | 6 | - | 1-1/4 | - | 1/2 | 1/16 | |
| GPA-1714F | B | Aluminum w/ Adhesive Backing | Fine Hatch | - | 1-3/4 | - | 1 | - | 1/4 | 1/16 | |
| GPA-1714H | B | Aluminum w/ Adhesive Backing | Hatch | - | 1-3/4 | - | 1 | - | 1/4 | 1/16 | |
| GPA-1714S | B | Aluminum w/ Adhesive Backing | Smooth | - | 1-3/4 | - | 1 | - | 1/4 | 1/16 | |
| GPA-1718F | B | Aluminum w/ Adhesive Backing | Fine Hatch | - | 1-3/4 | - | 1 | - | 1/2 | 1/16 | |
| GPA-1718H | B | Aluminum w/ Adhesive Backing | Hatch | - | 1-3/4 | - | 1 | - | 1/2 | 1/16 | |
| GPA-1718S | B | Aluminum w/ Adhesive Backing | Smooth | - | 1-3/4 | - | 1 | - | 1/2 | 1/16 | |
| GPA-40104F | B | Aluminum w/ Adhesive Backing | Fine Hatch | - | 2-1/2 | - | 5/8 | - | 1/4 | 1/16 | |
| GPA-40104H | B | Aluminum w/ Adhesive Backing | Hatch | - | 2-1/2 | - | 5/8 | - | 1/4 | 1/16 | |
| GPA-40104S | B | Aluminum w/ Adhesive Backing | Smooth | - | 2-1/2 | - | 5/8 | - | 1/4 | 1/16 | |
| GPA-40108F | B | Aluminum w/ Adhesive Backing | Fine Hatch | - | 2-1/2 | - | 5/8 | - | 1/2 | 1/16 | |
| GPA-40108H | B | Aluminum w/ Adhesive Backing | Hatch | - | 2-1/2 | - | 5/8 | - | 1/2 | 1/16 | |
| GPA-40108S | B | Aluminum w/ Adhesive Backing | Smooth | - | 2-1/2 | - | 5/8 | - | 1/2 | 1/16 | |
| GPA-604F | B | Aluminum w/ Adhesive Backing | Fine Hatch | - | 6 | - | 1-1/4 | - | 1/4 | 1/16 | |
| GPA-604H | B | Aluminum w/ Adhesive Backing | Hatch | - | 6 | - | 1-1/4 | - | 1/4 | 1/16 | |
| GPA-604S | B | Aluminum w/ Adhesive Backing | Smooth | - | 6 | - | 1-1/4 | - | 1/4 | 1/16 | |
| GPA-608F | B | Aluminum w/ Adhesive Backing | Fine Hatch | - | 6 | - | 1-1/4 | - | 1/2 | 1/16 | |
| GPA-608H | B | Aluminum w/ Adhesive Backing | Hatch | - | 6 | - | 1-1/4 | - | 1/2 | 1/16 | |
| GPA-608S | B | Aluminum w/ Adhesive Backing | Smooth | - | 6 | - | 1-1/4 | - | 1/2 | 1/16 |
