Detent Pin - Ring Handle - Steel (DAS)
DAS-18-050

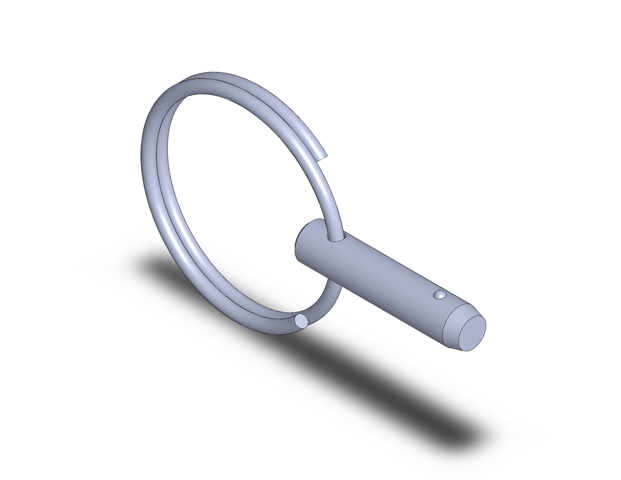

Detent Pin - Ring Handle - Steel - 3/16 in Dia X 0.50 in
| Part # | D in | D1 in | L - Grip Length in | L1 in | L2 in | W in | V Degrees | Pull-Out Strength | Min. Single Shear Strength |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DAS-100-200 | 1 | 1.5 | 2 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-250 | 1 | 1.5 | 2.5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-300 | 1 | 1.5 | 3 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-350 | 1 | 1.5 | 3.5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-400 | 1 | 1.5 | 4 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-450 | 1 | 1.5 | 4.5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-500 | 1 | 1.5 | 5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-550 | 1 | 1.5 | 5.5 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-100-600 | 1 | 1.5 | 6 | 0.500 | 1.250 | 1.140 | 15 | 35 - 40 | 70,190 | |
| DAS-18-050 | 3/16 | 1.00 | 0.50 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-080 | 3/16 | 1.00 | 0.80 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-100 | 3/16 | 1.00 | 1.00 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-130 | 3/16 | 1.00 | 1.30 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-150 | 3/16 | 1.00 | 1.50 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-200 | 3/16 | 1.00 | 2.00 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-250 | 3/16 | 1.00 | 2.5 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-18-300 | 3/16 | 1.00 | 3 | 0.187 | 0.200 | 0.204 | 15 | 4 - 5 | 2,420 | |
| DAS-25-050 | 1/4 | 1.00 | 0.5 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-080 | 1/4 | 1.00 | 0.8 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-100 | 1/4 | 1.00 | 1 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-130 | 1/4 | 1.00 | 1.3 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-150 | 1/4 | 1.00 | 1.5 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-200 | 1/4 | 1.00 | 2 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-250 | 1/4 | 1.00 | 2.5 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-25-300 | 1/4 | 1.00 | 3 | 0.220 | 0.312 | 0.286 | 15 | 5 - 6 | 4,320 | |
| DAS-31-080 | 5/16 | 1.00 | 0.8 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-100 | 5/16 | 1.00 | 1 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-130 | 5/16 | 1.00 | 1.3 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-150 | 5/16 | 1.00 | 1.5 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-200 | 5/16 | 1.00 | 2 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-250 | 5/16 | 1.00 | 2.5 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-300 | 5/16 | 1.00 | 3 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-350 | 5/16 | 1.00 | 3.5 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-31-400 | 5/16 | 1.00 | 4 | 0.250 | 0.375 | 0.358 | 15 | 5 - 6 | 6,730 | |
| DAS-37-080 | 3/8 | 1.00 | 0.8 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-100 | 3/8 | 1.00 | 1 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-130 | 3/8 | 1.00 | 1.3 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-150 | 3/8 | 1.00 | 1.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-200 | 3/8 | 1.00 | 2 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-250 | 3/8 | 1.00 | 2.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-300 | 3/8 | 1.00 | 3 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-350 | 3/8 | 1.00 | 3.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-400 | 3/8 | 1.00 | 4 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-450 | 3/8 | 1.00 | 4.5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-37-500 | 3/8 | 1.00 | 5 | 0.250 | 0.500 | 0.426 | 15 | 8 - 10 | 9,730 | |
| DAS-50-100 | 1/2 | 1.25 | 1 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-130 | 1/2 | 1.25 | 1.3 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-150 | 1/2 | 1.25 | 1.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-200 | 1/2 | 1.25 | 2 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-250 | 1/2 | 1.25 | 2.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-300 | 1/2 | 1.25 | 3 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-350 | 1/2 | 1.25 | 3.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-400 | 1/2 | 1.25 | 4 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-450 | 1/2 | 1.25 | 4.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-500 | 1/2 | 1.25 | 5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-550 | 1/2 | 1.25 | 5.5 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-50-600 | 1/2 | 1.25 | 6 | 0.312 | 0.625 | 0.570 | 15 | 10 - 12 | 17,290 | |
| DAS-62-200 | 5/8 | 1.25 | 2 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-250 | 5/8 | 1.25 | 2.5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-300 | 5/8 | 1.25 | 3 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-350 | 5/8 | 1.25 | 3.5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-400 | 5/8 | 1.25 | 4 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-450 | 5/8 | 1.25 | 4.5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-500 | 5/8 | 1.25 | 5 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-62-600 | 5/8 | 1.25 | 6 | 0.375 | 0.750 | 0.710 | 15 | 14 - 16 | 27,330 | |
| DAS-75-200 | 3/4 | 1.5 | 2 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-250 | 3/4 | 1.5 | 2.5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-300 | 3/4 | 1.5 | 3 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-350 | 3/4 | 1.5 | 3.5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-400 | 3/4 | 1.5 | 4 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-450 | 3/4 | 1.5 | 4.5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-500 | 3/4 | 1.5 | 5 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 | |
| DAS-75-600 | 3/4 | 1.5 | 6 | 0.375 | 0.937 | 0.856 | 15 | 18 - 22 | 39,020 |
