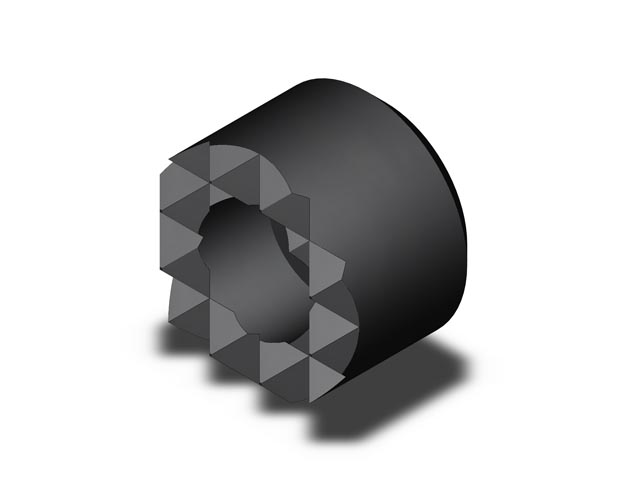

Grippers - Round - Tool Steel - Diamond Serration - C'Bore - Inch (HS-C)

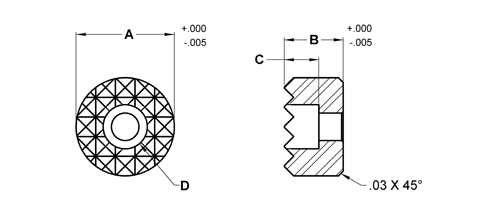

Part # | A OD in | B Height in | C C'Bore in | D C'Bore For in | Tooth Pattern |
|
---|---|---|---|---|---|---|
HS-50-C | 1/2 | 3/8 | 7/32 | #8 SHCS | Fine | |
HS-50-C-EF | 1/2 | 3/8 | 7/32 | #8 SHCS | EF | |
HS-50-C-SF | 1/2 | 3/8 | 7/32 | #8 SHCS | SF | |
HS-53-C | 1/2 | 1/2 | 7/32 | #8 SHCS | Fine | |
HS-53-C-EF | 1/2 | 1/2 | 7/32 | #8 SHCS | EF | |
HS-53-C-SF | 1/2 | 1/2 | 7/32 | #8 SHCS | SF | |
HS-625-C | 5/8 | 1/2 | 7/32 | #8 SHCS | Fine | |
HS-625-C-EF | 5/8 | 1/2 | 7/32 | #8 SHCS | EF | |
HS-62-C | 5/8 | 3/8 | 7/32 | #8 SHCS | Fine | |
HS-62-C-EF | 5/8 | 3/8 | 7/32 | #8 SHCS | EF | |
HS-755-C | 3/4 | 1/2 | 1/4 | #10 SHCS | Fine | |
HS-755-C-EF | 3/4 | 1/2 | 1/4 | #10 SHCS | EF | |
HS-75-C | 3/4 | 3/8 | 1/4 | #10 SHCS | Fine | |
HS-75-C-EF | 3/4 | 3/8 | 1/4 | #10 SHCS | EF | |
HS-765-C | 3/4 | 1/2 | 5/16 | #10 SHCS | Coarse | |
HS-76-C | 3/4 | 3/8 | 1/4 | #10 SHCS | Coarse | |
HS-81-C | 1 | 1/2 | 5/16 | 1/4 SHCS | Coarse | |
HS-82-C | 1 | 1/2 | 5/16 | 1/4 SHCS | Fine | |
HS-82-C-EF | 1 | 1/2 | 5/16 | 1/4 SHCS | EF |
