Stud Mount Urethane Covered Bearing Rollers - Single Bearings - Metric

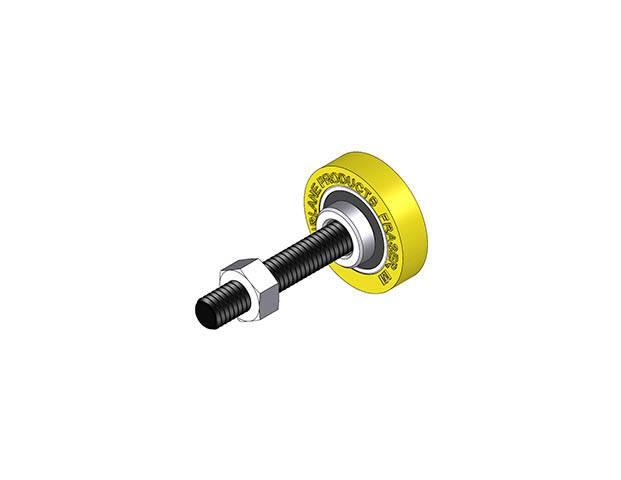

MCB-052005-35UR-C
M5x0.8 2RS x 20mm DIA x 5mm WD
| Part # | A mm | B mm | C Thread | D mm | E mm | F (Ref) mm | G mm | Bearing Number mm | Durometer Shore A |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MCB-052005-35UR-C | 20 | 5 | M5X0.8 | 30 | 3 | 3 | 2.75 | 605-2RS | 35 | |
| MCB-052005-60UR-C | 20 | 5 | M5X0.8 | 30 | 3 | 3 | 2.75 | 605-2RS | 60 | |
| MCB-052005-95UR-C | 20 | 5 | M5X0.8 | 30 | 3 | 3 | 2.75 | 605-2RS | 95 | |
| MCB-062506-35UR-C | 25 | 6 | M6X1.0 | 34 | 3 | 3 | 3.3 | 606-2RS | 35 | |
| MCB-062506-60UR-C | 25 | 6 | M6X1.0 | 34 | 3 | 3 | 3.3 | 606-2RS | 60 | |
| MCB-062506-95UR-C | 25 | 6 | M6X1.0 | 34 | 3 | 3 | 3.3 | 606-2RS | 95 | |
| MCB-083007-35UR-C | 30 | 7 | M8X1.25 | 33 | 3 | 4 | 4.4 | 608-2RS | 35 | |
| MCB-083007-60UR-C | 30 | 7 | M8X1.25 | 33 | 3 | 4 | 4.4 | 608-2RS | 60 | |
| MCB-083007-95UR-C | 30 | 7 | M8X1.25 | 33 | 3 | 4 | 4.4 | 608-2RS | 95 | |
| MCB-103508-35UR-C | 35 | 8 | M10X1.5 | 37 | 3 | 4.5 | 5.5 | 6000-2RS | 35 | |
| MCB-103508-60UR-C | 35 | 8 | M10X1.5 | 37 | 3 | 4.5 | 5.5 | 6000-2RS | 60 | |
| MCB-103508-95UR-C | 35 | 8 | M10X1.5 | 37 | 3 | 4.5 | 5.5 | 6000-2RS | 95 | |
| MCB-104008-35UR-C | 40 | 8 | M10X1.5 | 37 | 3 | 7 | 5.5 | 6000-2RS | 35 | |
| MCB-104008-60UR-C | 40 | 8 | M10X1.5 | 37 | 3 | 7 | 5.5 | 6000-2RS | 60 | |
| MCB-104008-95UR-C | 40 | 8 | M10X1.5 | 37 | 3 | 7 | 5.5 | 6000-2RS | 95 | |
| MCB-124008-35UR-C | 40 | 8 | M12X1.75 | 37 | 3 | 6 | 6.6 | 6001-2RS | 35 | |
| MCB-124008-60UR-C | 40 | 8 | M12X1.75 | 37 | 3 | 6 | 6.6 | 6001-2RS | 60 | |
| MCB-124008-95UR-C | 40 | 8 | M12X1.75 | 37 | 3 | 6 | 6.6 | 6001-2RS | 95 | |
| MCB-125008-35UR-C | 50 | 8 | M12X1.75 | 37 | 3 | 11 | 6.6 | 6001-2RS | 35 | |
| MCB-125008-60UR-C | 50 | 8 | M12X1.75 | 37 | 3 | 11 | 6.6 | 6001-2RS | 60 | |
| MCB-125008-95UR-C | 50 | 8 | M12X1.75 | 37 | 3 | 11 | 6.6 | 6001-2RS | 95 |
